Poly Twin Flexible Conduit

Description/Application

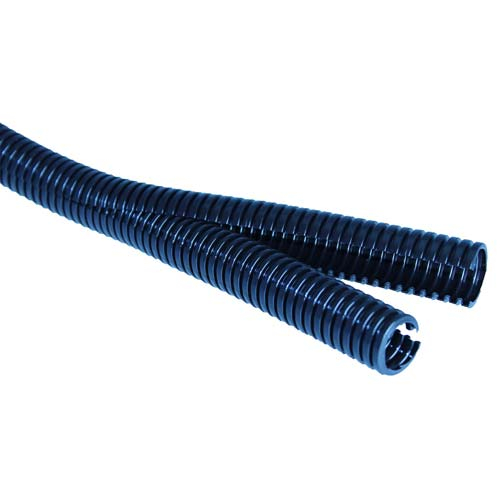

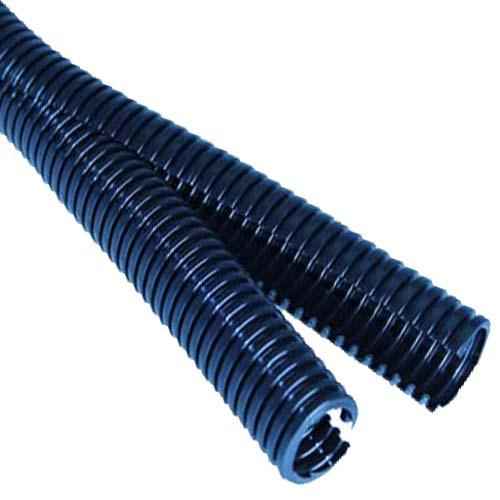

Poly Twin is a two part conduit designed to snap together to make one. Supplied as one length the two sections are easily separated by hand to enable wiring to be inserted into the inner profile. The outer profile is then simply snapped over the inner section to make one closed conduit assembly. This makes a very strong product which gives high levels of abrasion and /or impact resistance. Available in two grades of modified Polypropylene and two grades of PA6 (Nylon) this product is ideally suited for retrofit and repair applications. It can also be used in several areas to provide protection to vehicle wiring, as well as a cable organiser for office or home TV installations. Poly Twin can also be used for many industrial applications including air conditioning units and solar panels mounted on roofs.

Technical Specification

Colour:- Black

Temperature Range:-

PA6 (HB) & (V0)  -40°C to +120°C (Short Periods +150°C)

PP-UV -40°C to +100°C (Short Periods +125°C)

PP-Mod -40°C to +135°C (Short Periods +150°C)

Burning Behaviour:-

PA6 (V0) – UL94 V0 & FMVSS 302 (self-extinguishing)

PP-Mod – UL94 V2 & FMVSS 302 (self-extinguishing)

PA6 (HB) & PP-UV – UL94 HB & FMVSS 302 (<100mm/min)

UV Resistance:- PP-UV is specially stabilized against UV

Other Features:- Can be used with Schlemmer manifolds, conduit fittings and accessories

Part Number Description Nominal Size (NW) Material Dimensions (mm)
I.D. X O.D.
Qty Per Coil (m)
1245210 NW10 Poly Twin PA6 HB Conduit Black 10 PA6 (HB) 8.5 x 13.3 50
1245213 NW13 Poly Twin PA6 HB Conduit Black 13 PA6 (HB) 11.0 x 16.0 50
1245217 NW17 Poly Twin PA6 HB Conduit Black 17 PA6 (HB) 15.5 x 21.5 50
1245222 NW22 Poly Twin PA6 HB Conduit Black 22 PA6 (HB) 19.1 x 25.6 50
1206710 NW10 Poly Twin PA6 V0 Conduit Black 10 PA6 (V0) 8.5 x 13.3 50
1206713 NW13 Poly Twin PA6 V0 Conduit Black 13 PA6 (V0) 11.0 x 16.0 50
1206717 NW17 Poly Twin PA6 V0 Conduit Black 17 PA6 (V0) 15.5 x 21.5 50
1206722 NW22 Poly Twin PA6 V0 Conduit Black 22 PA6 (V0) 19.1 x 25.6 50
1922010 NW10 Poly Twin PPMod Conduit Black 10 PP-Mod 8.5 x 13.3 50
1922013 NW13 Poly Twin PPMod Conduit Black 13 PP-Mod 11.0 x 16.0 50
1922017 NW17 Poly Twin PPMod Conduit Black 17 PP-Mod 15.1 x 21.3 50
1922022 NW22 Poly Twin PPMod Conduit Black 22 PP-Mod 19.6 x 25.4 50
1922310 NW10 Poly Twin PP-UV Conduit Black 10 PP-UV 8.5 x 13.3 50
1922313 NW13 Poly Twin PP-UV Conduit Black 13 PP-UV 11.0 x 16.0 50
1922317 NW17 Poly Twin PP-UV Conduit Black 17 PP-UV 15.1 x 21.3 50
1922322 NW22 Poly Twin PP-UV Conduit Black 22 PP-UV 19.6 x 25.4 50
