Reducing Kits



Description / Application:

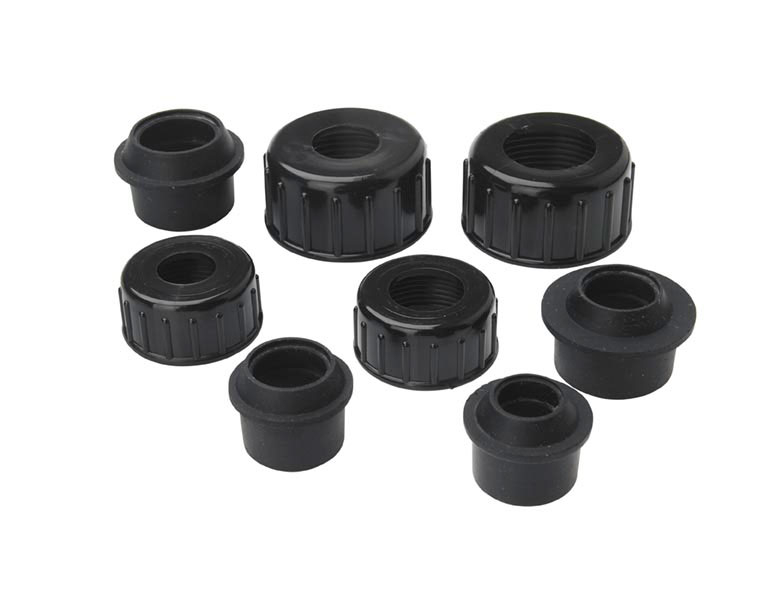

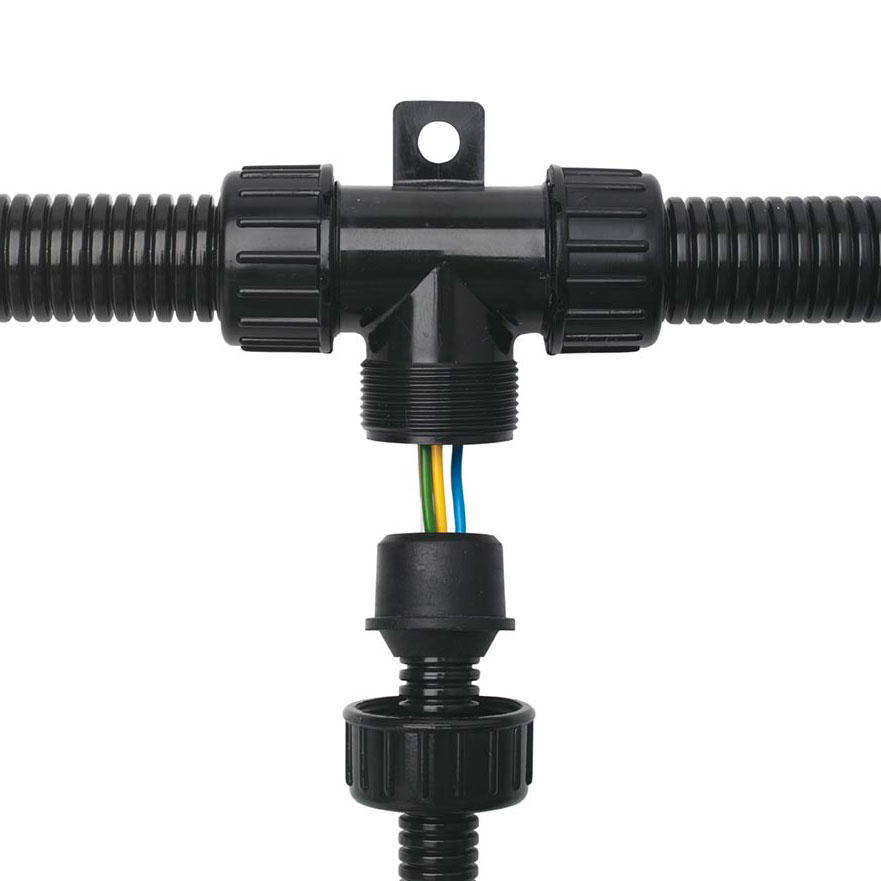

These kits can be used to replace the normal cap nut and sealing ring used on a T piece outlet, to enable a smaller diameter conduit to be used. These fittings are normally only used with normal profile tubes and maintain the waterproof seal. The reduced hole Cap Nuts & Sealing Bushes are also available as individual items. Note:To reduce an NW10 outlet down to NW7.5 the standard CN10 capnut is used with the reducing bush RB10-07

Technical Specification / Features:

Material: Neoprene (Bushes) PA66 (Cap Nuts)

Temperature Range:  - 25ºC to +80ºC

Suitable For: ADR & GGVS applications

Sealing Rating To: IP67
Part Number Description Configuration Normal Profile
Tube A - B - C		 Reduce Conduit Outlet From Reduce Conduit Outlet To
RK1075 Reducing Kit NW10 To NW7.5 Kit NW10 NW7.5
RK1085 Reducing Kit NW10 To NW8.5 Kit NW10 NW8.5
RK1710 Reducing Kit NW17 To NW10 Kit NW17 NW10
RK1713 Reducing Kit NW17 To NW13 Kit NW17 NW13
RK2210 Reducing Kit NW22 To NW10 Kit NW22 NW10
RK2213 Reducing Kit NW22 to NW13 Kit NW22 NW13
RK2217 Reducing Kit NW22 to NW7.5 Kit NW22 NW17
CN10 Cap Nut For NW10 - Black NW10 Cap nut - -
CN17-10 Cap Nut Reduced Hole NW17-NW10 Reduced Hole Cap Nut NW17 NW10
CN17-13 Cap Nut Reduced Hole NW17-NW13 Reduced Hole Cap Nut NW17 NW13
CN22-10 Cap Nut Reduced Hole NW22-NW10 Reduced Hole Cap Nut NW22 NW10
CN22-13 Cap Nut Reduced Hole NW22-NW13 Reduced Hole Cap Nut NW22 NW13
CN22-17 Cap Nut Reduced Hole NW22-NW17 Reduced Hole Cap Nut NW22 NW17
RB10-07 Reducing Bush NW10-NW7.5 Reducing Bush NW10 NW7.5
RB17-10 Reducing Bush NW17 To NW10 Reducing Bush NW17 NW10
RB17-13 Reducing Bush NW17 To NW13 Reducing Bush NW17 NW13
RB22-10 Reducing Bush NW22 To NW10 Reducing Bush NW22 NW10
RB22-13 Reducing Bush NW22 To NW13 Reducing Bush NW22 NW13
RB22-17 Reducing Bush NW22 To NW17 Reducing Bush NW22 NW17
