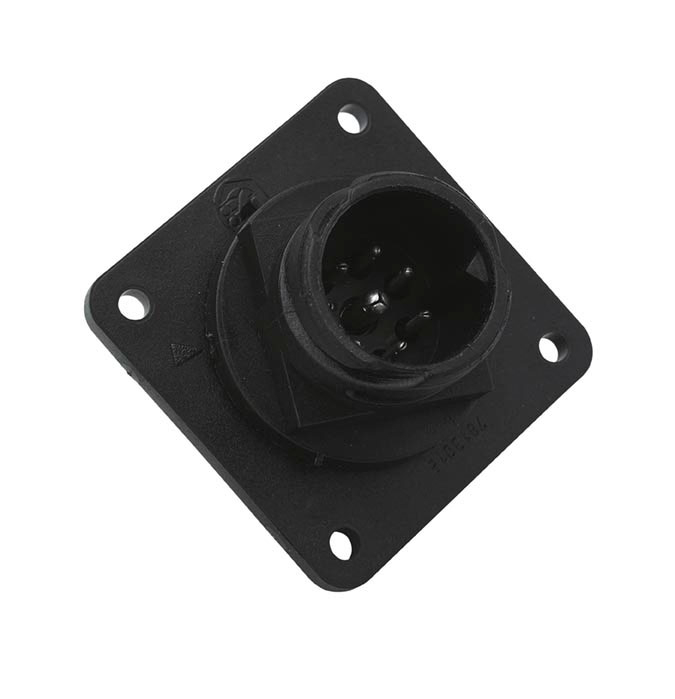

8 Way Bayonet Socket Connector (Suitable for bulk head mounting)

8 Way Bayonet Socket Connector (Suitable for bulk head mounting)

Description / Application:

An 8 way 16s bayonet lock socket connector, capable of being bulk head mounted individually or within a mounting flange . Suitable for use with either MPC08P-90 or MPC08P-S, this connector has 7 x 1.6mmØ & 1 x 3.5mmØ pin contacts. Available as a complete assembly including contacts or as individual parts. Details of the individual contacts can be found on the 'Terminals & Single Wire Seals' page.

Technical Specification:

Material: PA66 (Nylon) Housings, Neoprene & Silicon Seals. Tin plated Phosphur Bronze Terminals.

Colour: Black

Temperature Range:  - 25ºC to +80ºC

Sealing Rating: IP67

NB: If ordering do not forget to add the correct pin and socket contacts which are shown on the 'Terminals & Single Wire Seals' page.

Part Number Description Configuration Normal Profile
Tube A - B - C
MPC08 8 Way 16s Bayonet Socket Connector Assembley Complete 8 Way Straight Bayonet Socket Connector with contacts & seals
7806388 8 Way Bayonet Connector - 16s 7 x 1.6mmØ & 1 x 3.5mmØ Cont. 8 Way 16s Bayonet Socket Housing - (body only)
7813015 Bayonet Mounting Flange For 8 Way 16s Conn. Housing Mounting Flange for 8 Way 16s Bayonet Socket Housing
8113424 Packing Ring PR02 Silicon Packing Ring for use between Mounting Flange & 8 Way Housing
