5 Way In line Connector

Description / Application:

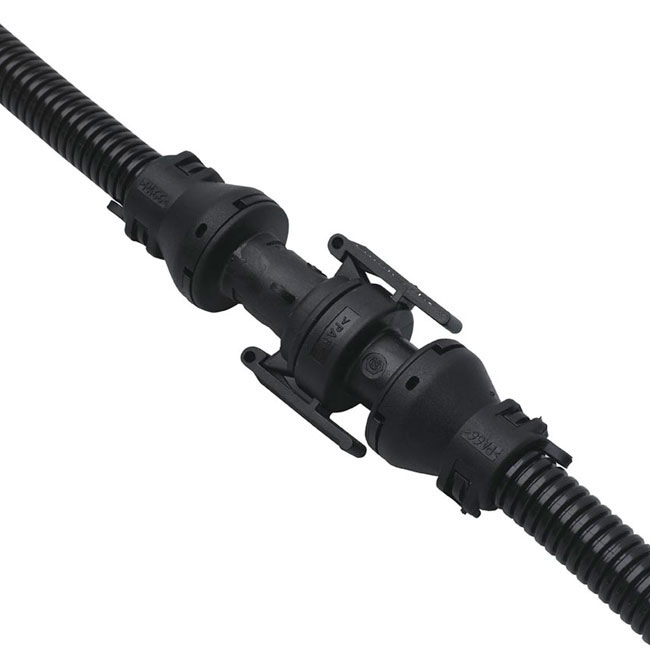

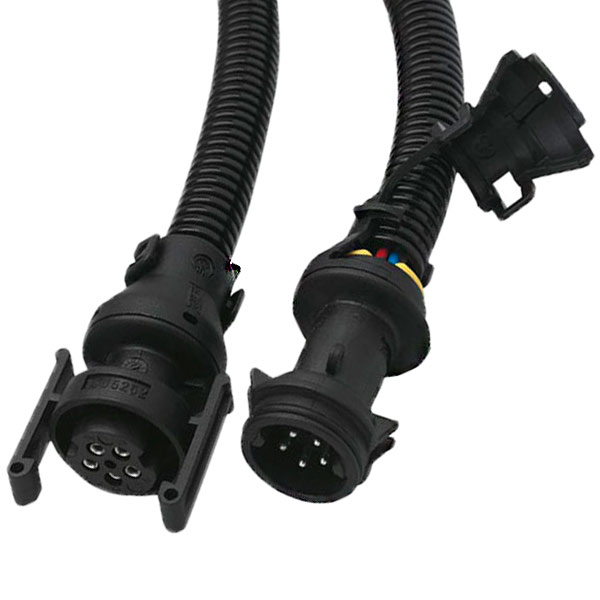

A 5 way in-line connector with secondary lock and sealed to IP67, suitable for use with NW10 conduit. Available as an assembly or in component form. 5 x 1.6mmØ Pin and Socket contacts.

Technical Specification:

Material: PA66 (Nylon) Housings, Neoprene & Silicon Seals. Tin plated Phosphur Bronze Terminals.

Colour: Black

Temperature Range:  - 25ºC to +80ºC


Sealing Rating:
IP67

NB: If ordering do not forget to add the correct pin and socket contacts which are shown on the 'Terminals & Single Wire Seals' page.

Part Number Description Configuration Normal Profile
Tube A - B - C
Conduit Size (NW)
MPC05 5 Way In Line Connector Assembley Complete 5 Way Inline Connector with standard contact arrangement NW10
7805252 5 Way In-line Pin Housing 5 x 1.6mmØ SWS Contacts 5 Way In-Line Pin Housing for 5 x 1.6mm Ø SWS Pin Contacts NW10
7806248 5 Way In-line Socket Housing 5 x 1.6mmØ SWS Contacts 5 Way In-Line Socket Housing for 5 x 1.6mm Ø SWS Socket Contacts NW10
7807263 4/5/8 Pole Connector NW10 Conduit Interface for 5 Pole In-Line Connector NW10
7807502 5 Way Secondary Lock Pin & Socket Contacts 5 Way Secondary Lock for both Pin & socket Contacts N/A
