PPMod (High Temperature PP) Lockable High Wave Profile








Description/Application:

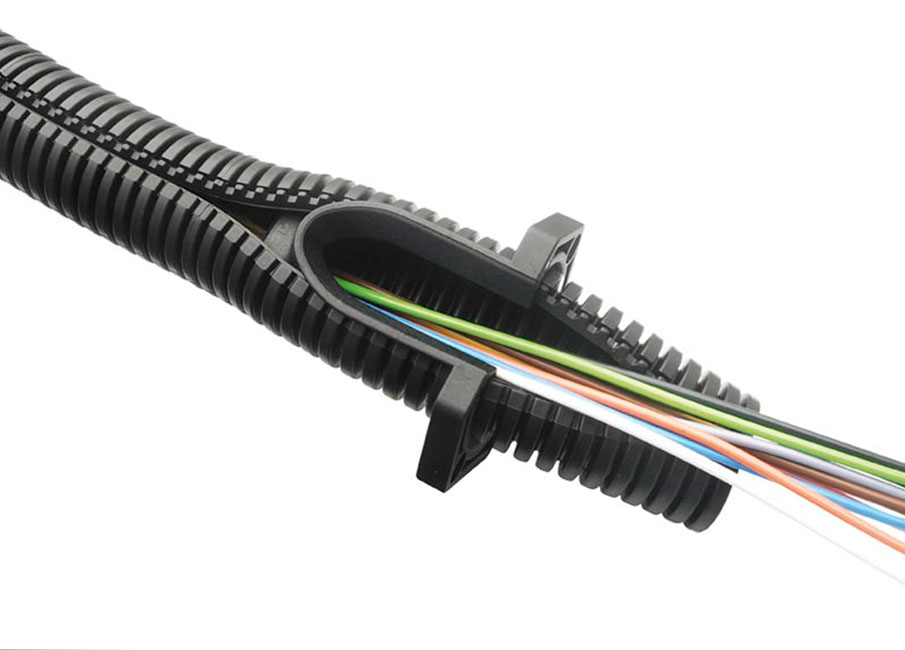

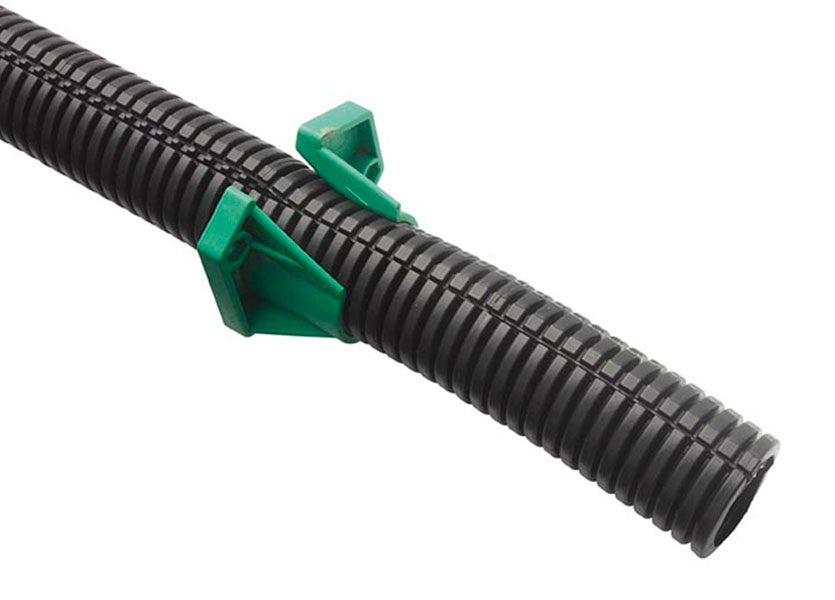

This conduit has been specifically developed to incorporate the features of a slit tube combined with the benefits and security of a solid conduit. The locking mechanism is incorporated into the mould profile of the tube and it is supplied in slit open form ready to be installed. Once applied to the harness, the locking mechanism can be closed using your fingers, but for high volume applications it is recommended that the appropriate cable insertion and closing tool are used. If necessary, the insertion tool can also be used to re-open the conduit after it has been locked.

Lockable conduit is ideally suited for a variety of applications where slit conduit is not a viable alternative but also to replace solid conduit on an existing harness application where additional cables may need to be added. It can also be used as a cost effective solution to replace conventional conduit systems for various other retrofit and aftermarket applications.

Technical Specification

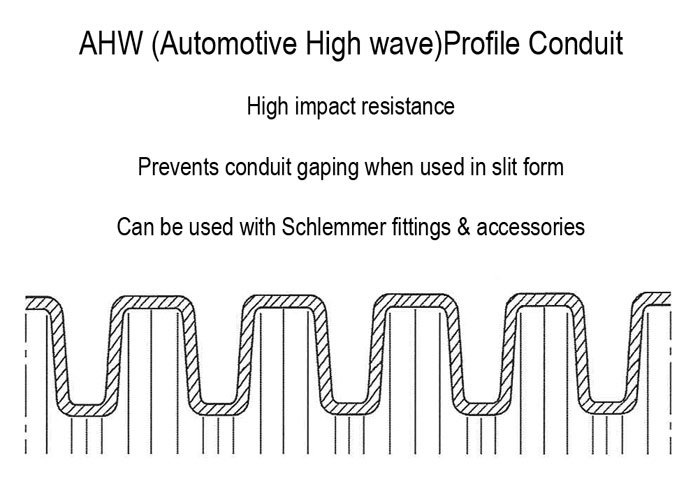

Profile:  AHW (High Wave)

Colour:  Black

Material:  High Temperature Polypropylene

Temperature Range:  -40ºC to +135ºC

Maximum Temperature:  500 hours at +150°C

Burning Behaviour:  according to FMVSS 302, self-extinguishing Type B and burning rate 0 according to DIN75200

UV Resistance: according to DIN EN ISO 8580
Part Number Description Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.
Qty Per Coil (m)
1940008 NW8.5V Slit PPmod Conduit Self Closing Black 8,5 V Lockable 8.6 x 12.8 - 13.3 50
1940011 NW11v Slit PPmod Conduit Self Closing Black 11 V Lockable 11.2 x 15.7 - 16.3 50
1940013 NW13V Slit PPmod Conduit Self Closing Black 13 V Lockable 12.2 x 18.3 - 18.9 50
1940015 NW15V Slit PPmod Conduit Self Closing Black 15 V Lockable 14.9 x 21.3 - 22.0 50
1940019 NW19V Slit PPmod Conduit Self Closing Black 19 V Lockable 19.0 x 25.6 - 26.2 50
1940026 NW26V Slit PPmod Conduit Self Closing Black 26 V Lockable 24.6 x 31.5 - 32.0 25
