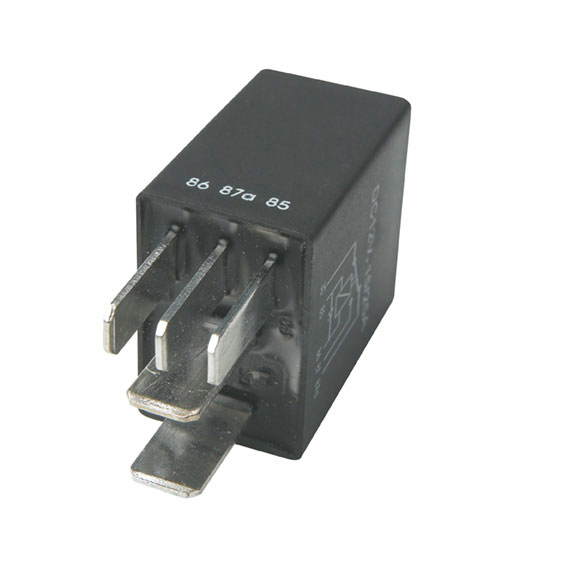

Micro Relays

Micro Relays

Note:-

To see the detailed circuit diagrams and terminal layouts please click on the individual part numbers.

Part Number Description Contact Type Voltage (V) Current Rating (Amps) Terminal Arrangement Circuit Type Features
RMI100 Normally Open Micro Relay 12v 25Amp With Diode Normally Open 12 25 T13 C3 Diode
RMI101 Normally Open Micro Relay 24v 10Amp With Diode Normally Open 24 10 T13 C3 Diode
RMI102 Normally Open Micro Relay 12v 25Amp With Diode Normally Open 12 25 T15 C3 Diode
RMI103 Normally Open Micro Relay 24v 10Amp With Diode Normally Open 24 10 T15 C3 Diode
RMI104 Normally Open Micro Relay c/o 12v 15/25Amp Encps. Diode Change Over 12 15/25 T14 C6 Encap/Resistor
RMI105 Normally Open Micro Relay c/o 24v 5/10Amp Encps. Diode Change Over 24 5/10A T14 C6 Encap/Resistor
