SEM Fast Straight Fitting

SEM Fast Straight Fitting

Description / Application:

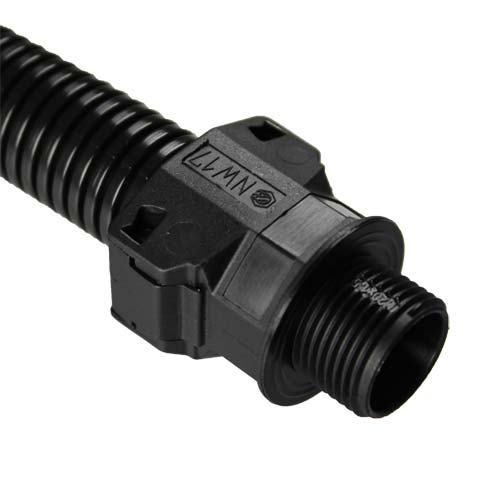

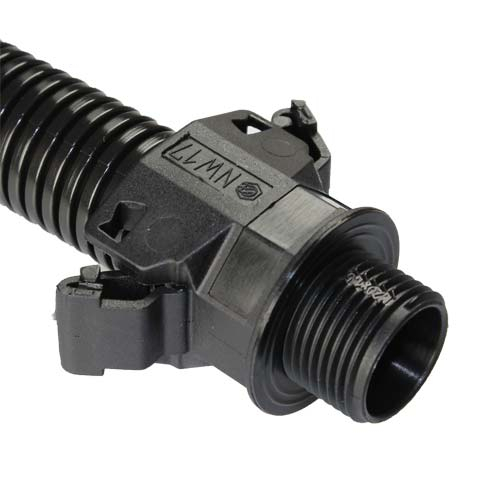

The unique design of the Schlemmer SEM Fast range of fittings enables a conduit to be terminated with a threaded adaptor in two easy actions. Simply twist the conduit slightly as it is inserted to the end of the fitting and snap the locking wings into position to secure the fitting to the conduit providing a weather proof seal to IP65. For applications that require an IP67 seal, the recommended 'O' ring should be used over the last corrugation of the tube before it is located into the fitting. These are available as a separate item from the table below.

Ideally suited for applications where a conduit run needs to be terminated into either a threaded entry or the 'knock out' of a junction box.

SEM Fast fittings can easily be removed from the conduit with the use of an electricians screw driver and used again - no special tools are required.

These parts can be used with normal profile & UFW profile un-slit conduits. It is important the conduit is cut squarely, preferably on top of a crest, to achieve the correct IP rating.

Technical Specification / Features:

Material: PA66

Colour: Black

Features: One part compact design, simple to use, high pull off force, no special tools required.

Product Prices & Dimensions

Part No Conduit Size (NW) Male Thread Thread Length (mm) List Price (exc VAT)
3805047 7.5 M12 11 £139.70 /100
3805028 7.5 PG7 11 £184.20 /100
3805011 8.5 M12 11 £179.20 /100
3805012 8.5 PG 7 11 £179.20 /100
3805000 10 M12 12 £153.30 /100
3805001 10 M16 12 £153.30 /100
3805004 10 PG 9 12 £137.10 /100
3805050 10 PG11 12 £158.60 /100
3805007 12 &13 M16 12 £154.40 /100
3805008 12 &13 M20 12 £167.00 /100
3805037 12 & 13 PG 9 12 £160.60 /100
3805009 12 & 13 PG11 12 £151.50 /100
3805010 12 & 13 PG13 12 £154.40 /100
3805002 17 M20 13 £169.20 /100
3805003 17 M25 13 £176.80 /100
3805005 17 PG13 13 £157.70 /100
3805006 17 PG 16 13 £157.70 /100
3805022 22 M25 13 £224.70 /100
3805023 22 PG21 13 £241.70 /100
3805013 23 M25 13 £212.00 /100
3805014 23 PG 21 13 £212.00 /100
3805015 29 M32 15 £385.80 /100
3805016 29 PG29 15 £367.10 /100
3805017 37 M40 17 £558.40 /100
3805018 37 PG36 17 £558.40 /100
3805019 50 M50 19 £795.00 /100
3805020 50 M63 19 £795.00 /100
3805021 50 PG48 19 £795.00 /100
8112800 NW7.5 'O' Ring - - £5.20 /100
8112801 NW8.5 'O' Ring - - £21.50 /100
8112804 NW12 'O' Ring - - £5.20 /100
8112807 NW17 'O' Ring - - £7.70 /100
8112808 NW22 'O' Ring - - £18.70 /100
8112809 NW23 'O' Ring - - £11.30 /100
8112811 NW37 'O' Ring - - £24.20 /100
8112813 NW50 'O' Ring - - £24.60 /100
8112802 NW10/UFW7.5 'O' Ring - - £6.00 /100
8112803 NW13/UFW8.5 'O' Ring - - £7.20 /100
8112810 NW29/UFW22 &23 'O' Ring - - £19.20 /100
8112805 UFW10 & 13 'O' Ring - - £7.20 /100
8112806 UFW17 'O' Ring - - £11.30 /100
8112812 UFW29 'O' Ring - - £29.80 /100
8112814 UFW37 'O' Ring - - £30.80 /100
