Reducers For T & Y Pieces

Description / Application:

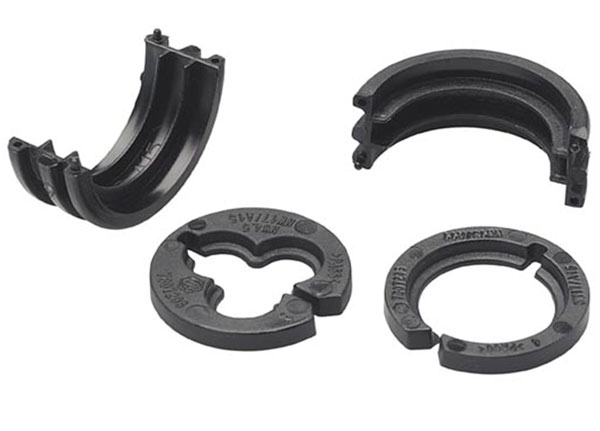

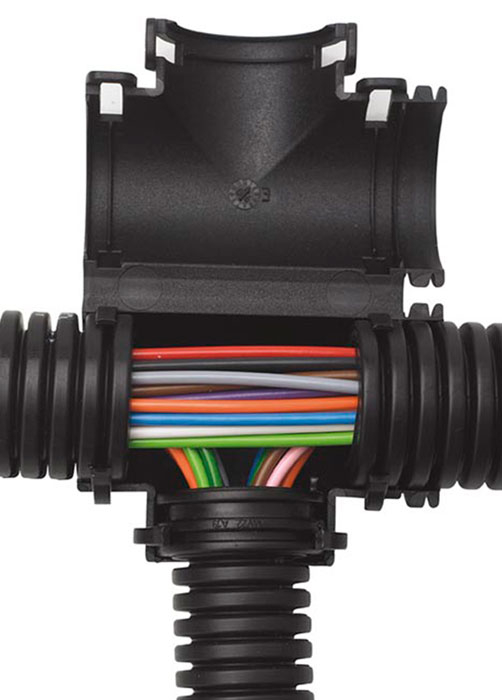

Used in conjunction with both 'T' or 'Y' pieces these fittings can either enable a conduit outlet to be reduced to a smaller size or become a multiple conduit outlet.

Technical Specification / Features:

Material: Polyamide 66

Temperature Range: -40ºC to +135ºC

Part Number Description Configuration Normal Profile
Tube A - B - C
Configuration AHW Profile
Tube A - B - C

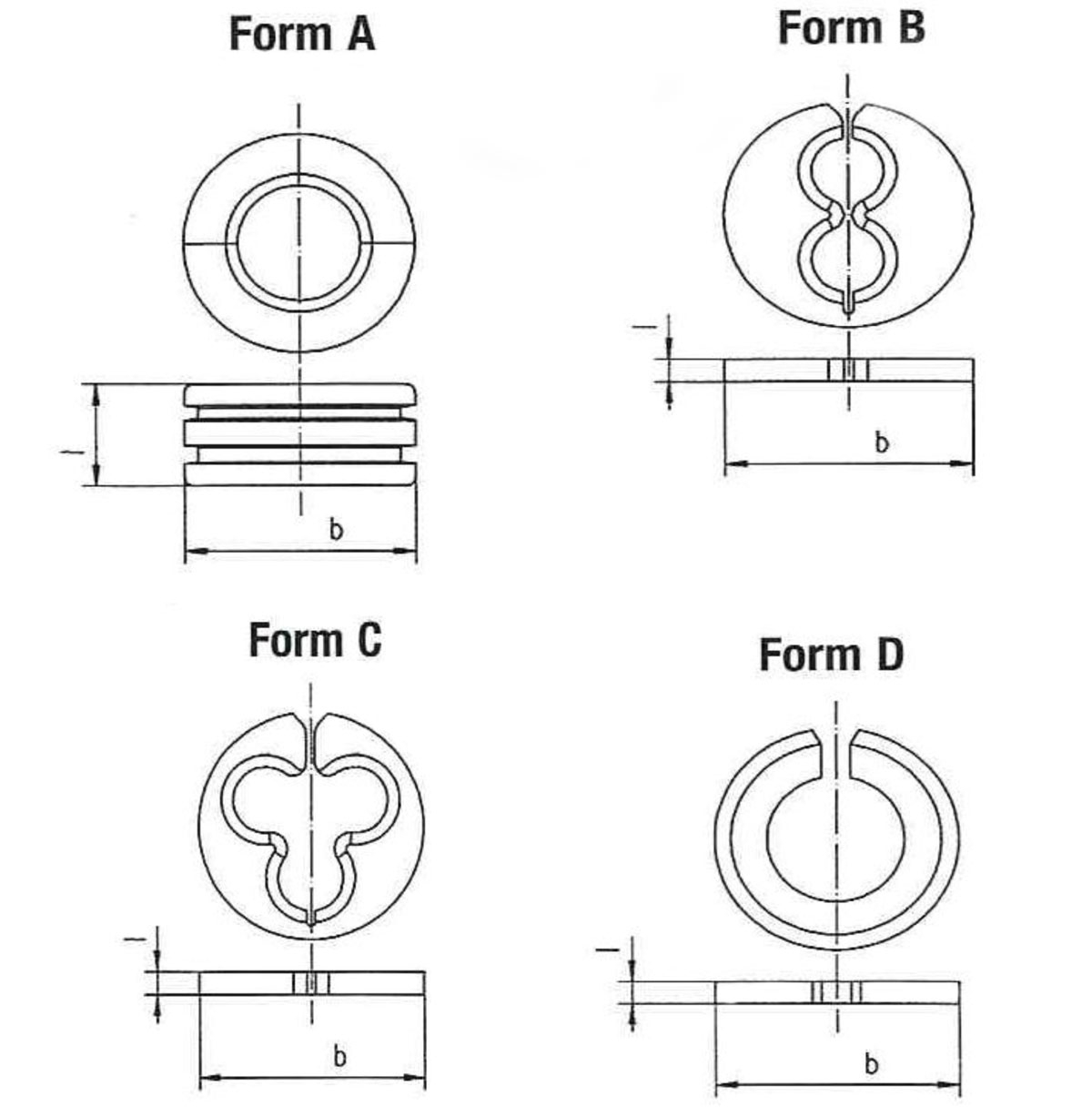

Form
7807270 Outlet Reducer NW8.5-4.5 Type A 8,5 - 4,5 - A
7807272 Outlet Reducer NW10-4.5 Type A 10 - 4,5 8,5 - 4,5 A
7807299 Outlet Reducer NW10-4.5 Type D 10 - 4,5 8,5 - 4,5 D
7807276 Outlet Reducer NW10-7.5 Type A 10 - 7,5 8,5 - 7.5 A
7807297 Outlet Reducer NW10-7.5 Type D 10 - 7,5 8,5 - 6 D
7807288 Outlet Reducer NW10-8.5 Type D 10 - 8,5 - D
7807278 Outlet Reducer NW13-7.5 Type A 13 - 7,5 11 - 7.5 A
7807280 Outlet Reducer NW13-10 Type A 13 - 10 11 - 8,5 A
7807766 Outlet Reducer NW14-13 14 - 13 - D
7807283 Outlet Reducer NW17-13 Type A 17 - 13 15 - 11 A
7807296 Outlet Reducer NW17-13 Type D 17 - 13 15 - 11 D
7807289 Outlet Reducer NW17-2x4.5 Type B 17 - 2 x 4,5 15 - 2 x 4,5 B
7807293 Outlet Reducer NW17-3x4.5 Type C 17 - 3 x 4,5 15 - 3 x 4,5 C
7807294 Outlet Reducer NW22-13 Type D 22 - 13 19 - 11 D
7807282 Outlet Reducer NW22-17 Type A 22 - 17 19 - 15 A
7807187 Outlet Reducer NW22-2X4.5 Type B 22 - 2 x 4,5 19 - 2 x 4,5 B
7807697 Outlet Reducer NW22-2x4.5-7.5 Type C 22 - 2 x 4,5 - 7,5 19 - 2 x 4,5 - 7.5 C
7807290 Outlet Reducer NW22-2x7.5 Type B 22 - 2 x 7,5 19 - 2 x 7.5 B
7807761 Outlet Reducer NW22-2x7.5-4.5 Type C 22 - 2 x 7,5 - 4,5 19 - 2 x 7.5 - 4,5 C
7807698 Oulet Reducer NW22-3x4.5 Type C 22 - 3 x 4,5 19 - 3 x 4,5 C
7807292 Outlet Reducer NW22-3X7.5 Type C 22 - 3 x 7,5 19 - 3 x7.5 C
7807765 Outlet Reducer NW22-7.5-4.5 22 - 7,5 - 4,5 19 - 7.5- 4,5 B
7807291 Outlet Reducer NW22-8.5 & 7.5 Type B 22 - 8,5 - 7,5 - B
7807654 Outlet Reducer NW26-22 Type D 26 - 22 26 - 19 D
7807295 Outlet Reducer NW29-3X8.5 Type C 29 - 3 x 8,5 - C
7807285 Outlet Reducer NW29-26 Type A 29 - 26 - A
7807338 Outlet Reducer NW22-2x7.5-10 22 - 2x7.5 - 10 19 - 2x7.5 - 8.5 C
7807339 Outlet Reducer NW26-17 Type A 26 - 17 26 - 15 A
7807340 Outlet Reducer NW26/22 26 - 22 29 - 19 D
