Hinged Y Pieces |
|
|

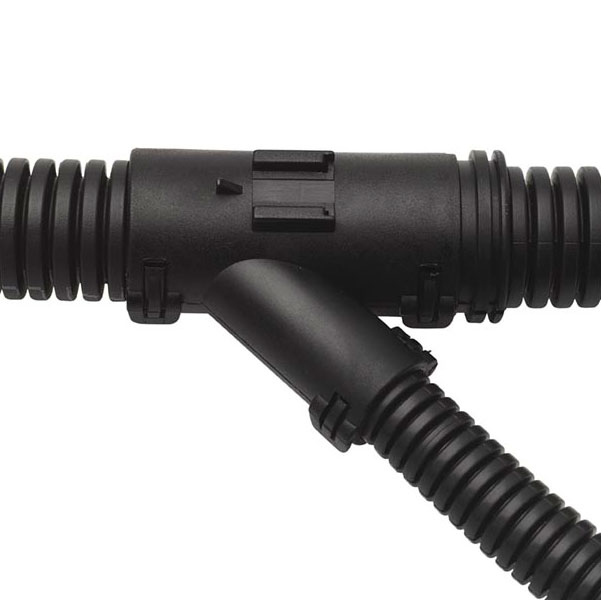

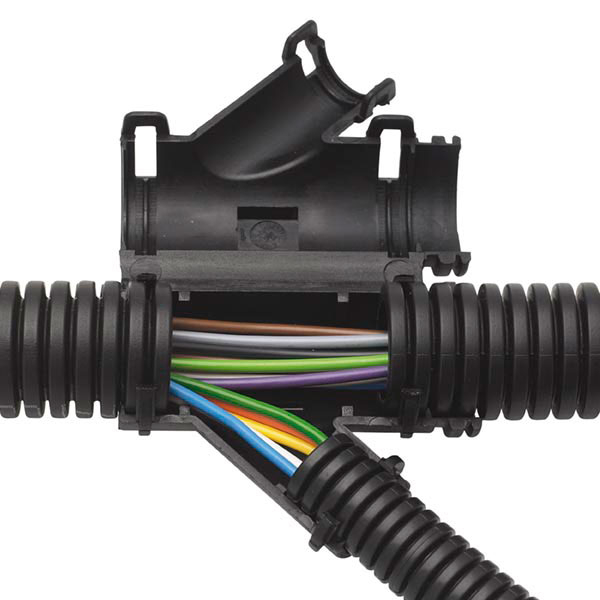

Description / Application: Suitable for use with all types of Schlemmer conduit, these fittings are designed to fit externally and lock together to provide protection to a 'Y' junction on a harness. Available in numerous size combinations the range can be made more versatile by the use of a reducer to accomodate smaller conduit sizes. Technical Specification / Features: Material: Polyamide 66 Temperature Range: -40ºC to +135ºC Features: Integral conduit retention clips ensure quick assembly requiring no special tools and a high pull off force. |
Product Prices & Dimensions
| Part No | Configuration Normal Profile Tube A - B - C |
Configuration AHW Profile Tube A - B - C |

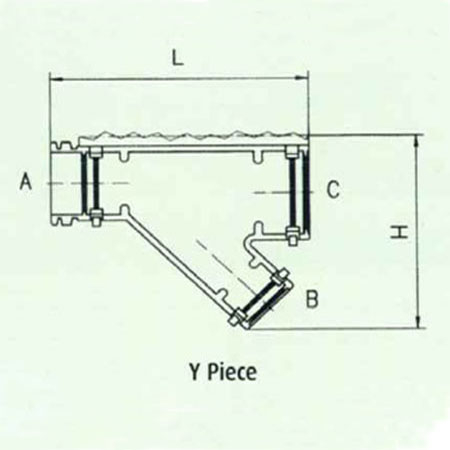

Length (mm) | Height (mm) | List Price (exc VAT) |
|---|---|---|---|---|---|
| 9817050 | 4,5 - 4,5 - 4,5 | 4,5 - 4,5 - 4,5 | 27,8 | 33,0 | £70.89 /100 |
| 9817080 | 7,5 - 4,5 - 4,5 | 7,5 - 4,5 - 4,5 | 30,0 | 40,0 | £44.44 /100 |
| 9817083 | 7,5 - 4,5 - 7,5 | 7,5 - 4,5 - 7,5 | 30,0 | 40,0 | £43.71 /100 |
| 9817079 | 7.5 - 7.5 - 7.5 | 7.5 - 7.5 - 7.5 | 40.1 | 46.9 | £59.52 /100 |
| 9817040 | 8,5 - 8,5 - 8,5 | ? | 38,9 | 45,0 | £71.49 /100 |
| 9817503 | 10 - 4.5 - 7.5 | 8.5 - 4.5 - 7.5 | - | - | £418.28 /100 |
| 9817042 | 10 - 4.5 - 8.5 | - | 42.7 | 34.2 | £61.05 /100 |
| 9817041 | 10 - 8,5 - 8,5 | ? | 39,4 | 45,0 | £125.23 /100 |
| 9817030 | 10 - 8,5 - 10 | ? | 40,0 | 51,2 | £73.12 /100 |
| 9817303 | 10 - 10 - 10 | 8,5 - 8,5 - 8,5 | 43,0 | 54,4 | £67.26 /100 |
| 9817304 | 13 - 7,5 - 10 | 11 - 7.5 - 8,5 | 39,5 | 47,3 | £61.34 /100 |
| 9817031 | 13 - 8,5 - 10 | ? | 40,1 | 49,2 | £102.02 /100 |
| 9817037 | 13 - 8,5 - 8,5 | ? | 37,9 | 40,0 | £121.01 /100 |
| 9817032 | 13 - 8,5 - 13 | ? | 43,0 | 51,9 | £103.11 /100 |
| 9817306 | 13 - 10 - 10 | 11 - 8,5 - 8,5 | 45,4 | 59,9 | £146.59 /100 |
| 9817305 | 13 - 10 - 13 | 11 - 8,5 - 11 | 45,6 | 59,9 | £143.21 /100 |
| 9817308 | 13 - 13 - 13 | 11 - 11 - 11 | 46,6 | 59,9 | £146.59 /100 |
| 9817039 | 17 - 8,5 - 13 | ? | 43,3 | 47,9 | £100.25 /100 |
| 9817033 | 17 - 10 - 10 | 15 - 8,5 - 8,5 | 41,9 | 46,2 | £104.74 /100 |
| 9817035 | 17 - 10 - 13 | 15 - 8,5 - 11 | 44,0 | 48,9 | £119.53 /100 |
| 9817038 | 17 - 10 - 17 | 15 - 8,5 - 15 | 49,7 | 55,6 | £129.43 /100 |
| 9817310 | 17 - 13 - 10 | 15 - 11 - 8,5 | 46,9 | 59,9 | £150.10 /100 |
| 9817036 | 17 - 13 - 13 | 15 - 11 - 11 | 46,2 | 52,9 | £128.89 /100 |
| 9817201 | 17 - 13 - 17 | 15 - 11 - 15 | 58,4 | 78,8 | £119.78 /100 |
| 9817309 | 17 - 17 - 10 | 15 - 15 - 8,5 | 48,8 | 59,9 | £155.17 /100 |
| 9817200 | 22 - 10 - 17 | 19 - 8,5 - 15 | 57,1 | 68,8 | £183.42 /100 |
| 9817203 | 22 - 13 - 17 | 19 - 11 - 15 | 55,1 | 60,3 | £140.31 /100 |
| 9817202 | 22 - 17 - 17 | 19 - 15 - 15 | 58,9 | 67,9 | £126.19 /100 |
| 9817204 | 22 - 4.5 - 22 | 19 - 4.5 - 19 | 46.8 | 46.5 | £97.69 /100 |
| 9817205 | 22 - 7.5 - 22 | 19 - 7.5 - 22 | 47.0 | 49.2 | £118.03 /100 |
| 9817034 | 22 - 10 - 22 | 19 - 8,5 - 19 | 54,2 | 54,3 | £150.58 /100 |
| 9817311 | 22 - 13 - 22 | 19 - 11 - 19 | 56,4 | 63,5 | £234.50 /100 |
| 9817302 | 22 - 22 - 22 | 19 - 19 - 19 | 64,7 | 76,7 | £188.50 /100 |
| 9817300 | 26 - 22 - 22 | 26 - 19 - 19 | 64,7 | 69,4 | £149.01 /100 |
| 9817242 | 26 - 10 - 26 | 26 - 8.5 - 26 | - | - | £757.60 /100 |
| 9817240 | 29 - 22 - 26 | - | 75.0 | 72.3 | £579.60 /100 |
| 9817044 | 29 - 26 - 29 | - | 95.1 | 78.0 | £881.88 /100 |
| 9817070 | 37 - 17 - 29 | - | 94.7 | 76.0 | £1017.57 /100 |
| 9817244 | 37 - 29 - 22 | - | - | - | £1548.73 /100 |
| 9817241 | 37 - 37 - 22 | - | - | - | £1721.44 /100 |
