Description / Application:

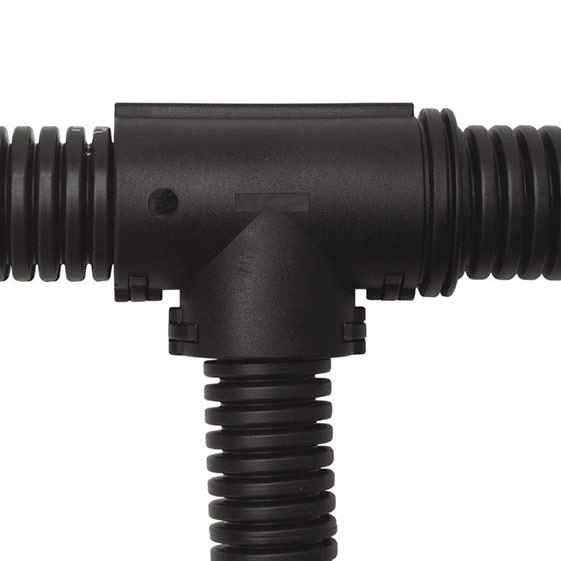

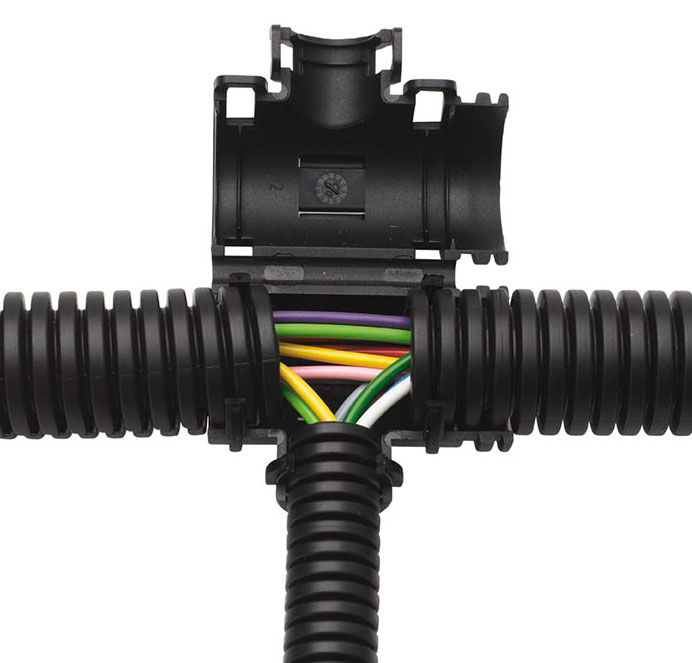

Suitable for use with all types of Schlemmer conduit these fittings are designed to fit externally and lock together to provide protection to a harness junction.

Available in numerous size combinations the range can be made more versatile by the use of a reducer to accomodate smaller conduit sizes.



Technical Specification / Features:

Material: Polyamide 66

Temperature Range: -40ºC to +135ºC

Features: Integral conduit retention clips ensure quick assembly requiring no special tools and a high pull off force.

Most 'T' Pieces have the ability to be joined together without conduit to produce a manifold.

Part Number Description Configuration Normal Profile
Tube A - B - C		 Configuration AHW Profile

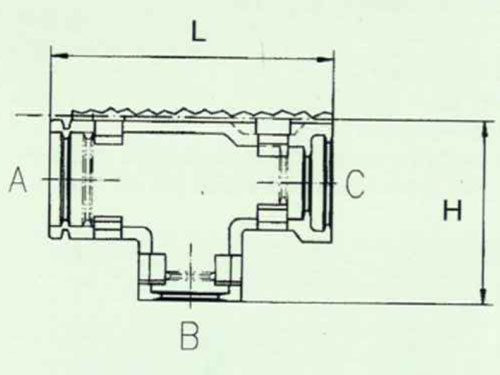

Tube A - B - C		 Length (mm) Height (mm)
9806162 External T Piece NW4.5-4.5-4.5 4,5 - 4,5 - 4,5 4,5 - 4,5 - 4,5 24.1 30.0
9806306 External T Piece NW4.5-7.5-4.5 4.5 - 7.5 - 4.5 4.5 - 7.5 - 4.5 33.5 22.5
9806125 External T Piece NW7.5-4.5-4.5 7,5 - 4,5 - 4,5 7,5 - 4,5 - 4,5 24.7 37.7
9806081 External T Piece NW7.5-4.5-7.5 7,5 - 4,5 - 7,5 7,5 - 4,5 - 7,5 25.7 36.6
9806168 External T Piece NW7.5-7.5-4.5 7,5 - 7,5 - 4,5 7,5 - 7,5 - 4,5 33.2 25.7
9806083 External T Piece NW7.5-7.5-7.5 7,5 - 7,5 - 7,5 7,5 - 7,5 - 7,5 26.1 39.2
9806180 External T Piece NW7.5-10-7.5 7,5 - 8,5 - 7,5 - 26.1 42.4
9806133 External T Piece 8.5-8.5-8.5 8,5 - 8,5 - 8,5 - 29.0 43.4
9806079 External T Piece NW8.5-8.5-10 8,5 - 8,5 - 10 - 28.5 41.1
9806163 External T Piece NW10-4.5-7.5 10 - 4,5 - 7,5 8,5 - 4,5 - 7.5 33.7 50.8
9806105 External T Piece NW10-4.5-10 10 - 4,5 - 10 8,5 - 4,5 - 8,5 28.7 36.6
9806170 External T Piece NW10-7.5-4.5 10 - 7,5 - 4,5 8,5 - 7.5 - 4,5 44.0 33.7
9806130 External T Piece NW10-7.5-7.5 10 - 7,5 - 7,5 8,5 - 7.5 -7.5 28.7 39.7
9806111 External T Piece NW10-7.5-10 10 - 7,5 - 10 8,5 - 7.5 - 8,5 28.7 39.4
9806188 External T Piece NW10-8.5-8.5 10 - 8,5 - 8,5 - 29.1 36.0
9806189 External T Piece NW10-8.5-10 10 - 8,5 - 10 - 29.1 42.2
9806169 External T Piece NW10-10-4.5 10 - 10 - 4,5 8,5 - 8,5 - 4,5 33.7 44.6
9806160 External T Piece NW10-10-7.5 10 - 10 - 7,5 8,5 - 8,5 - 7.5 28.7 42.4
9806185 External T Piece NW10-10-8.5 10 - 10 - 8,5 - 29.1 37.0
9806138 External T Piece NW10-10-10 10 - 10 - 10 8,5 - 8,5 - 8,5 28.8 42.4
9806186 External T Piece NW10-13-10 10 - 13 - 10 8,5 - 11 - 8,5 29.1 46.2
9806127 External T Piece NW13-4.5-10 13 - 4,5 - 10 11 - 4,5 - 8,5 30.6 39.5
9806173 External T Piece NW13-4.5-13 13 - 4,5 - 13 11 - 4,5 - 11 53.0 36.6
9806158 External T Piece NW13-7.5-13 13 - 7,5 - 13 11 - 7.5 - 11 31.7 40.1
9806175 External T Piece NW13-8.5-10 13 - 8,5 - 10 - 52.3 42.0
9806118 External T Piece NW13-8.5-13 13 - 8,5 - 13 - 31.6 42.4
9806171 External T Piece NW13-10-4.5 13 - 10 - 4,5 11 - 8,5 - 4,5 46.1 36.6
9806172 External T Piece NW13-10-7.5 13 - 10 - 7,5 11 - 8,5 - 7.5 52.3 36.6
9806131 External T Piece NW13-10-10 13 - 10 - 10 11 - 8,5 - 8,5 31.9 43.6
9806101 External T Piece NW13-10-13 13 - 10 - 13 11 - 8,5 - 11 31.6 43.6
9806159 External T Piece NW13-13-7.5 13 - 13 - 7,5 11 - 11 - 7.5 31.6 45.3
9806104 External T Piece NW13-13-10 13 - 13 - 10 11 - 11 - 8,5 31.6 45.3
9806115 External T Piece NW13-13-13 13 - 13 - 13 11 - 11 - 11 31.9 46.6
9806202 External T Piece NW13-17-10 13 - 17 - 10 11 - 15 - 8.5 43.9 33.1
9806161 External T Piece NW17-4.5-17 17 - 4,5 - 17 15 - 4,5 - 15 40.8 37.0
9806100 External T Piece NW17-7.5-13 17 - 7,5 - 13 15 - 7.5 - 11 36.9 41.0
9806137 External T Piece NW17-7.5-17 17 - 7,5 - 17 15 - 7.5 - 15 37.0 40.8
9806120 External T Piece NW17-8.5-17 17 - 8,5 - 17 - 36.9 46.0
9806107 External T Piece NW17-10-13 17 - 10 - 13 15 - 8,5 - 11 36.9 43.6
9806136 External T Piece NW17-10-17 17 - 10 - 17 15 - 8,5 - 15 37.0 43.8
9806166 External T Piece NW17-13-13 17 - 13 - 13 15 - 11 - 11 36.9 46.0
9806141 External T Piece NW17-13-17 17 - 13 - 17 15 - 11 - 15 36.3 50.1
9806187 External T Piece NW17-17-13 17 - 17 - 13 15 - 15 - 11 37.2 51.9
9806167 External T Piece NW17-17-7.5 17 - 17 - 7,5 15 - 15 - 7.5 36.9 50.6
9806196 External T Piece NW17-17-17 17 - 17 - 17 15 - 15 - 15 45.0 37.2
9806135 External T Piece NW17-22-17 17 - 22 - 17 15 - 19 - 15 39.3 59.9
9806106 External T Piece NW22-4.5-22 22 - 4,5 - 22 19 - 4,5 - 19 37.7 41.4
9806113 External T Piece NW22-7.5-22 22 - 7,5 - 22 19 - 7.5 - 19 41.4 39.5
9806149 External T Piece NW22-8.5-22 22 - 8,5 - 22 - 47.0 66.4
9806143 External T Piece NW22-10-10 22 - 10 - 10 19 - 8,5 - 8,5 47.0 66.3
9806179 External T Piece NW22-10-17 22 - 10 - 17 19 - 8,5 - 15 47.0 67.7
9806121 External T Piece NW22-10-22 22 - 10 - 22 19 - 8,5 - 19 41.5 42.5
9806164 External T-Piece NW22-10-22 Smooth NW22 Outlet 22 - 10 - 22 19 - 8,5 - 19 66.4 47.0
9806114 External T Piece NW22-13-17 22 - 13 - 17 19 - 11 - 15 41.4 46.7
9806108 External T Piece NW22-13-22 22 - 13 - 22 19 - 11 - 19 41.4 46.4
9806103 External T Piece NW22-17-13 22 - 17 - 13 19 - 15 - 11 41.9 51.3
9806178 External T Piece NW22-22-10 22 - 22 - 10 19 - 19 - 8.5 56.4 45.9
9806142 External T Piece NW22-22-13 22 - 22 - 13 19 - 19 - 11 43.8 58.5
9806126 External T Piece NW22-22-17 22 - 22 - 17 19 - 19 - 15 43.8 60.6
9806102 External T Piece NW22-22-22 22 - 22 - 22 19 - 19 - 19 42.4 56.2
9806165 External T Piece NW22-22-22 Smooth NW22 Outlet 22 - 22 - 22 19 - 19 - 19 66.4 47.0
9806116 External T Piece NW22-23-10 22 - 23 - 10 - 42.2 60.6
9806117 External T Piece NW22-23-13 22 - 23 - 13 - 42.2 61.3
9806184 External T Piece NW22-26-17 22 - 26 - 17 19 - 26 - 15 42.5 57.0
9806182 External T Piece NW22-29-26 22 - 29 - 26 - 48.5 60.0
9806122 External T Piece NW23-22-22 23 - 22 - 22 - 46.6 58.4
9806153 External T Piece NW26-4.5-22 26 - 4,5 - 22 26 - 4,5 - 19 53.0 72.3
9806144 External T Piece NW26-4.5-26 26 - 4,5 - 26 26 - 4,5 - 26 53.0 73.0
9806156 External T Piece NW26-7.5-22 26 - 7,5 - 22 26 - 7.5 - 19 53.0 72.3
9806177 External T Piece NW26-7.5-26 26 - 7,5 - 26 26 - 7.5 - 26 53.0 73.0
9806145 External T Piece NW26-8.5-26 26 - 8,5 - 26 - 53.0 73.0
9806129 External T Piece NW26-10-26 26 - 10 - 26 26 - 8,5 - 26 47.6 45.1
9806140 External T Piece NW26-13-13 26 - 13 - 13 26 - 11 - 11 53.0 72.9
9806148 External T Piece NW26-13-22 26 - 13 - 22 26 - 11 - 19 53.0 72.3
9806147 External T Piece NW26-13-26 26 - 13 - 26 26 - 11 - 26 53.0 73.0
9806123 External T Piece NW26-17-10 26 - 17 - 10 26 - 15 - 8,5 49.0 51.8
9806124 External T Piece NW26-17-13 26 - 17 - 13 26 - 15 - 11 49.0 52.2
9806109 External T Piece NW26-17-17 26 - 17 - 17 26 - 15 - 15 49.0 52.5
9806119 External T Piece NW26-17-22 26 - 17 - 22 26 - 15 - 19 47.3 50.7
9806146 External T Piece NW26-17-26 26 - 17 - 26 26 - 15 - 26 53.0 73.0
9806112 External T Piece NW26-22-22 26 - 22 - 22 26 - 19 - 19 47.3 55.2
9806128 External T Piece NW26-22-23 26 - 22 - 23 - 49.7 57.6
9806174 External T Piece NW26-26-10 26 - 26 - 10 26 - 26 - 8,5 72.2 53.0
9806134 External T Piece NW26-26-13 26 - 26 - 13 26 - 26 - 11 53.0 72.9
9806110 External T Piece NW26-26-22 26 - 26 - 22 26 - 26 - 19 47.4 61.2
9806157 External T Piece NW26-26-26 26 - 26 - 26 26 - 26 - 26 53.0 73.0
9806304 External T Piece NW26-29-26 26 - 29 - 26 - 59.7 47.3
9806300 External T Piece NW29-10-29 29 - 10 - 29 - 53.5 59.6
9806183 External T Piece NW29-13-29 29 - 13 - 29 - 51.5 41.5
9806181 External T Piece NW29-17-26 29 - 17 - 26 - 51.4 46.4
9806301 External T Piece NW29-17-29 29 - 17 - 29 - 53.5 59.6
9806205 External T Piece NW37-13-26 37 - 13 - 26 - 49.8 56.8
9806323 External T Piece NW37-13-29 37 - 13 - 29 - 63.3 64.0
9806325 External T Piece NW37-22-29 37 - 22 - 29 - 73.2 66.7
9806322 External T Piece NW37-13-37 37 - 13 - 37 - - -
9806321 External T Piece NW37-17-37 37 - 17 - 37 - - -
9806352 External T Piece NW37-37-37 37 - 37 - 37 - 75.2 61.2
9806204 External T Piece NW50-26-50 50 - 26 - 50 - 81.5 64.8
