Hinged Manifolds |
|
|

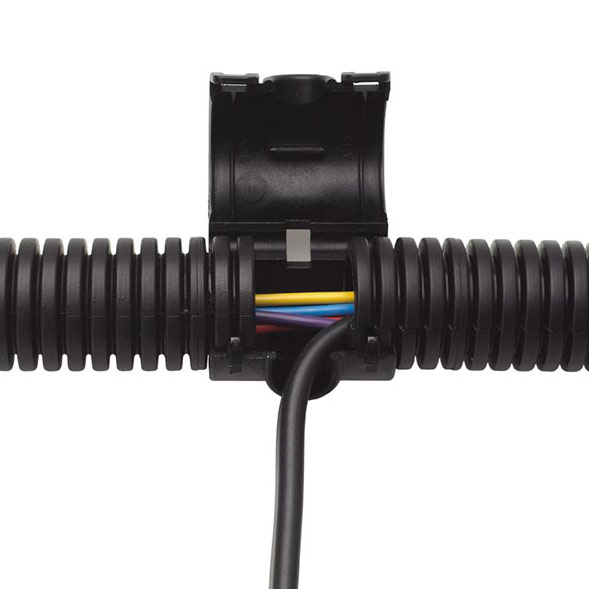

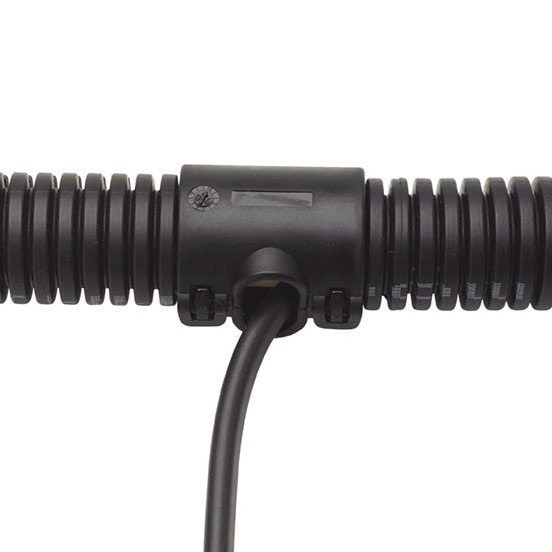

Description / Application: Suitable for use with all types of Schlemmer conduit these fittings are designed to fit externally to provide protection to a harness junction where a cable is exiting the harness without the need for conduit protection. Two types of manifold are available one with outlets of equal size and the other with one outlet reduced to a smaller conduit diameter. Technical Specification / Features: Material: Polyamide 66 Temperature Range: -40ºC to +135ºC |
Product Prices & Dimensions
| Part No | Configuration Normal Profile Tube |
Configuration AHW Profile Tube |
Length (mm) | Height (mm) | List Price (exc VAT) |
|---|---|---|---|---|---|
| 9810045 | NW4.5 - NW4.5 | NW4.5 - NW4.5 | 14.4 | 26.0 | £45.16 /100 |
| 9810075 | NW7.5 - NW7.5 | NW7.5 - NW7.5 | 17.2 | 26.0 | £38.64 /100 |
| 9810100 | NW10 - NW10 | NW8.5 - NW8.5 | 20.2 | 27.9 | £48.54 /100 |
| 9810130 | NW13 - NW13 | NW11 - NW11 | 23.1 | 29.5 | £31.40 /100 |
| 9810170 | NW17 - NW17 | NW15 - NW15 | 28.4 | 29.5 | £58.93 /100 |
| 9810220 | NW22 - NW22 | NW19 - NW19 | 32.9 | 29.5 | £69.79 /100 |
| 9810260 | NW26 - NW26 | NW26 - NW26 | 38.8 | 29.5 | £70.64 /100 |
| 9810375 | NW7.5 - NW4.5 | NW7.5 - NW4.5 | 17.2 | 28.0 | £32.49 /100 |
| 9810400 | NW10 - NW7.5 | NW8.5 - NW7.5 | 20.2 | 32.0 | £35.26 /100 |
| 9810430 | NW13 - NW10 | NW11 - NW8.5 | 23.1 | 35.5 | £32.49 /100 |
| 9810470 | NW17 - NW13 | NW15 - NW11 | 28.4 | 39.5 | £35.50 /100 |
| 9810520 | NW22 - NW17 | NW19 - NW15 | 32.9 | 39.5 | £61.23 /100 |
| 9810560 | NW26 - NW22 | NW26 - NW19 | 38.8 | 39.5 | £59.78 /100 |
Autotechnik Systems Limited are the exclusive UK distributor for:-
