Hinged Elbows

Description / Application:

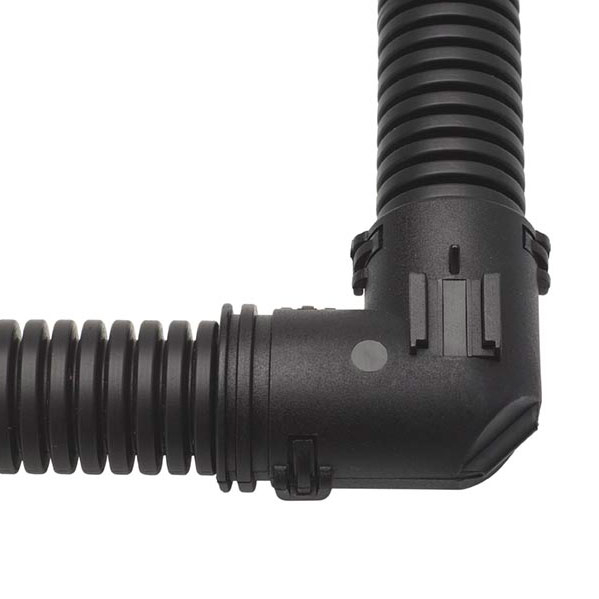

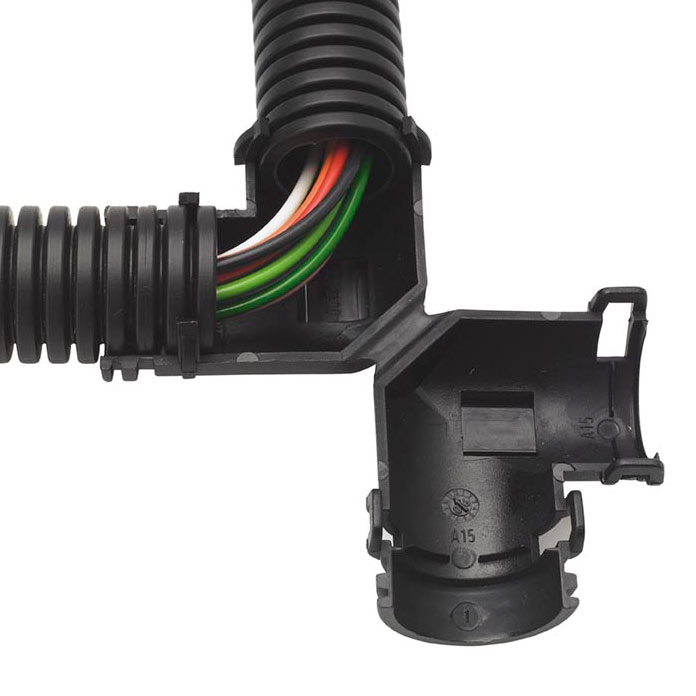

Suitable for use with all types of Schlemmer conduit, these fittings are designed to fit externally and lock together to provide a sharp  90 degree bend in a conduit run. This product is ideally suited for applications where the harness is being routed around a bulkhead such as an engine compartment.

Technical Specification / Features:

Material: Polyamide 66

Temperature Range:  - 40ºC to +135ºC

Product Prices & Dimensions

Part No Configuration
Normal Profile Tube
Configuration
AHW Profile Tube
Length (mm) Height (mm) List Price (exc VAT)
7807397 NW8,5 - NW8,5 N/A 32.4 30.8 £47.30 /100
7807398 NW10 - NW10 NW8,5 - NW8,5 28.0 35.2 £118.00 /100
7807399 NW13 - NW13 NW11 - NW11 30.5 37.5 £103.40 /100
7807400 NW17 - NW17 NW15 - NW15 38.3 43.7 £103.10 /100
7807401 NW22 - NW22 NW19 - NW19 44.3 49.1 £105.60 /100
7807394 NW26 - NW17 NW26 - NW15 42.2 49.1 £108.60 /100
7807393 NW26 - NW22 NW26 - NW19 42.2 49.1 £119.40 /100
7807403 NW26 - NW26 NW26 - NW26 48.3 54.3 £116.90 /100

Autotechnik Systems Limited are the exclusive UK distributor for:-
