Conduit Clamping Clips and Collars

Description / Application:

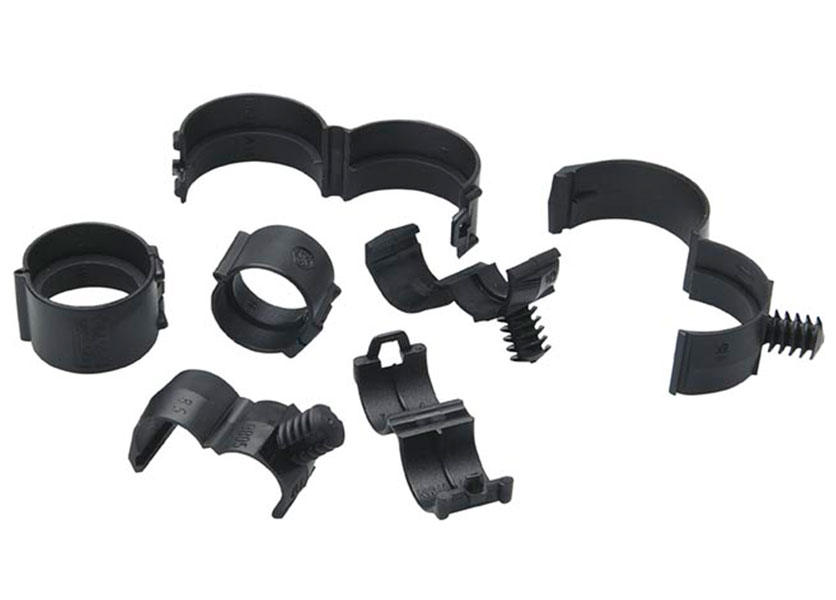

Suitable for use with most types of Schlemmer conduit, these clips are designed to provide a means of either fixing the harness into a vehicle or at the end of a 'slit' conduit run to provide additional security to prevent cables becoming trapped.

Technical Specification / Features:

Material: Polyamide 66

Temperature Range:  - 40ºC to +135ºC

Features: Fir tree clips only, can be mounted into a fixing hole diameter  6.5mm and a plate thickness of  0.6 to 5.1mm

Part Number Description Configuration
Normal Profile Tube		 Configuration
AHW Profile Tube		 Type
9805940 NW4.5 Collar 4.5 4.5 Plane Collar
9805941 NW7.5 Collar 7.5 7.5 Plane Collar
9805939 NW8.5 Collar 8.5 - Plane Collar
9805942 NW10 Collar 10 8.5 Plane Collar
9805943 NW13 Collar 13 11 Plane Collar
9805944 NW17 Collar 17 15 Plane Collar
9805945 NW22 Collar 22 19 Plane Collar
9805946 NW26 Collar 26 26 Plane Collar

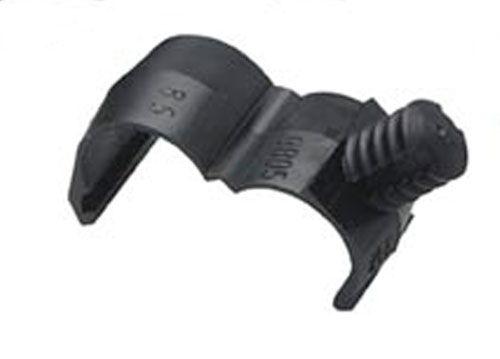

9805917 NW4.5 Clamping ClIP 4.5 4.5 Fir Tree Mounting
9805911 NW7.5 Clamping ClIP 7.5 7.5 Fir Tree Mounting
9805912 NW8.5 Clamping ClIP 8.5 - Fir Tree Mounting
9805913 NW10 Clamping ClIP 10 8.5 Fir Tree Mounting
9805914 NW13 Clamping ClIP 13 11 Fir Tree Mounting
9805925 NW17 Clamping ClIP 17 15 Fir Tree Mounting
9805916 NW22 Clamping ClIP 22 19 Fir Tree Mounting
