Battery Terminals

Battery Terminals

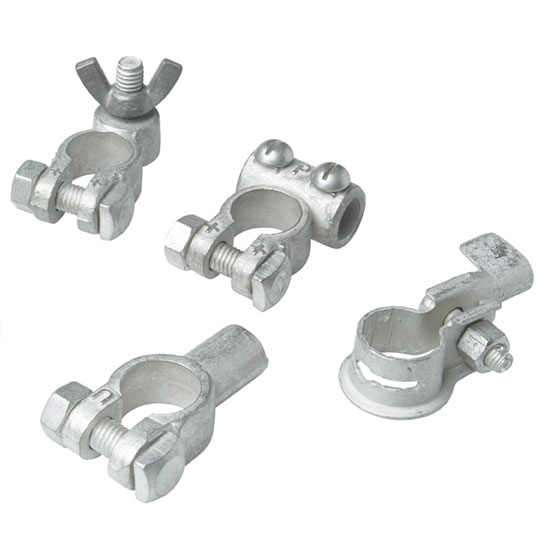

Description / Application: An extensive range of Battery Terminals suitable for cable diameters from 16mm² to 70mm² are available in a variety of types and sizes.

Material: Manufactured from either forged brass or pressed steel and plated with a dull tin plate.

Part Number Description Type Polarity Cable Range
(mm		 Cable Entry
Hole		 Terminal
O.D. (mm)		 Pack Qty
TBT100 Battery Terminal Screw Type Neg For 25mm² To 40mm² Cable 90° Screw Negative 25 to 40 9.5 n/a 10
TBT102 Battery Terminal Screw Type Neg For 50mm² To 60mm² Cable 90° Screw Negative 50 to 60 11.8 n/a 10
TBT103 Battery Terminal Screw Type Pos For 50mm² To 60mm² Cable 90° Screw Positive 50 to 60 11.8 n/a 10
TBT104 Battery Terminal Screw Type Neg For 70mm² To 95mm² Cable 90° Screw Negative 70 to 95 16.0 n/a 10
TBT105 Battery Terminal Screw Type Pos For 70mm² To 95mm² Cable 90° Screw Positive 70 to 95 16.0 n/a 10
TBT300 Batt Terminal Straight Crimp Solder Type Neg 16-20mm² Cable Straight Crimp/Solder Negative 16 to 20 6.0 14.6 10
TBT301 Batt Terminal Straight Crimp Solder Type Pos 16-20mm² Cable Straight Crimp/Solder Positive 16 to 20 6.0 14.6 10
TBT302 Batt Terminal Straight Crimp Solder Type Neg 25mm²Cable Straight Crimp/Solder Negative 25 7.1 14.6 10
TBT303 Batt Terminal Straight Crimp Solder Type Pos 25mm² Cable Straight Crimp/Solder Positive 25 7.1 14.6 10
TBT304 Batt Terminal Straight Crimp Solder Type Neg 35-50mm² Cable Straight Crimp/Solder Negative 35 to 50 9.1 14.6 10
TBT305 Batt Terminal Straight Crimp Solder Type Pos 35-50mm² Cable Straight Crimp/Solder Positive 35 to 50 9.1 14.6 10
TBT307 Batt Terminal Straight Crimp Solder Type Pos 50-60mm² Cable Straight Crimp/Solder Positive 50 to 60 11.6 17.8 10
TBT309 Batt Terminal Straight Crimp Solder Type Pos 70mm² Cable Straight Crimp/Solder Positive 70 12.5 17.8 10
TBT500 Battery Terminal Negative With M8 Stud and Nut Stud and Nut Fixing Negative M8 Stud n/a n/a 10
TBT501 Battery Terminal Positive With M8 Stud and Nut Stud and Nut Fixing Positive M8 Stud n/a n/a 10
TBT502 Battery Terminal Negative With M10 Stud and Nut Stud and Nut Fixing Negative M10 Stud n/a n/a 10
TBT503 Battery Terminal Positive With M10 Stud and Nut Stud and Nut Fixing Positive M10 Stud n/a n/a 10
TBT504 Battery Terminal Negative With M8 Stud & Wingnut Stud and Wing Nut Fixing Negative M8 Stud n/a n/a 10
TBT505 Battery Terminal Positive With M8 Stud & Wingnut Stud and Wing Nut Fixing Positive M8 Stud n/a n/a 10
TBT800 Battery Terminal M8 Bolt Extended Length 32mm Long Extended Bolt M8 x 32mm n/a n/a n/a 10
