Multi Terminal Bus Bars Multi Terminal Bus Bars

Multi Terminal Bus Bars

Description / Application: This range of Bus Bars allows you to connect multiple cables to a single source, either Positive or Negative. The Dual 4 Point terminal allows for multiple connections to Positive and Negative

Material: Glass Filled PA6 (Nylon) body, nickel plated copper alloy strips and stainless steel threaded studs and locknuts.

Voltage: Up to 48V

Pack Quantity: 1

Part Number Description Bus Bar Description Distribution Points Colour Rating (Amps)

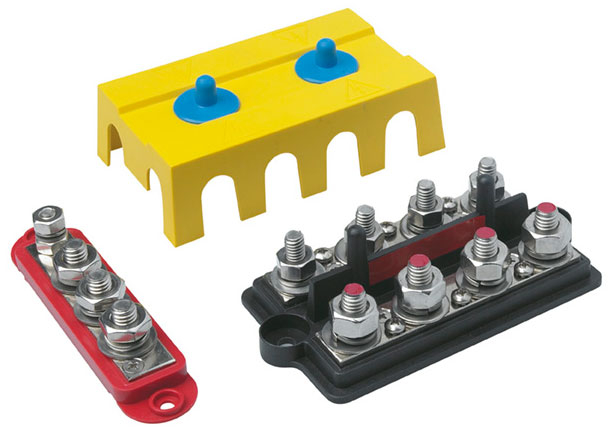

PDP127 4 Point Terminal Bus Bar - Red 1 x 1/4 & 3 x 3/8" Studs 4 Way - Positive 1 x M6 & 3 x M10 Studs Red 210
PDP128 4 Point Terminal Bus Bar Black 1 x 1/4 & 3 x 5/16 Studs 4 Way - Negative 1 x M6 & 3 x M8 Studs Black 210
PDP130 Cover Dual 4 Point Bus Bar Yellow ClIP Fit Over Bus Bar Cover for Duel 8 Way n/a Yellow n/a

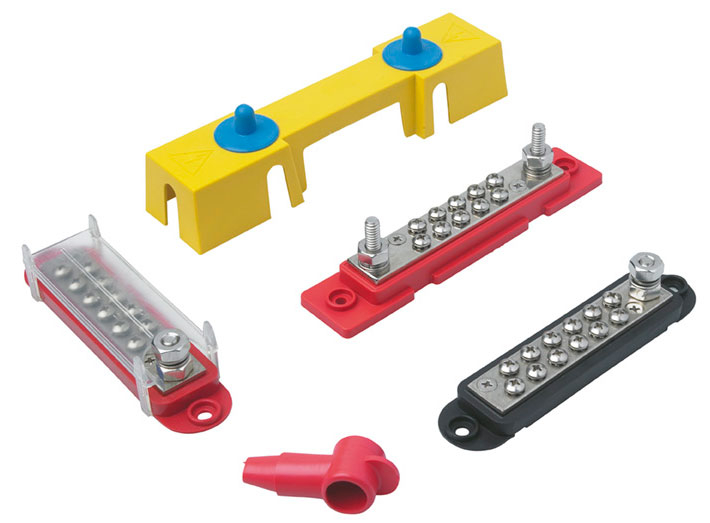

PDP131 Bus Bar Positive Red 10 Point 2x6mm Post 10 Way - Positive 2 x M6 Studs & 10 Screw Red 200
PDP132 Bus Bar Negative Black 10 Point 2x6mm Post 10 Way - Negative 2 x M6 Studs & 10 Screw Black 200
PDP133 Cover 10 Point Bus Bar Yellow ClIP Fit Over Bus Bar Cover for 10 Way n/a Yellow n/a
PDP134 Bus Bar Positive Red 12 Point 6mm Post 12 Way - Positive 2 x M6 Studs & 12 Screw Red 240
PDP135 Bus Bar Negative Black 12 Point 6mm Post 12 Way - Negative 2 x M6 Studs & 12 Screw Black 240
