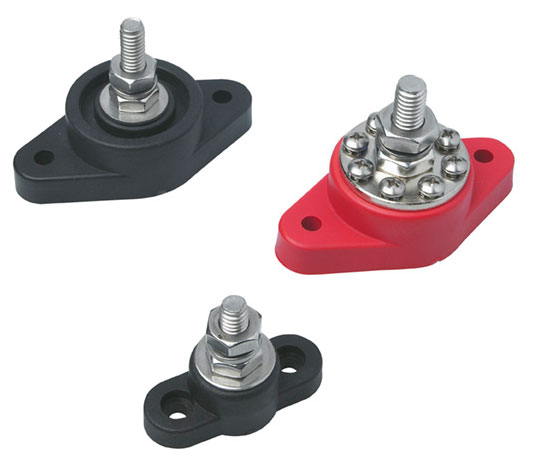

Power Distribution Posts

Power Distribution Posts

Description / Application: Suitable for either chassis or bulkhead mounting this device enables multiple power connections to be made at one point. Negative (black) versions can also be used as a common earthing point.

Features: The range of posts have various stud sizes from M6mm to M10mm. The 8 Point and Single Point Distribution Posts are available in both Red and Black.

Material: Glass filled PA6 (nylon), stainless steel threaded stud and zinc plated copper contact plate.

Voltage: Up to 48V

Part Number Description Type Stud Thread Colour Rating (Amps)
PDP119 Power Distribution Post Red M6 Stud Small Base Single Stud Small base M6 Red 165
PDP120 Power Distribution Post Black M6 Stud Small Base Single Stud Small base M6 Black 165
PDP121 Power Distribution Post Red M10 Stud Large Base Single Stud Large base M10 Red 165
PDP122 Power Distribution Post Black M10 Stud - Large Base Single Stud Large base M8 Black 165
PDP123 Power Distribution Post - Red M8 Stud 8 x M4 Screw Points 8 Point Distribution Post M8 Red 350
PDP124 Power Distribution Post Black M8 Stud & 8 x M4 Screw Points 8 Point Distribution Post M8 Black 350
PDP125 Power Distribution Post - Red M10 Stud & 8 x M4 Screw Points 8 Point Distribution Post M10 Red 350
PDP126 Power Distribution Post Black M10 Stud & 8 x M4 Screw Points 8 Point Distribution Post M10 Black 350
