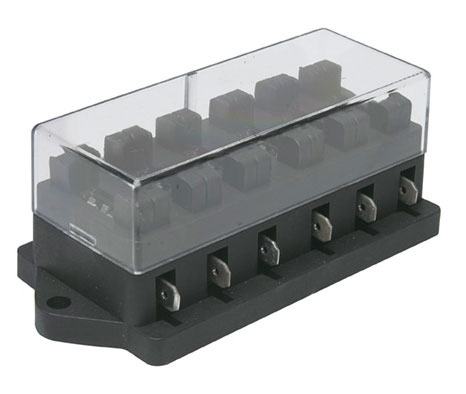

Side Entry (Recessed Terminals)

Features: This range also has 6.3mm blade terminals located on the side which are recessed into the moulding. This means that when connections are made to it using a female blade terminal, there is no need for it to be protected by a separate insulation sleeve.

Material: Polyamide 6

Part Number	Description	Type	Dimensions (mm)	Pack Qty
FBX302	Std Blade Fuse Box 2 Way 22 X 36 X 33mm Side Entry	2 Way	22 x 36 x 33	1
FBX304	Std Blade Fuse Box 4 Way 22 X 66 X 33mm Side Entry	4 Way	22 x 66 x 33	1
FBX305	Std Blade Fuse Box 5 Way 22 X 82 X 33mm Side Entry	5 Way	22 x 82 x 33	1
FBX306	Std Blade Fuse Box 6 Way 22 X 96 X 33mm Side Entry	6 Way	22 x 96 x 33	1
FBX308	Std Blade Fuse Box 8 Way 22 X 134 X 33mm Side Entry	8 Way	22 x 134 x 33	1
FBX310	Std Blade Fuse Box 10 Way 22 X 142 X 33mm Side Entry	10 Way	22 x 142 x 33	1
FBX312	Std Blade Fuse Box 12 Way 22 X 170 X 33mm Side Entry	12 Way	22 x 170 x 33	1

For Specialist Pricing Please Call Our Sales Line on 01527 598050 and Request a Quotation
