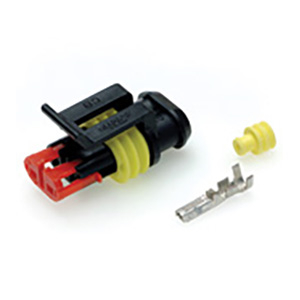

Superseal Connectors

Superseal Connectors

Description/Application:

Superseal in-line Connectors are compact high quality connectors designed for applications where a waterproof joint (IP67) is required in a harness assembly. Widely used in all types of vehicle applications both along the chassis and around the engine environment.

  • The range is available from 1 way to 6 way and for cable sizes 0.5mm² to 1.5mm².
  • Supplied in male or female kit form, comprising of the housing, terminals and seals as appropriate
  • For volume users we can supply in component parts.
  • Can be connected to harness applications using corrugated conduit with the Schlemmer range of connector interfaces.

Material:

Housings          PA66 GF

Seals                Silicon

Terminals          Brass with Tin Plate

Part Number Description Description Cable Size (mm Pack Qty
SSM101 Superseal 1 way Connector Kit Male for 0.50-1.50mm cable 1 Way Male Connector Kit 0.50 to 1.50 1
SSF101 Superseal 1 way Connector Kit Female for 0.50-1.50mm cable 1 Way Female Connector Kit 0.50 to 1.50 1
SSM102 Superseal 2 way Connector Kit Male for 0.50-1.50mm cable 2 Way Male Connector Kit 0.50 to 1.50 1
SSF102 Superseal 2 way Connector Kit Female for 0.50-1.50mm cable 2 Way Female Connector Kit 0.50 to 1.50 1
SSM103 Superseal 3 way Connector Kit Male for 0.50-1.50mm cable 3 Way Male Connector Kit 0.50 to 1.50 1
SSF103 Superseal 3 way Connector Kit Female for 0.50-1.50mm cable 3 Way Female Connector Kit 0.50 to 1.50 1
SSM104 Superseal 4 way Connector Kit Male for 0.50-1.50mm cable 4 Way Male Connector Kit 0.50 to 1.50 1
SSF104 Superseal 4 way Connector Kit Female for 0.50-1.50mm cable 4 Way Female Connector Kit 0.50 to 1.50 1
SSM105 Superseal 5 way Connector Kit Male for 0.50-1.50mm cable 5 Way Male Connector Kit 0.50 to 1.50 1
SSF105 Superseal 5 way Connector Kit Female for 0.50-1.50mm cable 5 Way Female Connector Kit 0.50 to 1.50 1
SSM106 Superseal 6 way Connector Kit Male for 0.50-1.50mm cable 6 Way Male Connector Kit 0.50 to 1.50 1
SSF106 Superseal 6 way Connector Kit Female for 0.50-1.50mm cable 6 Way Female Connector Kit 0.50 to 1.50 1
