Connector Housing Terminals

Connector Housing Terminals

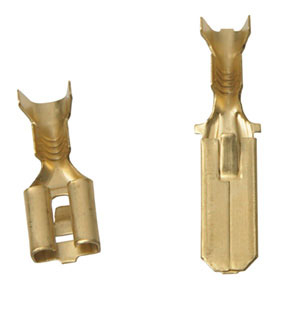

Brass Terminals

Features: For use with the Multi way Connectors these terminals have a locking tab to ensure a positive connection.

Material: Un-plated Brass

Part Number Description Type Dimensions (mm) Cable Size (mm Pack Qty
TUN106 Male Blade With Lock Tab 6.3mm For 0.5 - 1.5mm² Cable Male 6.3 x 0.8 0.5 - 1.5 50
TUN101 Female Blade With Lock Tab 6.3mm For 0.5 - 1.5mm² Cable Female 6.3 x 0.8 0.5 - 1.5 50
TUN107 Male Blade With Lock Tab 6.3mm For 1.0 - 2.5mm² Cable Male 6.3 x 0.8 0.75 - 2.0 50
TUN102 Female Blade With Lock Tab 6.3mm For 1.0 - 2.5mm² Cable Female 6.3 x 0.8 1.0 - 2.5 50
