Flat Twin Cable (Standard Wall Insulation)

Flat Twin Cable (Standard Wall Insulation)

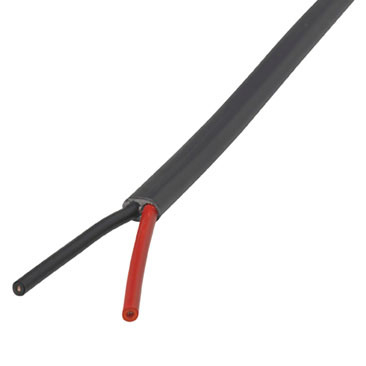

Flat Twin Standard Wall Cable

Description:- All multicore standard wall insulation cables are made up of cores which are manufactured to BS6862 Part 1 with plain copper conductors over sheathed with PVC

Individual Core Colours:- Red & Black

Temperature Range: -15ºC to +70ºC

Part Number Description CSA
(mm		 Stranding O.D
(mm)		 Current Rating
(Amps)		 Reel Sizes
(m)
FTS065-BRB-30 Standard Wall Flat Twin 0.65mm Black - Red & Black Inner 30m 2 x 0.65 9 x 0.30 6.1 x 3.8 5.75 30
FTS065-BRB-100 Std. Wall Flat Twin 0.65mm Black - Red & Black Inner 100m 2 x 0.65 9 x 0.30 6.1 x 3.8 5.75 100
FTS100-BRB-30 Standard Wall Flat Twin 1.0mm Black - Red & Black Inner 30m 2 x 1.0 14 x 0.30 6.5 x 4.0 8.75 30
FTS100-BRB-100 Standard Wall Flat Twin 1.0mm Black - Red & Black Inner 100m 2 x 1.0 14 x 0.30 6.5 x 4.0 8.75 100
FTS100-BRB-500 Standard Wall Flat Twin 1.0mm Black - Red & Black Inner 500m 2 x 1.0 14 x 0.30 6.5 x 4.0 8.75 500
FTS150-BRB-30 Standard Wall Flat Twin 1.5mm Black - Red & Black Inner 30m 2 x 1.5 30 x 0.245 7.0 x 4.1 17 30
FTS150-BRB-100 Standard Wall Flat Twin 1.5mm Black - Red & Black Inner 100m 2 x 1.5 30 x 0.245 7.0 x 4.1 17 100
FTS200-BRB-30 Standard Wall Flat Twin 2.0mm Black - Red & Black Inner 30m 2 x 2.0 28 x 0.30 7.9 x 4.8 17.5 30
FTS200-BRB-100 Standard Wall Flat Twin 2.0mm Black - Red & Black Inner 100m 2 x 2.0 28 x 0.30 7.9 x 4.8 17.5 100
FTS250-BRB-30 Standard Wall Flat Twin 2.5mm Black - Red & Black Inner 30m 2 x 2.5 50 x 0.245 8.8 x 5.2 23 30
FTS250-BRB-100 Standard Wall Flat Twin 2.5mm Black - Red & Black Inner 100m 2 x 2.5 50 x 0.245 8.8 x 5.2 23 100
FTS300-BRB-30 Standard Wall Flat Twin 3.0mm Black - Red & Black Inner 30m 2 x 3.0 44 x 0.30 9.5 x 5.7 27 30
FTS300-BRB-100 Standard Wall Flat Twin 3.0mm Black - Red & Black Inner 100m 2 x 3.0 44 x 0.3 9.5 x 5.7 27 100
FTS450-BRB-30 Standard Wall Flat Twin 4.5mm Black - Red & Black Inner 30m 2 x 4.5 65 x 0.30 11.9 x 7.0 35 30
FTS450-BRB-100 Standard Wall Flat Twin 4.5mm Black - Red & Black Inner 100m 2 x 4.5 65 x 0.30 11.9 x 7.0 35 100
