3 Core

3 Core

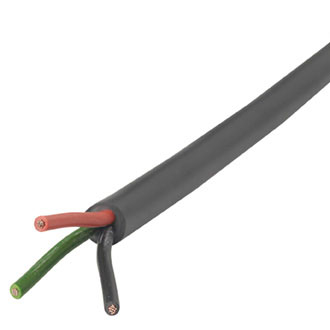

3 Core Thin Wall Multicore Cable

Description:- Individual cores are manufactured to ISO 6722 : 2002 (Class B) 105ºC with plain copper conductors over sheathed with flexible PVC.

Individual Core Colours:- Brown, Green & Red

Temperature Range: -15ºC to +70ºC

Part Number Description CSA
(mm		 Stranding O.D
(mm)		 Current Rating
(Amps)		 Reel Sizes
(m)
MT3-100-B-30 Thin Wall Round 3 Core 1.0mm Black 30 3 x 1.0 32 x 0.2 5.6 16.5 30
MT3-100-B-100 Thin Wall Round 3 Core 1.0mm Black 100 3 x 1.0 32 x 0.2 5.6 16.5 100
MT3-200-B-30 Thin Wall Round 3 Core 2.0mm Black 30 3 x 2.0 28 x 0.3 7.3 25.0 30
MT3-200-B-100 Thin Wall Round 3 Core 2.0mm Black 100 3 x 2.0 28 x 0.3 7.3 25.0 100
