2 Core

2 Core

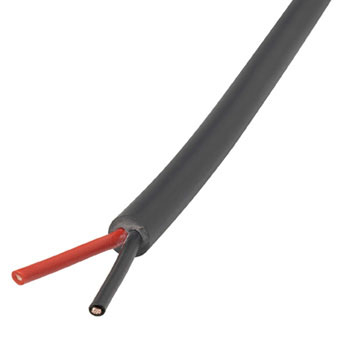

2 Core Thin Wall Multicore Cable

Description:- Individual cores are manufactured to ISO 6722 : 2002 (Class B) 105ºC with plain copper conductors over sheathed with flexible PVC.

Individual Core Colours:- Red & Black.

Temperature Range: -15ºC to +70ºC

Part Number Description CSA
(mm		 Stranding O.D
(mm)		 Current Rating
(Amps)		 Reel Sizes
(m)
MT2-075-B-30 Thin Wall Round 2 Core 0.75mm Black 30 2 x 0.75 24 x 0.2 5.5 14.0 30
MT2-075-B-100 Thin Wall Round 2 Core 0.75mm Black 100 2 x 0.75 24 x 0.2 5.5 14.0 100
MT2-100-B-30 Thin Wall Round 2 Core 1.0mm Black 30 2 x 1.0 32 x 0.2 5.7 16.5 30
MT2-100-B-100 Thin Wall Round 2 Core 1.0mm Black 100 2 x 1.0 32 x 0.2 5.7 16.5 100
MT2-200-B-30 Thin Wall Round 2 Core 2.0mm Black 30 2 x 2.0 28 x 0.3 6.7 25.0 30
MT2-200-B-100 Thin Wall Round 2 Core 2.0mm Black 100 2 x 2.0 28 x 0.3 6.7 25.0 100
