Cable Glands Cable Glands

Cable Glands





Description / Application:

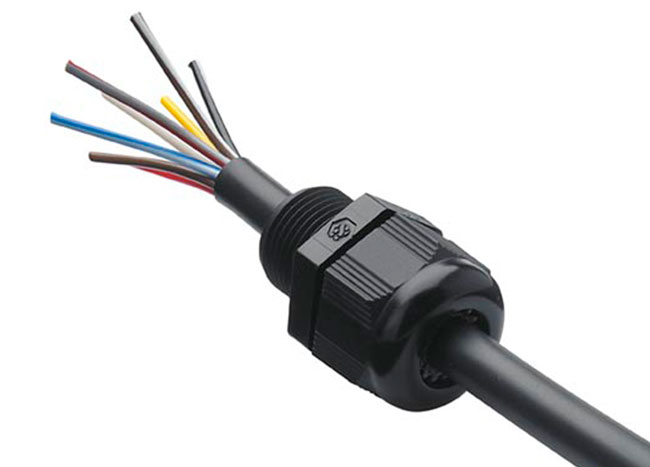

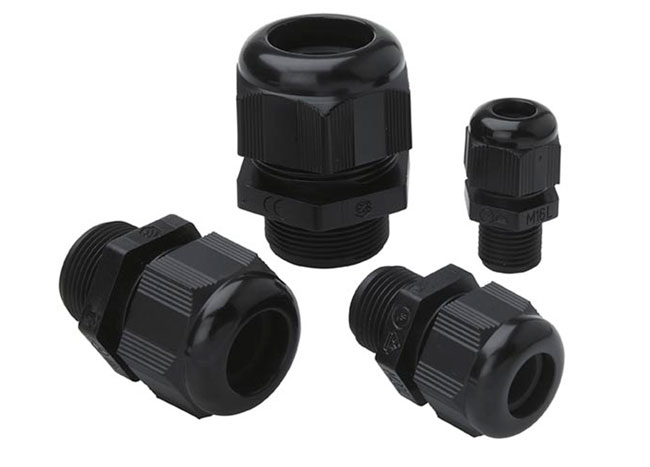

A range of high specification cable glands which are capable of sealing cables from a diameter of 2.5mm up to 48mm are available and terminated with both Metric and PG threads. Ideally suited for applications where conduit is not needed, but a termination into an enclosure or bulk head is required.


Technical Specification / Features:
Clamp design ensures maximum strain relief to cable and capnut torque is maintained to create a gas and water tight seal. The cable gland can be sealed tight to any enclosure face without the need for a separate sealing face washer.


Colour: Black


Material: PA6 (Nylon) Seals Neoprene


Temperature Range:  - 25ºC to +100ºC


Sealing Rating:  IP68 (5 bar)


Approvals: UL, CSA and VDE
Part Number Description Thread Clamping Range (mm) Thread Length (mm)
5307112 PA6 Sch-Tec Cable Gland M12L Range 2.5-6.5mm IP68 Black M12 2,5 - 6,5 15,0
5307117 PA6 Sch-Tec Cable Gland M16L Range 2.5-6.5mm IP68 Black M 16 2,5 - 6,5 15,0
5307116 PA6 Sch-Tec Cable Gland M16L Range 3.5-10mm IP68 Black M 16 3,5 - 10,0 15,0
5307121 PA6 Sch-Tec Cable Gland M20L Range 5-12mm IP68 Black M 20 5,0 - 12,0 15,0
5307120 PA6 Sch-Tec Cable Gland M20L Range 7-14mm IP68 Black M 20 7,0 - 14,0 15,0
5307126 PA6 Sch-Tec Cable Gland M25L Range 7-14mm IP68 Black M 25 7,0 - 14,0 15,0
5307125 PA6 Sch-Tec Cable Gland M25L Range 9-18mm IP68 Black M 25 9,0 - 18,0 15,0
5307132 PA6 Sch-Tec Cable Gland M32L Range 14-25mm IP68 Black M 32 14,0 - 25,0 15,0
5307140 PA6 Sch-Tec Cable Gland M40L Range 18-32mm IP68 Black M 40 18,0 - 32,0 16,0
5307150 PA6 Sch-Tec Cable Gland M50L Range 24-38.5mm IP68 Black M 50 24,0 - 38,5 16,0
5307163 PA6 Sch-Tec Cable Gland M63L Range 35-48mm IP68 Black M 63 35,0 - 48,0 16,0
5308507 PA6 Sch-Tec Cable Gland PG07 Range 2.5-6.5mm IP68 Black PG 7 2,5 - 6,5 8,0
5308509 PA6 Sch-Tec Cable Gland PG09 Range 2.5-8mm IP68 Black PG 9 2,5 - 8,0 8,0
5308511 PA6 Sch-Tec Cable Gland PG11 Range 3.5-10mm IP68 Black PG 11 3,5 - 10,0 8,0
5308513 PA6 Sch-Tec Cable Gland PG13 Range 5-12mm IP68 Black PG 13,5 5,0 - 12,0 9,0
5308516 PA6 Sch-Tec Cable Gland PG16 Range 7-14mm IP68 Black PG 16 7,0 - 14,0 10,0
5308521 PA6 Sch-Tec Cable Gland PG21 Range 9-18mm IP68 Black PG 21 9,0 - 18,0 11,0
5308529 PA6 Sch-Tec Cable Gland PG29 Range 14-25mm IP68 Black PG 29 14,0 - 25,0 11,0
5308536 PA6 Sch-Tec Cable Gland PG36 Range 18-32mm IP68 Black PG 36 18,0 - 32,0 13,0
5308537 PA6 Sch-Tec Cable Gland PG42 Range 24-38.5mm IP68 Black PG 42 24,0 - 38,5 13,0
5308538 PA6 Sch-Tec Cable Gland PG48 Range 35-48mm IP68 Black PG 48 35,0 - 48,0 14,0
