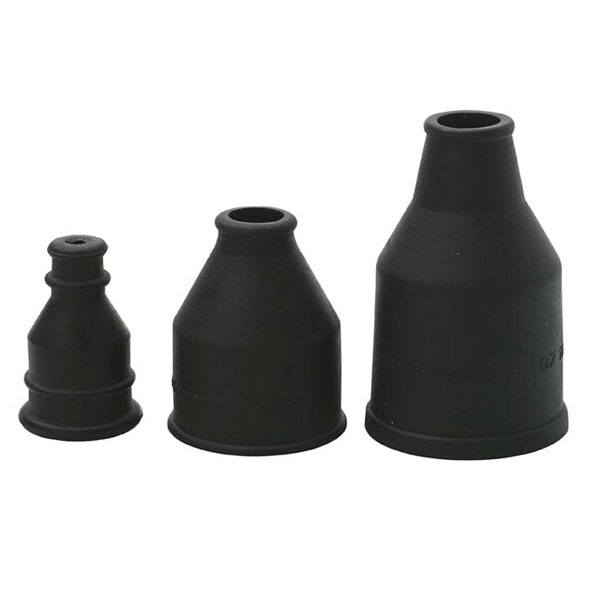

End Sleeves







Description / Application:

These products are designed to provide a means of terminating a conduit run where no other Schlemmer fittings are used. The End Sleeves are used to provide a level of sealing for either multicore cables or a larger diameter single core cable.

Technical Specification / Features:

Material: Black TPE
Temperature Range:  - 25ºC to +80ºC
Part Number Description Conduit Size (NW) Clamping Range (mm)
ES10 End Sleeve For NW10 Conduit 10 4,0 - 8,0
8500118 GZ11 End Sleeve NW14-NW17 17 5,0 - 12,0
8500134 GZ13 End Sleeve NW17 19 6,0 - 14,0
8500169 GZ16 End Sleeve NW22 22 & 23 7,0 - 17,0
8500215 GZ21 End Sleeve NW23 23 & 26 9,0 - 20,0
8500290 GZ29 End Sleeve NW29 29 & 37 16,0 - 30,0
8500363 GZ36 End Sleeve 50 23,0 - 40,0
