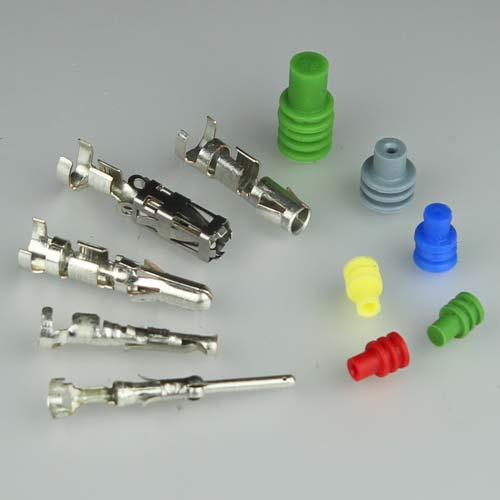

A range of crimp contacts and single wire seals (SWS) are available for use with the various Schlemmer connectors.
Tabled below are all the various types which can be used with the 8 way bayonet, 5 way in-line, 16,21,35 &37 way bayonet and the 4 pole DIN 72585 connectors.
NB:When selecting a terminal, please ensure the correct size cable is used prior to crimping.

Part Number Description Terminal Type Terminal
O.D. (mm)		 Cable Range
(mm		 For Use With
7815016 1.6mmØ Pin Contact For Cable Size 0.5 - 1.0mm² Pin Contact 1.6 0.5 to 1.0 16, 21 & 37 Way
7814009 1.6mm Ø Socket Contact For Cable Size 0.5-1.0mm² Socket Contact 1.6 0.5 to 1.0 16, 21 & 37 Way
7815018 1.6mmØ Pin Contact For Cable Size 1.0 - 2.5mm² Pin Contact 1.6 1.0 to 2.5 16, 21 & 37 Way
7814011 1.6mm Ø Socket Contact For Cable Size 1.0-1.5mm² Socket Contact 1.6 1.0 to 1.5 16, 21 & 37 Way
7815034 3.5 mm Ø Pin Contact For Cable Size 2.5 - 6.0mm² Pin Contact 3.5 2.5 to 6.0 16 & 21 Way
7814038 3.5mm Ø Socket Contact For Cable Size 2.5-6.0mm² Socket Contact 3.5 2.5 to 6.0 16 &21 Way
7815045 1.6mm Ø SWS Pin Contact For Cable Size 0.75 - 1.5mm² Pin Contact for SWS 1.6 0.75 to 1.5 SWS 5, 35 & 37 Way
7814045 1.6mm Ø SWS Socket Contact For Cable Size 0.75 - 1.5mm² Socket Contact for SWS 1.6 0.75 to 1.5 SWS 5, 35 & 37 Way
7815050 1.6mm Ø SWS Pin Contact For Cable Size 0.5 - 1.0mm² Pin Contact 1.6 0.5 to 1.0 SWS 8 Way
7814050 1.6mm Ø SWS Socket Contact For Cable Size 0.5 - 1.0mm² Socket Contact 1.6 0.5 to 1.0 SWS 8 Way
7815051 1.6mm Ø SWS Pin Contact For Cable Size 1.5 - 2.5mm² Pin Contact 1.6 1.5 to 2.5 SWS 8 Way
7814051 1.6mm Ø SWS Socket Contact For Cable Size 1.0-2.5mm² Socket Contact 1.6 1.0 to 2.5 SWS 8 Way
7815047 3.5mm Ø SWS Pin Contact For Cable Size 0.5 - 1.0mm² Pin Contact for SWS 3.5 0.5 to 1.0 SWS 8 & 35 Way
7815048 3.5mm Ø SWS Pin Contact For Cable Size 1.5 - 2.5mm² Pin Contact for SWS 3.5 1.5 to 2.5 SWS 8 & 35 Way
7814047 3.5mm Ø SWS Socket Contact For Cable Size 0.5 - 1.0mm² Socket Contact for SWS 3.5 0.5 to 1.0 SWS 8 & 35 Way
7814048 3.5mm Ø SWS Socket Contact For Cable Size 1.5 - 2.5mm² Socket Contact for SWS 3.5 1.5 to 2.5 SWS 8 & 35 Way
7814137 Single Wire Seal 4.0mmØ Hole Red - For Cable 0.75 - 1.0mm² Single Wire Seal 1.6Ø cavity 0.75 to 1.0 SWS 5, 35 & 37 Way
7814138 Single Wire Seal 4.0mmØ Hole Yellow - For Cable 1.5mm² Single Wire Seal 1.6Ø cavity 1.5 SWS 5, 35 & 37 Way
7814140 Single Wire Seal 5.2mmØ Hole Blue - For Cable 0.35 - 1.0mm² Single Wire Seal 3.5Ø cavity 0.35 to 1.0 SWS 8 & 35 Way
7814141 Single Wire Seal 5.2mmØ Hole Brown - For Cable 1.5 - 2.5mm² Single Wire Seal 3.5Ø cavity 1.5 to 2.5 SWS 8 & 35 Way
7814135 Blanking Seal 4.0mmØ Hole Green Blanking Seal 1.6Ø cavity n/a SWS 5, 35 & 37 Way
7814136 Blanking Seal 5.2mmØ Hole Brown Blanking Seal 3.5Ø cavity n/a SWS 8 & 35 Way
7814125 4 Pole SWS Socket Contact For Cable Size 0.5 - 1.0mm² Socket Contact n/a 0.5 to 1.0 4 Pole DIN 72585 Connector
7814126 4 Pole SWS Socket Contact For Cable Size 1.5 - 2.5mm² Socket Contact n/a 1.5 to 2.5 4 Pole DIN 72585 Connector
7814128 Single Wire Seal 6.7mmØ Hole Brown - For Cable 0.35 - 1.0mm Single Wire Seal 6.7Ø cavity 0.35 to1.0 4 Pole DIN 72585 Connector
7814129 Single Wire Seal 6.7mmØ Hole Grey - For Cable 1.5 - 2.5mm² Single Wire Seal 6.7Ø cavity 1.5 to 2.5 4 Pole DIN 72585 Connector
7814130 Blanking Seal 6.7mmØ Hole Green - For 4 way DIN Conn. Blanking Seal 6.7Ø cavity n/a 4 Pole DIN 72585 Connector
