37 Way

37 Way

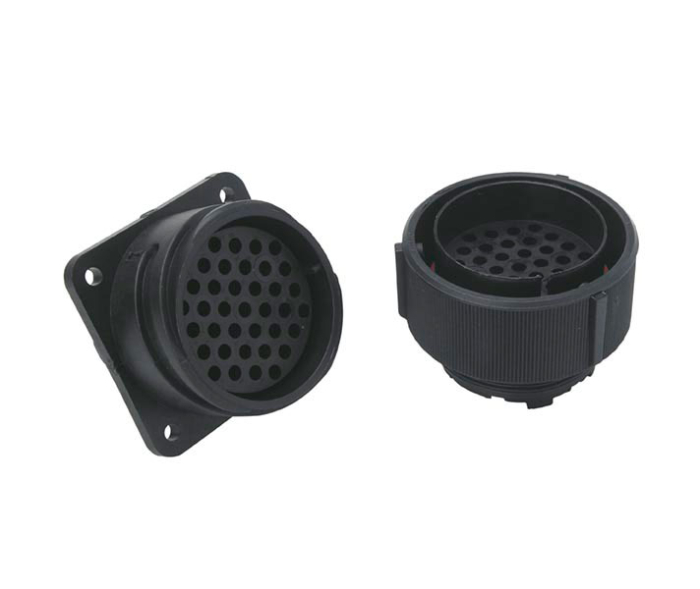

One versions of the 37 way Bayonet connector is available.  The terminal configuration is 37 x 1.6mmØ contacts.

Part Number: MPC37 has the standard contact arrangement with Pin terminals in the plug half of the connector and Socket terminals in the flanged socket half of the connector.


This connector is also available in individual component form.

NB: If ordering do not forget to add the correct pin and socket contacts which are shown on the 'Terminals & Single Wire Seals' page.
In addition the plug half of the connector is also available with single wire seal terminals Part No 7811375

Part Number Description Configuration Normal Profile
Tube A - B - C		 Suitable for use
with conduit
7811373 37 Way Male Conn. Housing 37 x 1.6mmØ Contacts 37 Way Pin Housing for pin contacts NW22/29
7812370 37 Way Socket Housing For 1.6mm Socket contacts 37 Way Flanged Socket Housing for socket contacts NW22/29
7811375 37 Way SWS Male Connector 1.6mmØ Pin or Socket Contacts 37 Way Pin Housing for single wire seal pin contacts NW22/29
7810402 37 Way Centre Ring Disc 37 Way Centre Ring Disc -
7810377 37Way Single Wire Seal Silicon Membrane Seal 37 Way Single Wire Silicon Sealing -
7810385 37 Way Backing Plate 37 Way Pressure Back Plate -
7807260 NW22 Conduit Adaptor - 21, 35 & 37 Way Bayonet Conn. NW22 Conduit Adaptor for 21/35 &37 Way Bayonet connectors NW22
7807341 NW29 Conduit Adaptor - 21, 35 & 37 Way Bayonet Conn. NW29 Conduit Adaptor for 21/35 &37 Way Bayonet connectors NW29
7807259 NW17 Conduit Adaptor - 21, 35 & 37 Way Bayonet Conn. NW17 Conduit Adaptor for 21/35 &37 Way Bayonet connectors NW17
