35 Way

35 Way

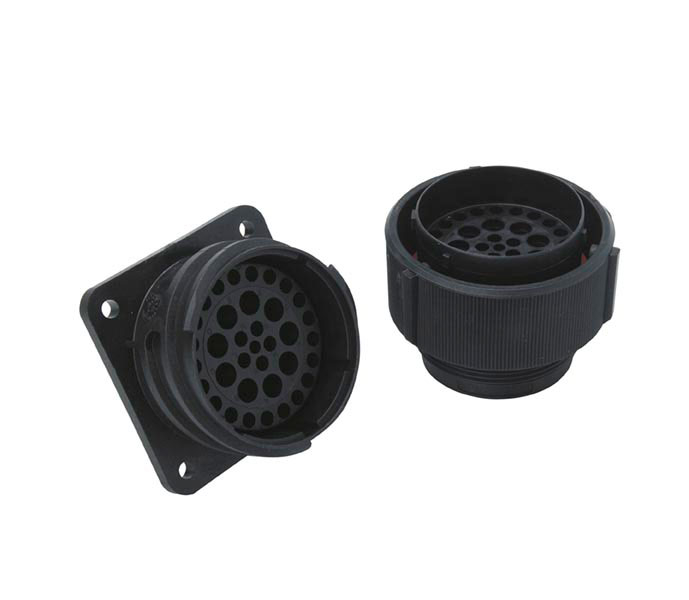

Two versions of the 35 way Bayonet connector are available. Both have the same terminal confiruration with 9 x 3.5mmØ and 26 x 1.6mmØ contacts. This connector uses single wire seals (SWS) or blanking plugs to achieve it's sealing capability.

Part Number: MPC35 has the standard contact arrangement with Pin terminals in the plug half of the connector and Socket terminals in the flanged socket half of the connector.

Part number: MRC35R is the same as the above but with the Pin and Socket terminals reversed in the housings.

Both connectors are also available in individual component form.

NB: If ordering do not forget to add the correct pin and socket contacts which are shown on the 'Terminals & Single Wire Seals' page, together with the appropriate single wire seals.

Part Number Description Configuration Normal Profile
Tube A - B - C		 Suitable for use
with conduit
MPC35 35 Way Bayonet Connector Assy Normal Pin Configuration Complete 35 Way Bayonet Connector with standard contact arrangement NW22
MPC35R 35 Way Bayonet Connector Assy Reversed Pin Configuration Complete 35 Way Bayonet Connector with contacts reversed NW22
7811222 35 Way SWS Male Conn. Housing 9 x 3.5mmØ & 26 x 1.6mmØ 35 Way Pin Housing for pin contacts (as MPC35) NW22/29
7811230 35 Way Female Conn. Housing For Male Pin Contacts 35 Way Flanged Socket Housing for socket contacts (as MPC35) NW22/29
7812218 35 Way SWS Socket Connector 9 x 3.5mmØ & 26 x 1.6mmØ 35 Way Flanged Socket Housing for pin contacts (as MPC35R) NW22/29
7812226 35 Way SWS Plug Connector For Socket Contacts 35 Way Pin Housing for socket contacts (as MPC35R) NW22/29
7810403 35 Way Centre Ring Disc 35 Way Centre Ring Disc -
7807260 NW22 Conduit Adaptor - 21, 35 & 37 Way Bayonet Conn. NW22 Conduit Adaptor for 21/35 &37 Way Bayonet connectors NW22
7807341 NW29 Conduit Adaptor - 21, 35 & 37 Way Bayonet Conn. NW29 Conduit Adaptor for 21/35 &37 Way Bayonet connectors NW29
7807259 NW17 Conduit Adaptor - 21, 35 & 37 Way Bayonet Conn. NW17 Conduit Adaptor for 21/35 &37 Way Bayonet connectors NW17
