21 Way 21 Way

21 Way

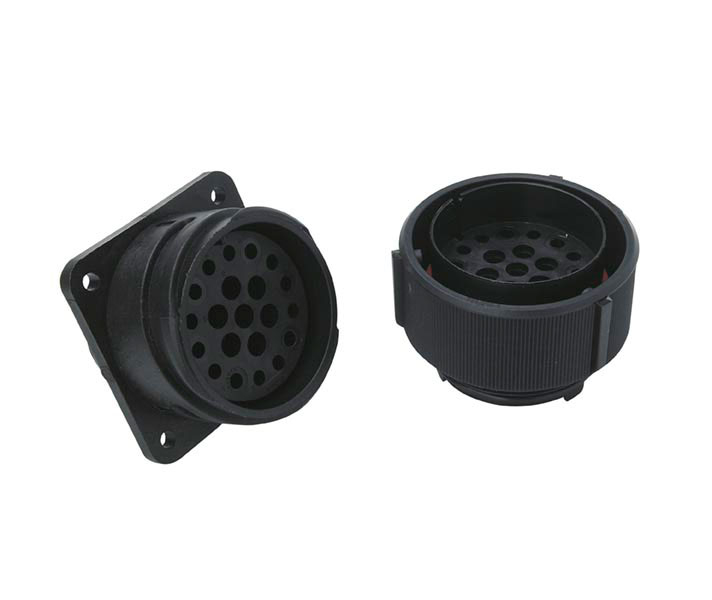

Two versions of the 21 way Bayonet connector are available. Both have the same terminal confiruration with 7 x 3.5mmØ and 14 x 1.6mmØ contacts.

Part Number: MPC21 has the standard contact arrangement with Pin terminals in the plug half of the connector and Socket terminals in the flanged socket half of the connector.

Part number: MRC21R is the same as the above but with the Pin and Socket terminals reversed in the housings.

Both connectors are also available in individual component form.

NB: If ordering do not forget to add the correct pin and socket contacts which are shown on the 'Terminals & Single Wire Seals' page.

Part Number Description Configuration Normal Profile
Tube A - B - C		 Suitable for use
with conduit
MPC21 21 Way Bayonet Connector Assy Normal Pin Configuration Complete 21 Way Bayonet Connector with standard contact arrangement NW22
MPC21R 21 Way Bayonet Connector Assy Reversed Pin Configuration Complete 21 Way Bayonet Connector with contacts reversed NW22
7811217 21 Way Male Connector Housing 7 x 3.5mmØ & 14 x 1.6mmØ 21 Way Pin Housing for pin contacts (as MPC21) NW22/29
7812213 21Way Female Conn. Housing 7 x 3.5mmØ & 14 x 1.6mmØ 21 Way Flanged Socket Housing for socket contacts (as MPC21) NW22/29
7811225 21 Way Female Conn. Housing For Male Pin Contacts 21 Way Flanged Socket Housing for pin contacts (as MPC21R) NW22/29
7812221 21Way Male Connector Housing For Female Socket Contacts 21 Way Pin Housing for socket contacts (as MPC21R) NW22/29
7810210 21Way Single Wire Seal Silicon Membrane Seal 21 Way Single Wire Silicon Sealing -
7810393 21 Way Backing Plate 21 Way Pressure Back Plate -
7810401 21 Way Centre Ring Disc 21 Way Centre Ring Disc -

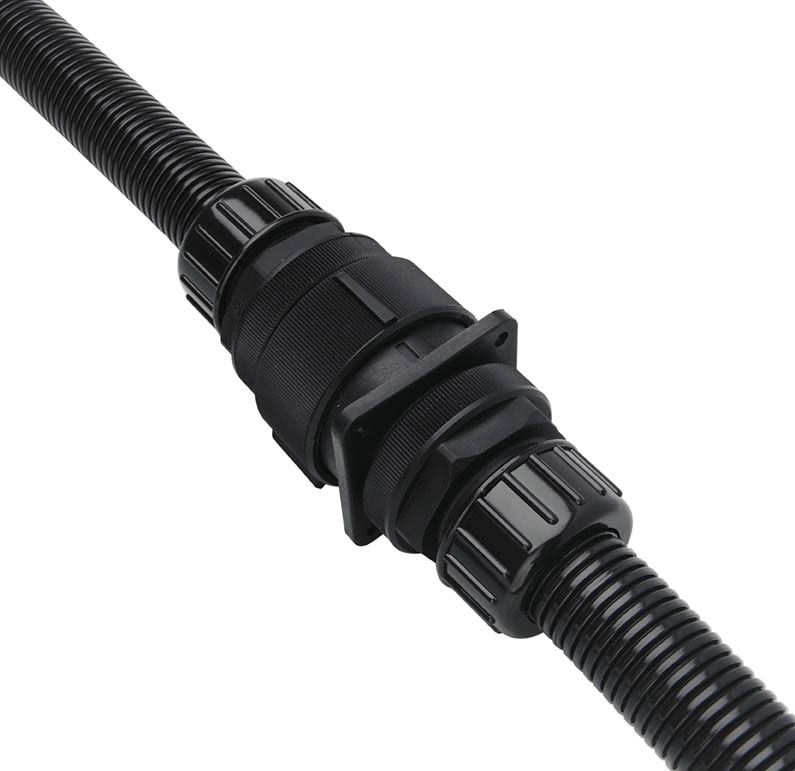

7807260 NW22 Conduit Adaptor - 21, 35 & 37 Way Bayonet Conn. NW22 Conduit Adaptor for 21/35 &37 Way Bayonet connectors NW22
7807341 NW29 Conduit Adaptor - 21, 35 & 37 Way Bayonet Conn. NW29 Conduit Adaptor for 21/35 &37 Way Bayonet connectors NW29
7807259 NW17 Conduit Adaptor - 21, 35 & 37 Way Bayonet Conn. NW17 Conduit Adaptor for 21/35 &37 Way Bayonet connectors NW17
