16 Way

16 Way

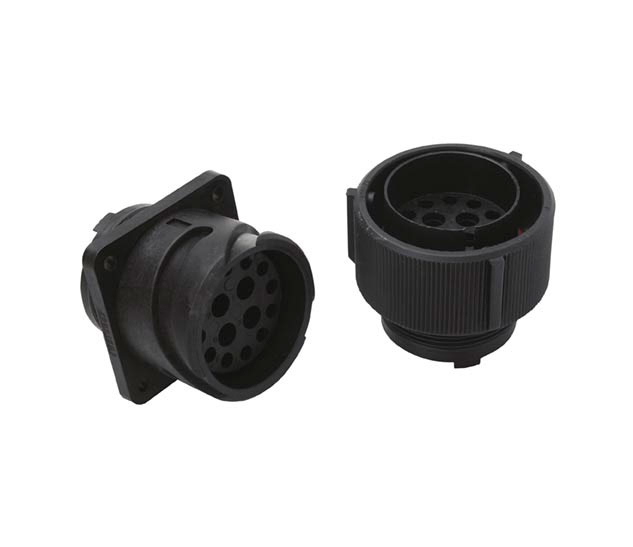

Two versions of the 16 way Bayonet connector are available. Both have the same terminal confiruration with 4 x 3.5mmØ and 12 x 1.6mmØ contacts.

Part Number: MPC16 has the standard contact arrangement with Pin terminals in the plug half of the connector and Socket terminals in the flanged socket half of the connector.

Part number: MRC16R is the same as the above but with the Pin and Socket terminals reversed in the housings.

Both connectors are also available in individual component form.

NB: If ordering do not forget to add the correct pin and socket contacts which are shown on the 'Terminals & Single Wire Seals' page.

Part Number Description Configuration Normal Profile
Tube A - B - C		 Suitable for use
with conduit
MPC16 16 Way Bayonet Connector Assy Normal Pin Configuration Complete 16 Way Bayonet Connector with standard contact arrangement NW22
MPC16R 16 Way Bayonet Connector Assy Reversed Pin Configuration Complete 16 Way Bayonet Connector with contacts reversed. NW22
7811160 16 Way Male Connector Housing For Pin Contacts 16 Way Pin Housing for pin contacts (as MPC16) NW22
7811163 16 Way Female Connector Housing For Pin Contacts 16 Way Flanged Socket Housing for socket contacts (as MPC16) NW22
7812162 16 Way Male Plug Connector Housing For Socket Contacts 16 Way Pin Housing for socket contacts (as MPC16R) NW22
7812167 16 Way Female Socket Housing For Socket Contacts 16 Way Flanged Socket housing for pin contacts (as MPC16R) NW22
7810400 16 Way Centre Ring Disc 16 Way Centre Ring Disc -
7810164 16 Way Single Wire Seal Silicon Membrane Seal 16 Way Single Wire Silicon Sealing -
7810394 16 Way Backing Plate 16 Way Pressure Back Plate -
7807163 NW22 Conduit Adaptor - 16 Way Bayonet Connector NW22 Conduit Adaptor for 16 Way Bayonet Connector NW22
