Description / Application:

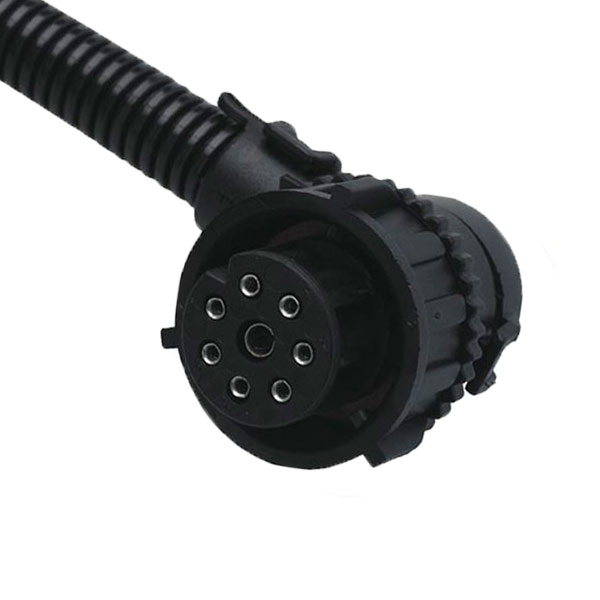

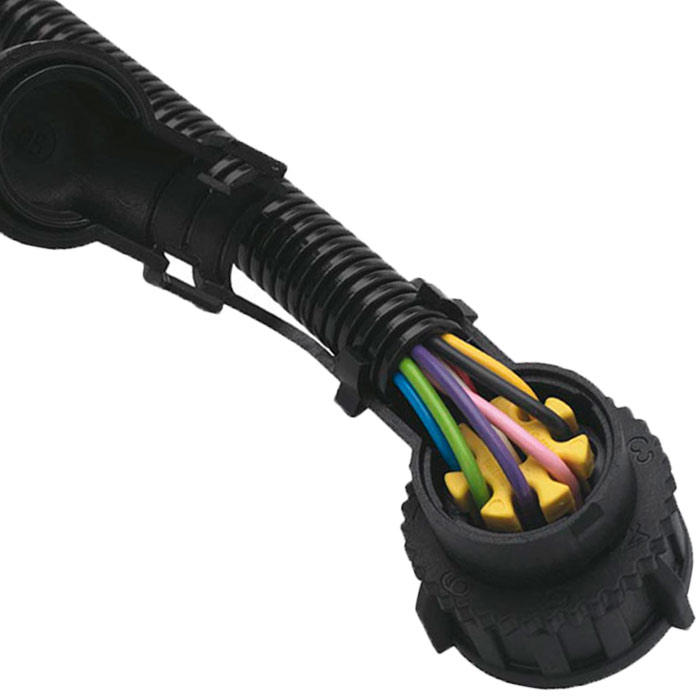

An 8 way 16s bayonet connector, available with either a straight or 90 degree connection, sealed to IP67 and suitable for connecting to NW10 conduit. Idealy suited for rear light applications on commercial vehicles. It can also be used together with MPC08S. Both have the same terminal arrangement for 7 x 1.6mmØ & 1 x 3.5mmØ socket contacts. Available as a complete assembly including contacts and seals or as individual parts. Details of the individual contacts and seals can be found on the 'Terminals & Single Wire Seals' page.

Technical Specification:

Material: PA66 (Nylon) Housings, Neoprene & Silicon Seals. Tin plated Phosphur Bronze Terminals.

Colour: Black

Temperature Range:  - 25ºC to +80ºC

Sealing Rating: IP67

Part Number Description Configuration Normal Profile
Tube A - B - C
Conduit Size (NW)
MPC08P-90 8 Way Bayonet Plug Connector 90 Deg Assembley Complete 8 Way 90 deg. Bayonet Socket Connector with contacts & seals 10
MPC08P-S 8 Way Bayonet Plug Connector Straight Assembley Complete 8 Way Straight Bayonet Plug Connector with contacts & seals 10
9800680 8 Way SWS Bayonet Conn. Plug With 90° Swivel to NW10 (7+1) 8 Way 90 deg. Bayonet Plug Connector - Body Only 10
9800681 8 Way SWS Bayonet Conn. Plug With Straight to NW10 (7+1) 8 Way Straight Bayonet Plug Connector - Body Only 10
7807506 8 Way Secondary Lock Socket Contacts 8 Way Bayonet Connector Secondary Lock 10
