Description / Application:

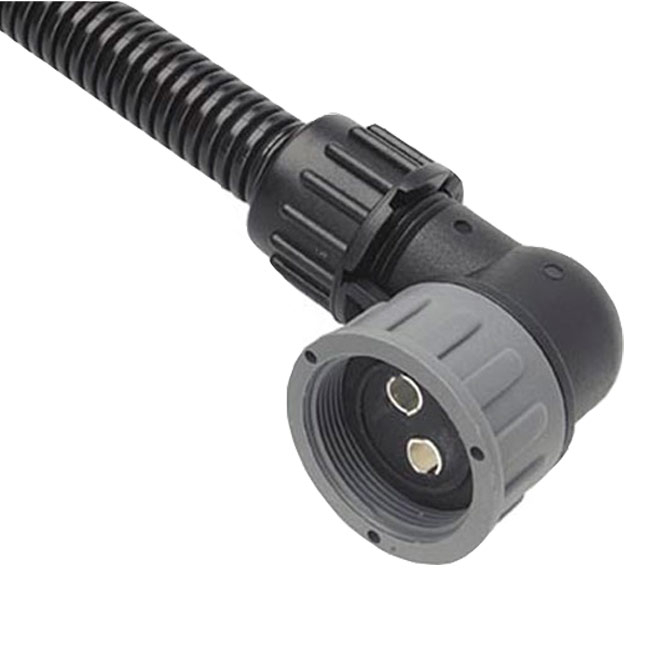

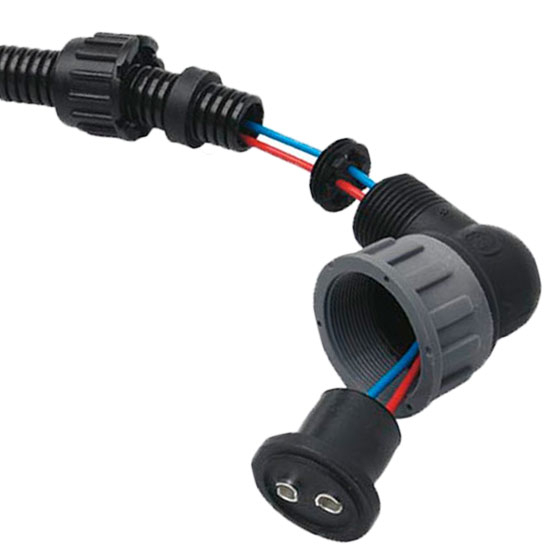

Available in both straight and 90° swivel form this range of connectors interface directly with solenoid switch connectors that have either M27, M24 or 16s bayonet connection point. 2, 3 & 4 pin versions are available, either as complete kits or in individual components. They are all suitable for use with NW 10 normal profile conduits.

Technical Specification / Features:

Material: PA66 (Nylon) Housings, Neoprene seals & brass nickel plated contacts

Temperature Range:  - 25ºC to +80ºC

Sealing Rating: IP67

Features: suitable for  2, 3 and 4 pin solenoid switches

Part Number Description Connection Type Type of Fitting Number of Pins
SCM24-90-2 2 Pole Solenoid Connector M24 90 Deg Swivel Assembley M24 - 90° Kit 2
SCM24-90-3 3 Pole Solenoid Connector M24 90 Deg Swivel Assembley M24 - 90° Kit 3
SCM27-90-2 2 Pole Solenoid Connector M27 90 Deg Swivel Assembley M27 - 90° Kit 2
SCM27-90-3 3 Pole Solenoid Connector M27 90 Deg Swivel Assembley M27 - 90° Kit 3
SCM27-90-4 4 Pole Solenoid Connector M27 90 Deg Swivel Assembley M27 - 90° Kit 4
SCM24-S-2 2 Pole Solenoid Connector M24 Straight Swivel Assembley M24 - Straight Kit 2
SCM24-S-3 3 Pole Solenoid Connector M24 Straight Swivel Assembley M24 - Straight Kit 3
SCM27-S-2 2 Pole Solenoid Connector M27 Straight Swivel Assembley M27 - Straight Kit 2
SCM27-S-3 3 Pole Solenoid Connector M27 Straight Swivel Assembley M27 - Straight Kit 3
SCM27-S-4 4 Pole Solenoid Connector M27 Straight Swivel Assembley M27 - Straight Kit 4
SCB-90-2 2 Pole Solenoid Connector 90 Deg Bayonet Swivel Assembley 16s Bayonet - 90° Kit 2
SCB-90-3 3 Pole Solenoid Connector 90 Deg Bayonet Swivel Assembley 16s Bayonet - 90° Kit 3
SCB-90-4 4 Pole Solenoid Connector 90 Deg Bayonet Swivel Assembley 16s Bayonet - 90° Kit 4
SCB-S-2 2 Pole Solenoid Connector Str't Bayonet Swivel Assembley 16s Bayonet - Straight Kit 2
SCB-S-3 3 Pole Solenoid Connector Str't Bayonet Swivel Assembley 16s Bayonet - Straight Kit 3
SCB-S-4 4 Pole Solenoid Connector Str't Bayonet Swivel Assembley 16s Bayonet - Straight Kit 4
9800101 M24 90deg Swivel Connector For NW10 Conduit Connection M24 - 90° Housing Only n/a
9800557 M24 Straight Swivel Connector For NW10 Conduit Connection M24 - Straight Housing Only n/a
9800810 M27 90° Swivel Connector Grey For NW10 Conduit Connection M27 - 90° Housing Only n/a
9800794 M27 Straight Swivel Connector For NW10 Conduit Connection M27 - Straight Housing Only n/a
9800603 16s 90° Swivel Bayonet Conn. For NW10 Conduit Connection 16s Bayonet - 90° Housing Only n/a
9800611 16s Straight Bayonet Conn. For NW10 Conduit Connection 16s Bayonet - Straight Housing Only n/a
7800592 RSG05 Sealing Grommet 2 Pole M24 Straight & 90° Sealing Pin Grommet 2
7800593 RSG06 Sealing Grommet 3 Pole M24 Straight & 90° Sealing Pin Grommet 3
7800665 RSG02 Sealing Grommet 2 Pole M27 Straight & 90° Sealing Pin Grommet 2
7800673 RSG03 Sealing Grommet 3 Pole M27 Straight & 90° Sealing Pin Grommet 3
7800681 RSG04 Sealing Grommet 4 Pole M27 Straight & 90° Sealing Pin Grommet 4
7800630 RSG02-B Sealing Grommet 2 Pole 16s Bayonet Straight & 90° Sealing Pin Grommet 2
7800622 Neoprene Housing RSG03-B 16s Bayonet Straight & 90° Sealing Pin Grommet 3
8113647 Multiple Way Single Wire Seal For NW10 Threaded Outlet M24, M27 & 16s Single Wire Sealing n/a
CN10 Cap Nut For NW10 - Black - - -
8117101 Neoprene Sealing Ring NW10 - - -
7702965 4.0mm Ø Socket Contact Solder Type - Phosphur Bronze Solder Terminal For 3 Pin housings Only n/a
7702973 4.0mm Ø Socket Contact Crimp Type 4mm Crimp Terminal For 2 & 4 Pin Housings Only n/a
