4 Pole DIN 72585 Connectors 4 Pole DIN 72585 Connectors

4 Pole DIN 72585 Connectors

Description / Application:

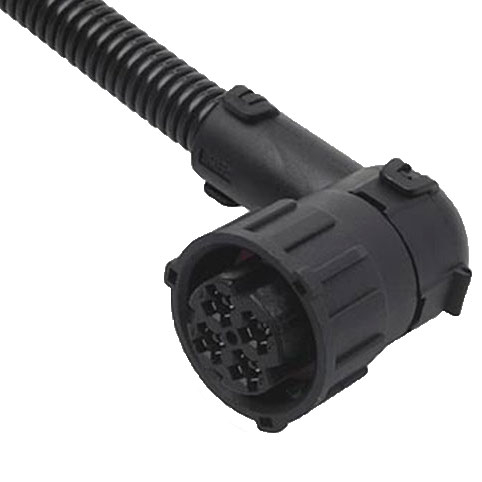

Available in both straight and 90° swivel form, either as a kit of parts or in component form, this range of connectors interface directly with the current range of DIN72585 solenoid switch connectors and NW8.5 normal profile conduit. Connection is achieved by a bayonet lock action.

Technical Specification / Features:

Material: PA66 (Nylon)

Colour: Black (with coloured insert)

Temperature Range:  - 40ºC to +120ºC

Sealing Rating: IP67

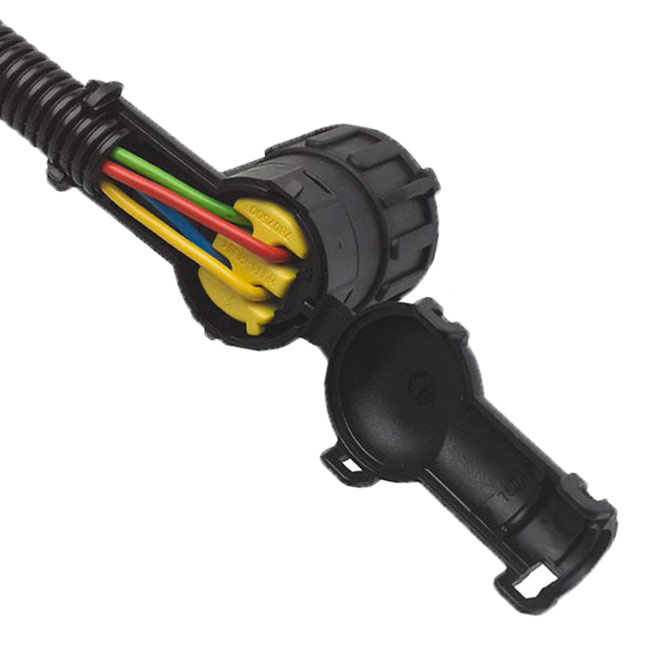

Features: Available in four different forms/colours to overcome inhibiting problems, secondary lock device and four sprung contact system to provide high connection force to the pins. Details of the contacts and seals can be found on the 'Terminals & Single Wire Seals' page.

Part Number Description Colour Type of Fitting Form
SCD-90-1 4 Pole DIN 72585 Connector Kit 90 Deg Swivel Fitting (Black) Black 90° Swivel (Kit) 1
SCD-90-2 4 Pole DIN 72585 Connector Kit 90 Deg Swivel Fitting (Grey) Grey 90° Swivel (Kit) 2
SCD-90-3 4 Pole DIN 72585 Connector Kit 90 Deg Swivel Fitting (Green) Green 90° Swivel (Kit) 3
SCD-90-4 4 Pole DIN 72585 Connector Kit 90 Deg Swivel Fitting (Blue) Blue 90° Swivel (Kit) 4
SCD-S-1 4 Pole DIN 72585 Connector Kit Straight Swivel Fitting Black Black Straight Swivel (Kit) 1
SCD-S-2 4 Pole DIN 72585 Connector Kit Straight Swivel Fitting (Grey Grey Straight Swivel (Kit) 2
SCD-S-3 4 Pole DIN 72585 Connector Kit Straight Swivel Fitting Green Green Straight Swivel (Kit) 3
SCD-S-4 4 Pole DIN 72585 Connector Kit Straight Swivel Fitting (Blue Blue Straight Swivel (Kit) 4
9800330 4 Way DIN 72585 Conn. - Black NW8.5 90° Swivel - Unvented Black 90° Swivel (Body Only) 1
9800331 4 Way DIN 72585 Conn. - Grey NW8.5 90° Swivel - Unvented Grey 90° Swivel (Body Only) 2
9800332 4 Way DIN 72585 Conn. - Green NW8.5 90° Swivel - Unvented Green 90° Swivel (Body Only) 3
9800333 4 Way DIN 72585 Conn. - Blue NW8.5 90° Swivel - Unvented Blue 90° Swivel (Body Only) 4
9800350 4 Way DIN 72585 Conn. - Black NW8.5 Straight - Unvented Black St. Swivel (Body Only) 1
9800351 4 Way DIN 72585 Conn. - Grey NW8.5 Straight - Unvented Grey St. Swivel (Body Only) 2
9800352 4 Way DIN 72585 Conn. - Green NW8.5 Straight - Unvented Green St. Swivel (Body Only) 3
9800353 4 Way DIN 72585 Conn. - Blue NW8.5 Straight - Unvented Blue St. Swivel (Body Only) 4
7807500 4 Pole Secondary Lock For DIN72585 Series Connector Yellow Secondary Lock Ring n/a
