Flexible Conduit Octainers Flexible Conduit Octainers

Flexible Conduit Octainers

Description/Application:

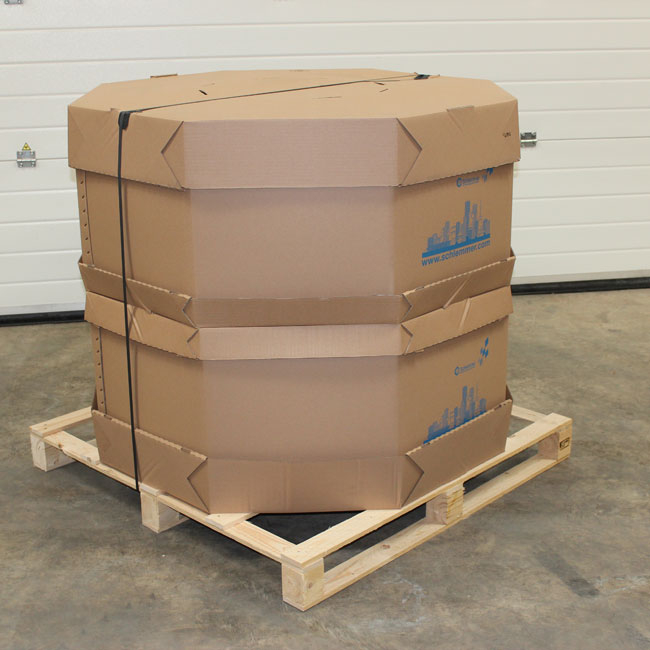

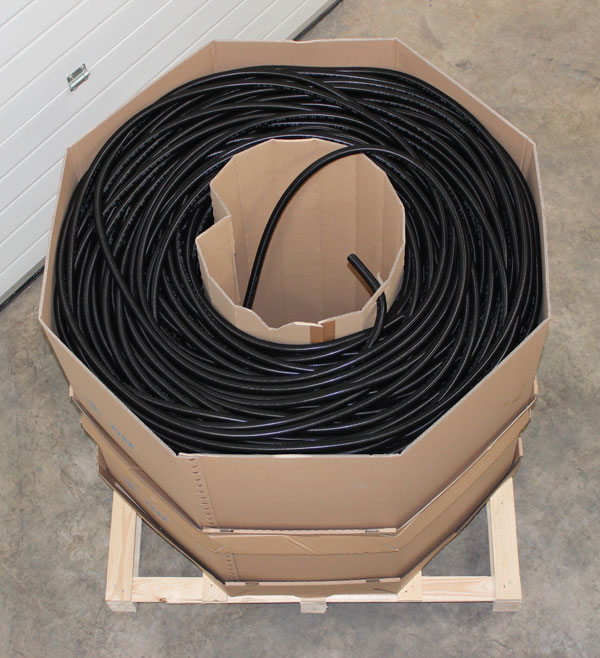

As well as being available in standard coil lengths, all conduits can be supplied in 'Octainer' form. These large octagonal shaped boxes measure 1130mm x 1130mm x 1045mm high. Each Octainer contains long continuous lengths of conduit which are ideal for volume applications or where very long lengths are required. The advantage of using conduit supplied this way is that waste is reduced. Depending on diameter there may be up to 3 lengths per Octainer.

Full details and the quantity per Octainer are given in the tabulated data below.

Octainers of other material types and sizes available on request - please call our sales team directly to discuss your specific requirements.

Part Number Description Nominal Size (NW) Material Type Dimensions (mm)
I.D. X O.D.
Qty Per Octainer (m)
1200806 NW06 Unslit PA6 Conduit Normal Profile Black 5000m Octainer 6 PA6 Normal Profile Unslit 6.0 x 9.2 5000
1200807 NW7.5 Unslit PA6 Conduit Norm. Profile Black 5000m Octainer 7.5 PA6 Normal Profile Unslit 6.7 x 10.0 5000
1200808 NW8.5 Unslit PA6 Conduit Norm. Profile Black 3300m Octainer 8.5 PA6 Normal Profile Unslit 8.4 x 11.7 3300
1200810 NW10 Unslit PA6 Conduit Normal Profile Black 3000m Octainer 10 PA6 Normal Profile Unslit 9.9 x 13.0 3000
1200812 NW12 Unslit PA6 Conduit Normal Profile Black 2200m Octainer 12 PA6 Normal Profile Unslit 12.2 x 15.7 2200
1200813 NW13 Unslit PA6 Conduit Normal Profile Black 2000m Octainer 13 PA6 Normal Profile Unslit 12.7 x 15.8 2000
1200814 NW14 Unslit PA6 Conduit Normal Profile Black 1700m Octainer 14 PA6 Normal Profile Unslit 14.2 x 18.5 1700
1200817 NW17 Unslit PA6 Conduit Normal Profile Black 1100m Octainer 17 PA6 Normal Profile Unslit 16.6 x 21.2 1100
1200819 NW19 Unslit PA6 Conduit Normal Profile Black 800m Octainer 19 PA6 Normal Profile Unslit 19.3 x 24.3 800
1200822 NW22 Unslit PA6 Conduit Normal Profile 700m Octainer 22 PA6 Normal Profile Unslit 21.3 x 25.4 700
1200823 NW23 Unslit PA6 Conduit Normal Profile Black 650m Octainer 23 PA6 Normal Profile Unslit 23.2 x 28.9 650
1200826 NW26 Unslit PA6 Conduit Normal Profile Black 600m Octainer 26 PA6 Normal Profile Unslit 25.8 x 31.2 600
1200829 NW29 Unslit PA6 Conduit Normal Profile Black 450m Octainer 29 PA6 Normal Profile Unslit 29.0 x 34.5 450
