Arnitel (TPC-EE) Normal Profile Arnitel (TPC-EE) Normal Profile

Arnitel (TPC-EE) Normal Profile

Description/Application:

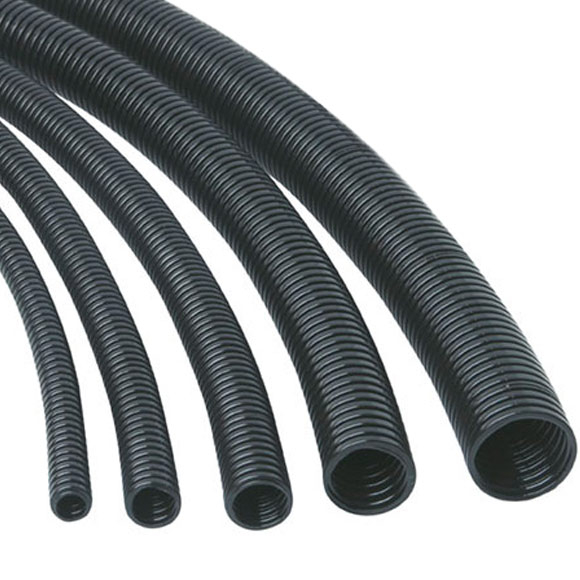

A flexible conduit manufactured from TPC-EE (Arnitel) material, suitable for harness protection on a variety of vehicle applications, but specifically around engines where high temperatures can be found.



Technical Specification

Profile: Normal

Colour: Black

Material: Thermoplastic Elastomer – with flame retardant (Halogen free)

Temperature Range: -40ºC to +175ºC

Maximum Temperature: 187 hours at +190°C

Burning Behaviour: complies to FMVSS 302:<100mm/min & burning rate 0 according to DIN75200

UV Resistance: according to DIN EN ISO 8580

Part Number Description Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.		 Qty Per Coil (m)
1211807 NW7.5 Unslit Arnitel Conduit Normal Profile Black 4.5 Unslit 4.7 x 7.1 100
1211808 NW8.5 Unslit Arnitel Conduit Normal Profile Black 8.5 Unslit 8.4 x 11.5 50
1211810 NW10 Unslit Arnitel Conduit Normal Profile Black 10 Unslit 9.7 x 12.9 50
1211811 NW13 Unslit Arnitel Conduit Normal Profile Black 13 Unslit 12.6 x 15.8 50
1211817 NW17 Unslit Arnitel Conduit Normal Profile Black 17 Unslit 16.6 x 21.2 50
1211841 NW22 Arnitel Slit Conduit Normal Profile Black 22 Slit 21.3 x 25.3 50
1211830 NW4.5 Slit Arnitel Conduit Normal Profile Black 4.5 Slit 4.7 x 7.1 100
1211831 NW7.5 Arnitel Slit Conduit Normal Profile Black 7.5 Slit 6.6 x 10.0 50
1211832 NW8.5 Arnitel Slit Conduit Normal Profile Black 8.5 Slit 8.4 x 11.5 50
1211833 NW10 Arnitel Slit Conduit Normal Profile Black 10 Slit 9.7 x 12.9 50
1211837 NW14 Slit Arnitel Conduit Normal Profile Black 14 Slit 14.2 x 18.4 50
1211839 NW17 Arnitel Slit Conduit Normal Profile Black 17 Slit 16.6 x 21.2 50
