PAER (High Temperature PA6) Ultra Flat Wave Profile PAER (High Temperature PA6) Ultra Flat Wave Profile

PAER (High Temperature PA6) Ultra Flat Wave Profile



Description/Application:

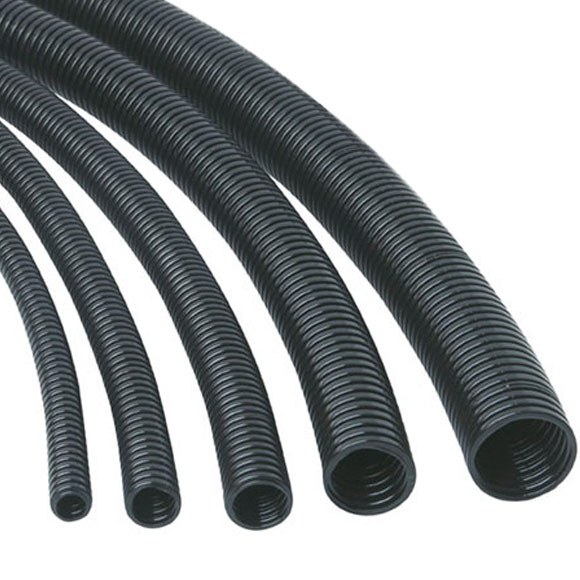

A flexible conduit manufactured from modified PA6 material, suitable for harness protection on a variety of vehicle applications, but specifically around engines where high temperatures can be found.



Technical Specification

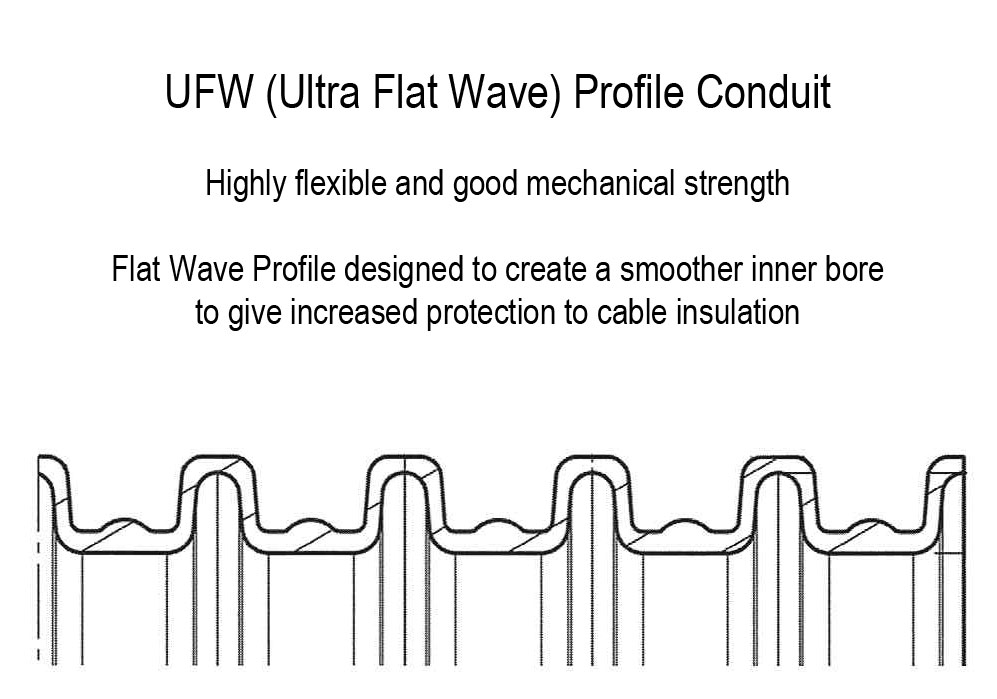

Profile: UFW (Ultra Flat Wave)

Colour: Black

Material: Modified PA6 (Halogen free)

Temperature Range: -40ºC to +150ºC

Maximum Temperature: 240 hours at +175°C

Burning Behaviour: complies to FMVSS 302, self-extinguishing & also to UL 94: HB

UV Resistance: according to DIN EN ISO 8580

Part Number Description Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.
Qty Per Coil (m)
