PAER (High Temperature PA6) High Wave Profile PAER (High Temperature PA6) High Wave Profile

PAER (High Temperature PA6) High Wave Profile

Description/Application:

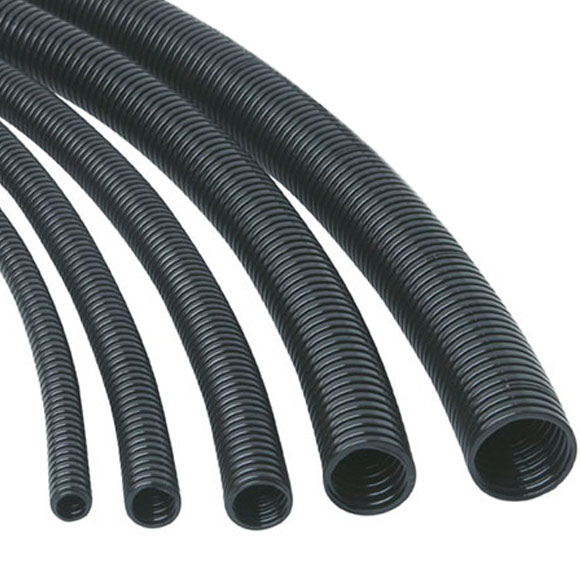

A flexible conduit manufactured from modified PA6 material, suitable for harness protection on a variety of vehicle applications, but specifically around engines where high temperatures can be found.



Technical Specification

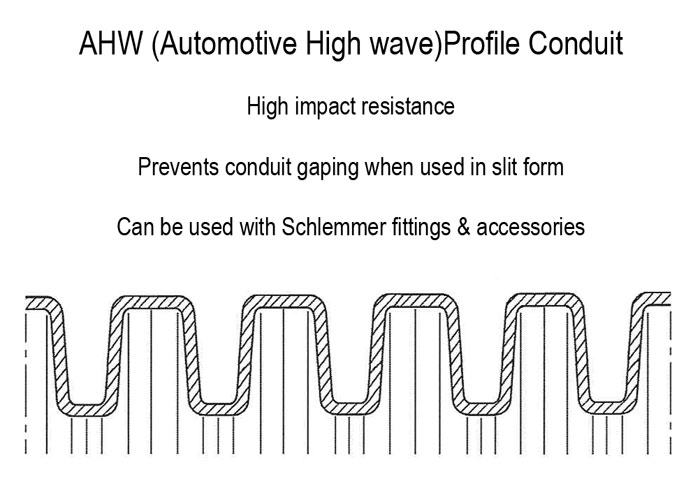

Profile: AHW (Automotive High Wave)

Colour: Black

Material: Modified PA6 (Halogen free)

Temperature Range: -40ºC to +150ºC

Maximum Temperature: 240 hours at +175°C

Burning Behaviour: complies to FMVSS 302, self-extinguishing & also to UL 94: HB

UV Resistance: according to DIN EN ISO 8580

Part Number Description Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.		 Qty Per Coil (m)
1215704 NW4.5 Unslit PAER Conduit Normal Profile Black 4.5 Unslit 5.0 x 7.1 100
1215707 NW7.5 Unslit PAER Conduit Normal Profile Black 7.5 Unslit 6.7 x 10.0 50
1215191 NW19 Slit PAER Conduit Automotive High Wave Black 19 Unslit 19.1 x 25.7 50
1215264 NW26 Slit PAER Conduit Automotive High Wave Black 26 Slit 26.3 x 31.4 25
1215804 NW4.5 Slit PAER Conduit Normal Profile Black 4.5 Slit 5.0 x 7.1 100
1215086 NW8.5 Slit PAER Conduit Automotive High Wave Black 8.5 Slit 8.5 x 12.9 50
1215159 NW15 Slit PAER Conduit Automotive High Wave Black 15 Slit 15.0 x 21.2 50
1215807 NW7.5 Slit PAER Conduit Normal Profile Black 7.5 Slit 6.7 x 10.0 50
