PAER (High Temperature PA6) Normal Profile PAER (High Temperature PA6) Normal Profile

PAER (High Temperature PA6) Normal Profile



Description/Application:

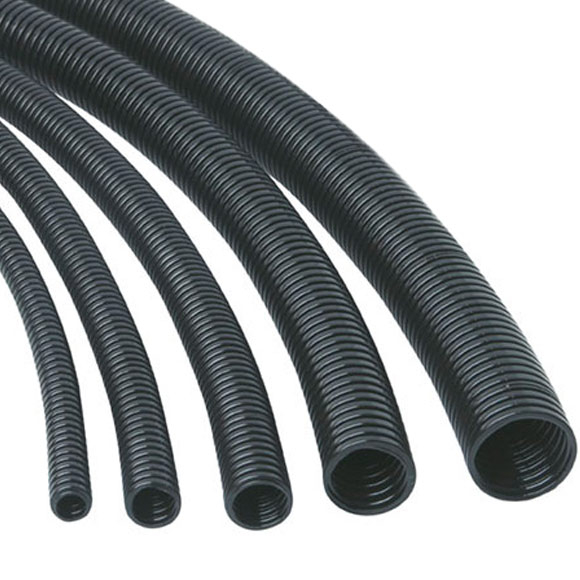

A flexible conduit manufactured from modified PA6 material, suitable for harness protection on a variety of vehicle applications, but specifically around engines where high temperatures can be found.



Technical Specification

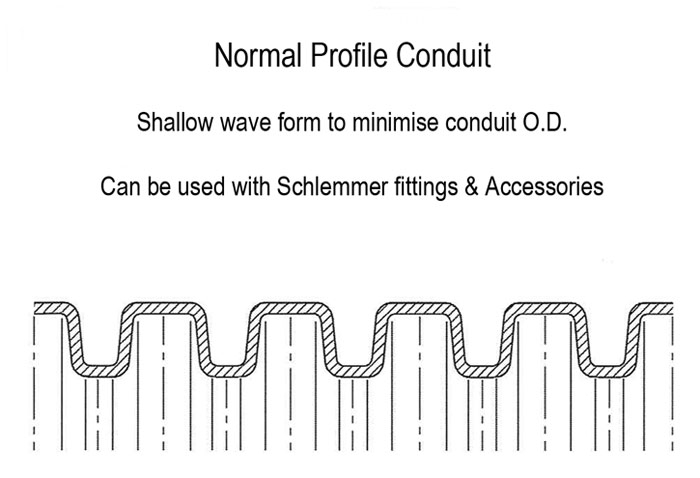

Profile: Normal

Colour: Black

Material: Modified PA6 (Halogen free)

Temperature Range: -40ºC to +150ºC

Maximum Temperature: 240 hours at +175°C

Burning Behaviour: complies to FMVSS 302, self-extinguishing & also to UL 94: HB

UV Resistance: according to DIN EN ISO 8580

Part Number Description Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.		 Qty Per Coil (m)
1215704 NW4.5 Unslit PAER Conduit Normal Profile Black 4.5 Unslit 5.0 x 7.1 100
1215707 NW7.5 Unslit PAER Conduit Normal Profile Black 7.5 Unslit 6.7 x 10.0 50
1215708 NW8.5 Unslit PAER Conduit Normal Profile Black 8.5 - 8.4 x 11.7 50
1215710 NW10 Unslit PAER Conduit Normal Profile Black 10 - 9.9 x 13.0 50
1215713 NW13 Unslit PAER Conduit Normal Profile Black 13 - 12.7 x 15.8 50
1215717 NW17 Unslit PAER Conduit Normal Profile Black 17 - 16.6 x 21.2 50
1215722 NW22 Unslit PAER Conduit Normal Profile Black 22 - 21.3 x 25.4 50
1215723 NW23 Unslit PAER Conduit Normal Profile Black 23 - 23.2 x. 28.3 50
1215726 NW26 Unslit PAER Conduit Normal Profile Black 26 - 25.8 x 31.2 25
1215729 NW29 Unslit PAER Conduit Normal Profile Black 29 - 29.0 x 34.5 25
1215804 NW4.5 Slit PAER Conduit Normal Profile Black 4.5 Slit 5.0 x 7.1 100
1215807 NW7.5 Slit PAER Conduit Normal Profile Black 7.5 Slit 6.7 x 10.0 50
1215808 NW8.5 Slit PAER Conduit Normal Profile Black 8.5 Slit 8.4 x 11.7 50
1215810 NW10 Slit PAER Conduit Normal Profile Black 10 Slit 9.9 x 13.0 50
1215812 NW12 Slit PAER Conduit Normal Profile Black - - - -
1215813 NW13 Slit PAER Conduit Normal Profile Black 13 Slit 12.7 x 15.8 50
1215817 NW17 Slit PAER Conduit Normal Profile Black 17 Slit 16.6 x 21.2 50
1215822 NW22 Slit PAER Conduit Normal Profile Black 22 Slit 21.3 x 25.4 50
1215826 NW26 Slit PAER Conduit Normal Profile Black 26 Slit 25.8 x 31.2 25
1215829 NW29 Slit PAER Conduit Normal Profile Black 29 Slit 29.0 x 34.5 25
