PPmod (High Temp PP) Normal Profile

Description/Application:

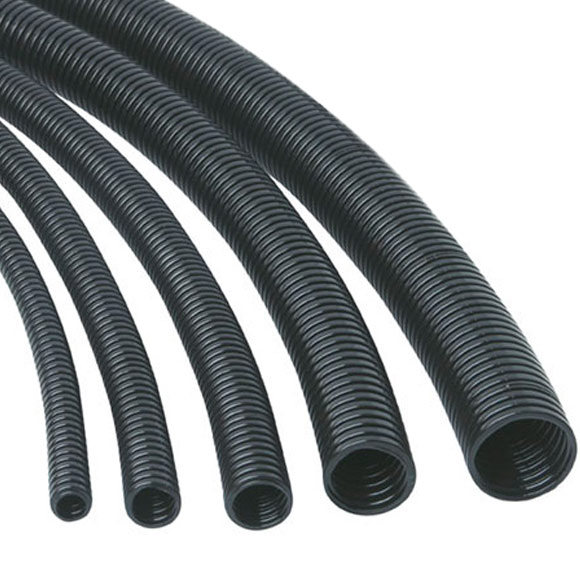

A flexible conduit manufactured from PPmod material,

suitable for harness protection on a variety of vehicle applications,

but specifically around engines where high temperatures can be found.

Technical Specification

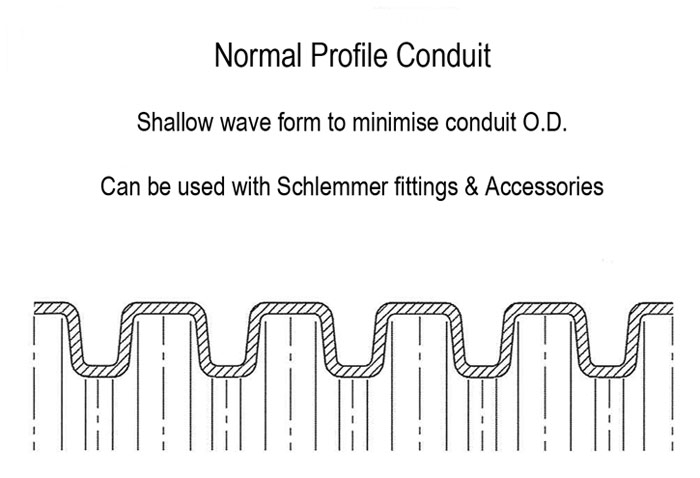

Profile: Normal

Material:
High Temperature Polypropylene

Temperature Range: -40ºC to +135ºC

Maximum Temperature: 500 hours at +150°C

Burning Behaviour: according to FMVSS 302, self extinguishing Type B and burning rate 0 according to DIN75200

UV Resistance: according to DIN EN ISO 8580

Product Prices & Dimensions

Part No Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.
Qty Per Coil (m) List Price (exc VAT)
1926004 4.5 Unsilt 5.0 x 7.1 100 £52.74 /100
1926007 7.5 Unslit 6.9 x 9.9 50 £61.35 /100
1926008 8.5 Unslit 8.5 x 11.6 50 £67.22 /100
1926100 10 Unslit 10.1 x 12.7 50 £64.10 /100
1926130 13 Unslit 12.9 x 15.8 50 £89.82 /100
1926140 14 Unslit 14.5 x 18.3 50 £108.84 /100
1926170 17 Unslit 16.8 x 21.0 50 £115.77 /100
1926220 22 Unslit 21.8 x 25.5 50 £165.65 /100
1926223 23 Unslit 23.7 x 28.0 50 £193.99 /100
1926226 26 Unslit 26.4 x 31.3 25 £229.75 /100
1926229 29 Unslit 29.3 x 33.9 25 £238.60 /100
1926237 37 Unslit 36.7 x 42.0 25 £379.62 /100
1926250 50 Unslit 47.8 x 53.6 25 £503.76 /100
1926304 4.5 Slit 5.0 x 7.1 100 £52.74 /100
1926306 N/A N/A N/A N/A £69.13 /100
1926307 7.5 Slit 6.9 x 9.9 50 £61.35 /100
1926308 8.5 Slit 8.5 x 11.6 50 £67.22 /100
1926310 10 Slit 10.1 x 12.7 50 £64.10 /100
1926312 N/A N/A N/A N/A £86.95 /100
1926313 13 Slit 12.9 x 15.8 50 £89.82 /100
1926314 14 Slit 14.5 x 18.3 50 £108.84 /100
1926316 N/A N/A N/A N/A £106.44 /100
1926317 17 Slit 16.8 x 21.0 50 £115.77 /100
1926319 N/A N/A N/A N/A £141.84 /100
1926322 22 Slit 21.8 x 25.5 50 £163.61 /100
1926323 23 Slit 23.7 x 28.0 50 £193.99 /100
1926326 26 Slit 26.4 x 31.3 25 £229.75 /100
1926329 29 Slit 29.3 x 33.9 25 £238.60 /100
1926337 37 Slit 36.7 x 42.0 25 £379.62 /100
1926350 50 Slit 47.8 x 53.6 25 £503.76 /100
