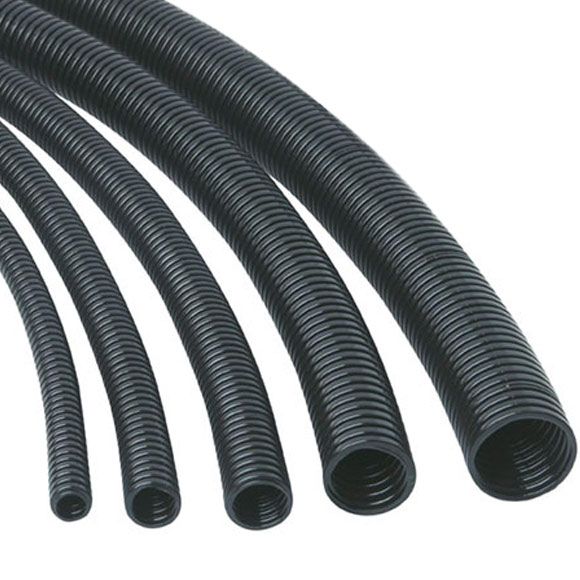

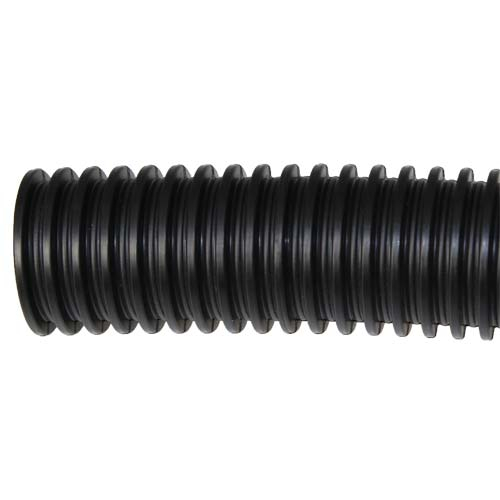

PPBS (Flame Retardant Polypropylene) UFW Profile



Description/Application:

A flexible conduit manufactured from PPBS material, suitable for harness protection on a variety of vehicle applications, but specifically the vehicle interior, chassis and body sections or where there is severe vibration. The inner profile of this conduit is much smoother than a normal profile tube and therefore does less damage to cable insulation.

Technical Specification

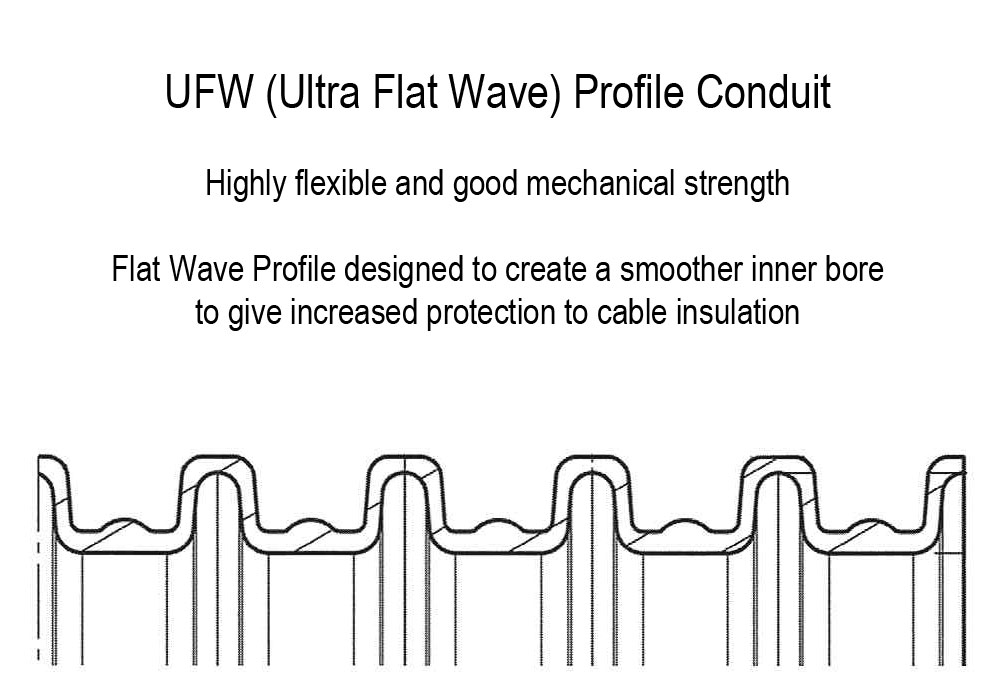

Profile: UFW (Ultra Flat Wave)

Colour: Black

Material: Flame Retardent Polypropylene

Temperature Range: -40ºC to +125ºC

Maximum Temperature: 500 hours at +135°C and 240 hours at +150°C

Burning Behaviour: according to FMVSS 302, self extinguishing Type B (for corrugated tubes)

UV Resistance: according to DIN EN ISO 8580

Other Features: Flame retardant, high cold impact strength and highly flexible.

Product Prices & Dimensions

Part No Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.
Qty Per Coil (m) List Price (exc VAT)
