PPBS (Flame Retardant Polypropylene) Normal Profile PPBS (Flame Retardant Polypropylene) Normal Profile

PPBS (Flame Retardant Polypropylene) Normal Profile

Description/Application:

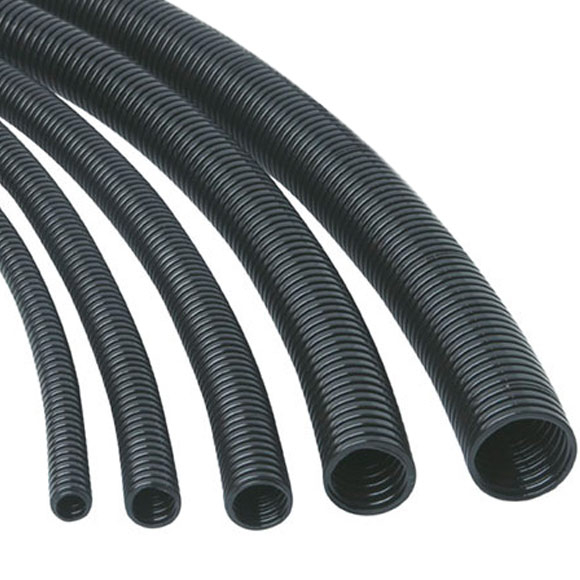

A flexible conduit manufactured from PPBS (Flame Retardant PP) material,

suitable for harness protection on a variety of vehicle applications,

but specifically the vehicle interior, chassis and body sections.

Technical Specification

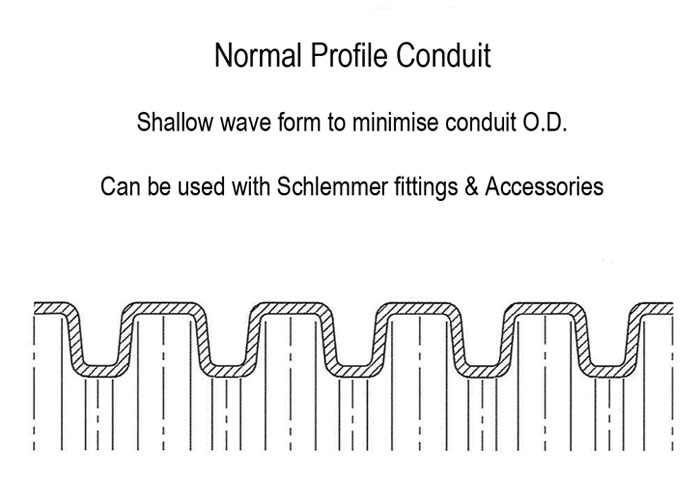

Profile: Normal

Colour: Black

Material: Flame Retardent Polypropylene

Temperature Range: -40ºC to +125ºC

Maximum Temperature: 500 hours at +135°C and 240 hours at +150°C

Burning Behaviour: according to FMVSS 302, self extinguishing Type B (for corrugated tubes)

UV Resistance: according to DIN EN ISO 8580

Other Features: Flame retardant, high cold impact strength and highly flexible.

Part Number Description Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.		 Qty Per Coil (m)
1930004 NW4.5 Unslit PPBS Conduit Normal Profile Black 4.5 Unslit 5.0 x 7.1 100
1930007 NW7.5 Unslit PPBS Conduit Normal Profile Black 7.5 Unslit 6.9 x 9.9 50
1930008 NW8.5 Unslit PPBS Conduit Normal Profile Black 8.5 Unslit 8.5 x 11.6 50
1930010 NW10 Unslit PPBS Conduit Normal Profile Black 10 Unslit 10.1 x 12.7 50
1930013 NW13 Unslit PPBS Conduit Normal Profile Black 13 Unslit 12.9 x 15.8 50
1930014 NW14 Unslit PPBS Conduit Normal Profile Black 14 Unslit 14.5 x 18.3 50
1930017 NW17 Unslit PPBS Conduit Normal Profile Black 17 Unslit 16.8 x 21.0 50
1930022 NW22 Unslit PPBS Conduit Normal Profile Black 22 Unslit 21.8 x 25.5 50
1930023 NW23 Unslit PPBS Conduit Normal Profile Black 23 Unslit 23.7 x 28.0 50
1930026 NW26 Unslit PPBS Conduit Normal Profile Black 26 Unslit 26.4 x 31.3 25
1930029 NW29 Unslit PPBS Conduit Normal Profile Black 29 Unslit 29.3 x 33.9 25
1930037 NW37 Unslit PPBS Conduit Normal Profile Black 37 Unslit 36.7 x 42.0 25
1930050 NW50 Unslit PPBS Conduit Normal Profile Black 50 Unslit 47.8 x 53.6 25
1930304 NW4.5 Slit PPBS Conduit Normal Profile Black 4.5 Slit 5.0 x 7.1 100
1930307 NW7.5 Slit PPBS Conduit Normal Profile Black 7.5 Slit 6.9 x 9.9 50
1930308 NW8.5 Slit PPBS Conduit Normal Profile Black 8.5 Slit 8.5 x 11.6 50
1930310 NW10 Slit PPBS Conduit Normal Profile Black 10 Slit 10.1 x 12.7 50
1930313 NW13 Slit PPBS Conduit Normal Profile Black 13 Slit 12.9 x 15.8 50
1930314 NW14 Slit PPBS Conduit Normal Profile Black 14 Slit 14.5 x 18.3 50
1930317 NW17 Slit PPBS Conduit Normal Profile Black 17 Slit 16.8 x 21.0 50
1930322 NW22 Slit PPBS Conduit Normal Profile Black 22 Slit 21.8 x 25.5 50
1930323 NW23 Slit PPBS Conduit Normal Profile Black 23 Slit 23.7 x 28.0 50
1930326 NW26 Slit PPBS Conduit Normal Profile Black 26 Slit 26.4 x 31.3 25
1930329 NW29 Slit PPBS Conduit Normal Profile Black 29 Slit 29.3 x 33.9 25
1930337 NW37 Slit PPBS Conduit Normal Profile Black 37 Slit 36.7 x 42.0 25
1930350 NW50 Slit PPBS Conduit Normal Profile Black 50 Slit 47.8 x 53.6 25
