PP Std - AHW (High Wave) Profile PP Std - AHW (High Wave) Profile

PP Std - AHW (High Wave) Profile



Description/Application:

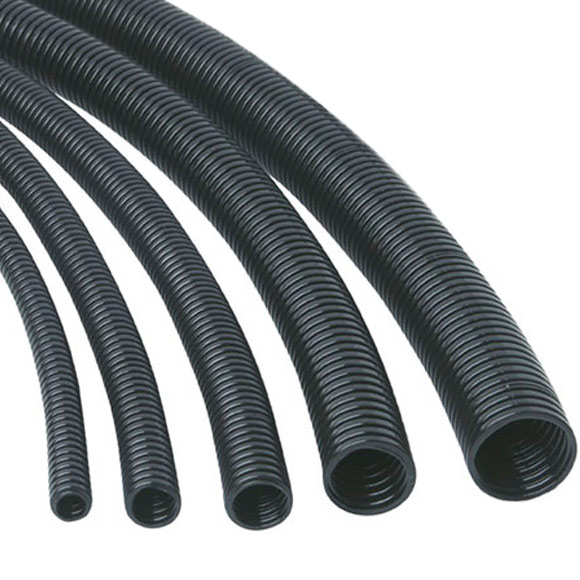

A flexible conduit manufactured from PP material, suitable for harness protection on a variety of vehicle applications, but specifically the vehicle interior, chassis and body sections. In slit form this product does not gape open to expose wires when bent back on itself.

Technical Specification

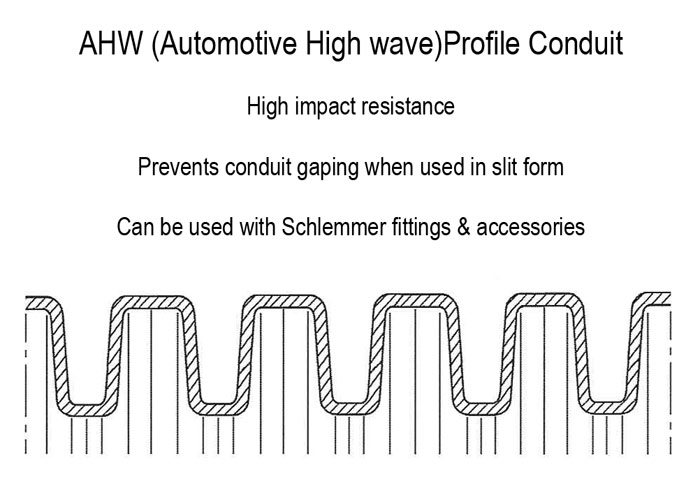

Profile: AHW (Automotive High Wave)

Colour: Black

Material: Polypropylene

Temperature Range: -40ºC to +105ºC

Maximum Temperature: 350 hours at +135°C

Burning Behaviour: according to FMVSS 302 <100mm/min

UV Resistance: according to DIN EN ISO 8580

Part Number Description Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.		 Qty Per Coil (m)
1926604 NW4.5 Unslit PP Conduit Normal Profile Black 4.5 Unslit 5.0 x 7.1 100
1926607 NW7.5 Unslit PP Conduit Normal Profile Black 7.5 Unslit 6.9 x 9.9 50
1927968 NW8.5 Unslit PP Conduit Automotive High Wave Black 8.5 Unslit 8.5 x 12.9 50
1927971 NW11 Unslit PP Conduit Automotive High Wave Black 11 Unslit 11.1 x 15.7 50
1927975 NW15 Unslit PP Conduit Automotive High Wave Black 15 Unslit 15.0 x 21.2 50
1927979 NW19 Unslit PP Conduit Automotive High Wave Black 19 Unslit 19.1 x 25.7 50
1927987 NW26S Unslit PP Conduit Automotive High Wave Black 26 Unslit 26.3 x 31.4 25
1926654 NW4.5 Slit PP Conduit Normal Profile Black 4.5 Slit 5.0 x 7.1 100
1926657 NW7.5 Slit PP Conduit Normal Profile Black 7.5 Slit 6.9 x 9.9 50
1927908 NW8.5 Slit PP Conduit Automotive High Wave Black 8.5 Slit 8.5 x 12.9 50
1927911 NW11 Slit PP Conduit Automotive High Wave Black 11 Slit 11.1 x 15.7 50
1927915 NW15 Slit PP Conduit Automotive High Wave Black 15 Slit 15.0 x 21.2 50
1927919 NW19 Slit PP Conduit Automotive High Wave Black 19 Slit 19.1 x 25.7 50
1927927 NW26S Slit PP Conduit Automotive High Wave Black 26 Slit 26.3 x 31.4 25
1927934 NW34 Slit PP Conduit Automotive High Wave Black 34 Slit 34.1 x 39.5 25
