PP Standard - Normal Profile PP Standard - Normal Profile

PP Standard - Normal Profile

Description/Application:

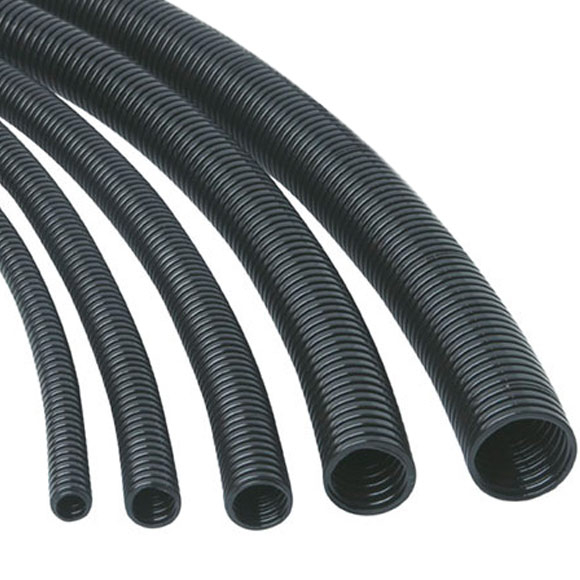

A flexible conduit manufactured from PP material, suitable for harness protection on a variety of vehicle applications, but specifically the vehicle interior, chassis and body sections.

Technical Specification

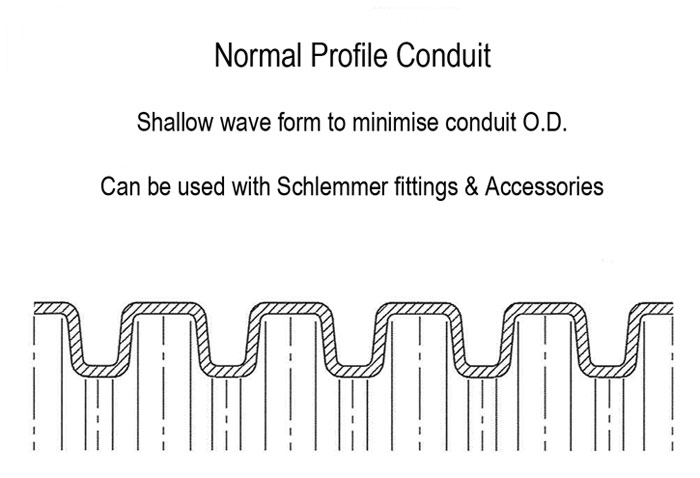

Profile: Normal

Colour: Black

Material: Polypropylene

Temperature Range: -40ºC to +105ºC

Maximum Temperature: 350 hours at +135°C

Burning Behaviour: according to FMVSS 302 <100mm/min

UV Resistance: according to DIN EN ISO 8580

Part Number Description Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.		 Qty Per Coil (m)
1926604 NW4.5 Unslit PP Conduit Normal Profile Black 4.5 Unslit 5.0 x 7.1 100
1926607 NW7.5 Unslit PP Conduit Normal Profile Black 7.5 Unslit 6.9 x 9.9 50
1926608 NW8.5 Unslit PP Conduit Normal Profile Black 8.5 Unslit 8.5 x 11.6 50
1926610 NW10 Unslit PP Conduit Normal Profile Black 10 Unslit 10.1 x 12.7 50
1926613 NW13 Unslit PP Conduit Normal Profile Black 13 Unslit 12.9 x 15.8 50
1926614 NW14 Unslit PP Conduit Normal Profile Black 14 Unslit 14.5 x 18.3 50
1926617 NW17 Unslit PP Conduit Normal Profile Black 17 Unslit 16.8 x 21.0 50
1926622 NW22 Unslit PP Conduit Normal Profile Black 22 Unslit 21.8 x 25.5 50
1926623 NW23 Unslit PP Conduit Normal Profile Black 23 Unslit 23.7 x 28.0 50
1926626 NW26 Unslit PP Conduit Normal Profile Black 26 Unslit 26.4 x 31.3 25
1926629 NW29 Unslit PP Conduit Normal Profile Black 29 Unslit 29.3 x 33.9 25
1926637 NW37 Unslit PP Conduit Normal Profile Black 37 Unslit 36.7 x 42.0 25
1926650 NW50 Unslit PP Conduit Normal Profile Black 50 Unslit 47.8 x 53.6 25
1926654 NW4.5 Slit PP Conduit Normal Profile Black 4.5 Slit 5.0 x 7.1 100
1926657 NW7.5 Slit PP Conduit Normal Profile Black 7.5 Slit 6.9 x 9.9 50
1926658 NW8.5 Slit PP Conduit Normal Profile Black 8.5 Slit 8.5 x 11.6 50
1926660 NW10 Slit PP Conduit Normal Profile Black 10 Slit 10.1 x 12.7 50
1926662 NW12 Slit PP Conduit Normal Profile Black - - - -
1926663 NW13 Slit PP Conduit Normal Profile Black 13 Slit 12.9 x 15.8 50
1926664 NW14 Slit PP Conduit Normal Profile Black 14 Slit 14.5 x 18.3 50
1926667 NW17 Slit PP Conduit Normal Profile Black 17 Slit 16.8 x 21.0 50
1926672 NW22 Slit PP Conduit Normal Profile Black 22 Slit 21.8 x 25.5 50
1926673 NW23 Slit PP Conduit Normal Profile Black 23 Slit 23.7 x 28.0 50
1926676 NW26 Slit PP Conduit Normal Profile Black 26 Slit 26.4 x 31.3 25
1926679 NW29 Slit PP Conduit Normal Profile Black 29 Slit 29.3 x 33.9 25
1926687 NW37 Slit PP Conduit Normal Profile Black 37 Slit 36.7 x 42.0 25
1926690 NW50 Slit PP Conduit Normal Profile Black 50 Slit 47.8 x 53.6 25
