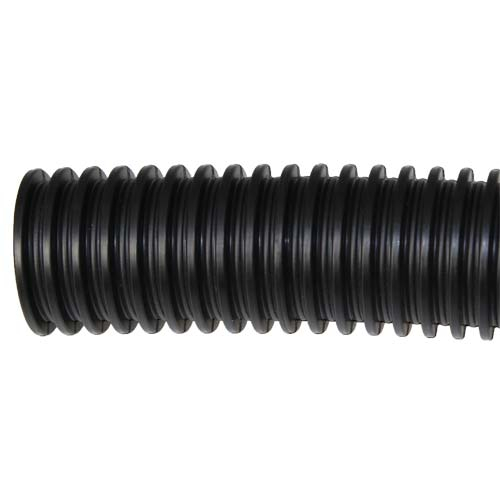

PA6 - UFW (Ultra Flat Wave) Profile

Description/Application:

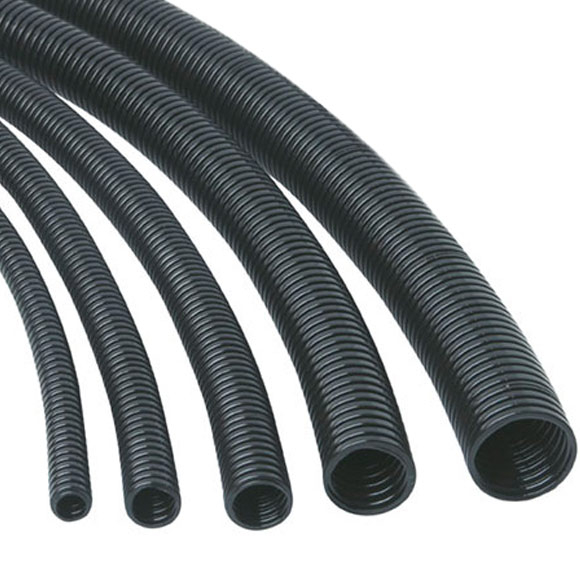

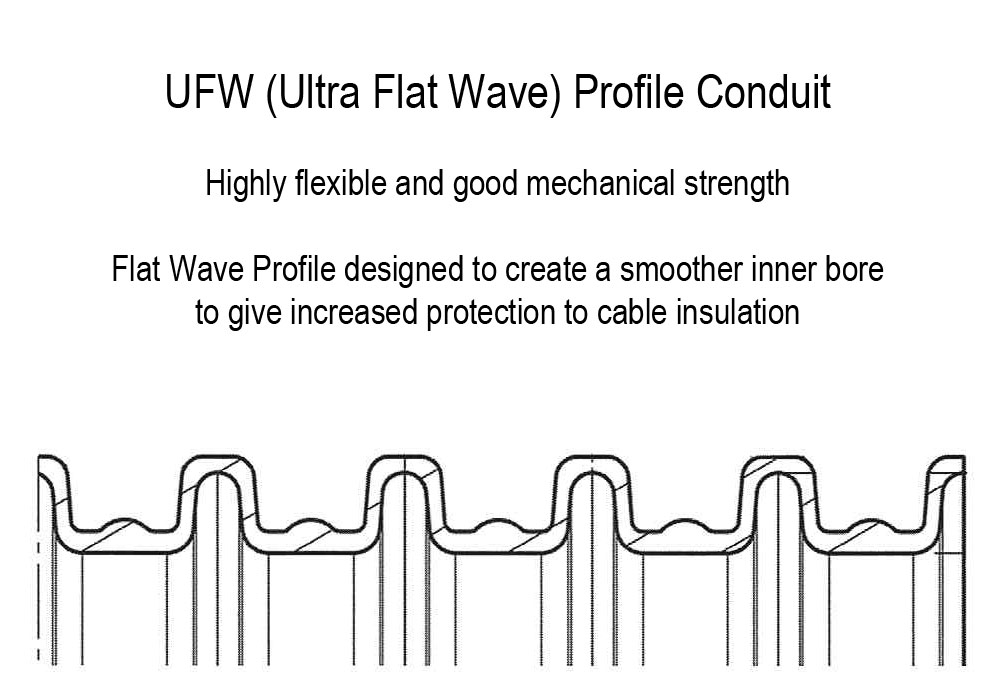

A standard gauge flexible conduit in 'Ultra Flat Wave' profile manufactured from PA6 material. Suitable for harness protection on a variety of vehicle applications, particularly where there is severe vibration. The inner profile of this conduit is much smoother than a normal profile tube and therefore does less damage to cable insulation.

This product is particularly durable and can provide high levels of protection against abrasion and/or impact damage.

Technical Specification

Colour: Black

Material: Polyamide 6 (Nylon)

Temperature Range: -40ºC to +120ºC (Short Periods +150ºC)

Approvals: TÜV, NFR, L.C.I.E., UL, ADR & GGVS

Burning Behaviour: acc. to FMVSS 302, < 100 mm/min., HB accord. to UL 94

UV Resistance: acc. to DIN EN ISO 8580

Other Features: Flame retardant and Halogen free this conduit can be used on petro-chemical road tanker applications to comply with ADR and UK Petroleum Regulations

Product Prices & Dimensions

Part No Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.
Qty Per Coil (m) List Price (exc VAT)
1229004 4.5 Unslit 4.7 x 7.3 100 £55.20 /100
1229007 7.5 Unslit 6.3 x 10.1 50 £86.70 /100
1229008 8.5 Unslit 8.2 x 12.0 50 £98.10 /100
1229010 10 Unslit 9.3 x 13.1 50 £93.10 /100
1229013 13 Unslit 12.0 x 15.9 50 £135.30 /100
1229017 17 Unslit 16.0 x 21.2 50 £196.80 /100
1229022 22 Unslit 19.9 x 25.7 50 £268.80 /100
1229023 23 Unsilt 22.2 x 28.6 50 £311.70 /100
1229026 26 Unslit 24.9 x 31.5 25 £389.70 /100
1229029 29 Unslit 28.4 x 34.6 25 £436.80 /100
1229037 37 Unslit 35.4 x 42.3 25 £632.90 /100
1229104 4.5 Slit 4.7 x 7.3 100 £55.20 /100
1229107 7.5 Slit 6.3 x 10.1 50 £86.70 /100
1229108 8.5 Slit 8.2 x 12.0 50 £98.10 /100
1229110 10 Slit 9.3 x 13.1 50 £93.10 /100
1229113 13 Slit 12.0 x 15.9 50 £135.30 /100
1229117 17 Slit 16.0 x 21.2 50 £196.80 /100
1229122 22 Slit 19.9 x 25.7 50 £268.80 /100
1229123 23 Slit 22.2 x 28.6 50 £311.70 /100
1229126 26 Slit 24.9 x 31.5 25 £389.70 /100
1229129 29 Slit 28.4 x 34.6 25 £436.80 /100
1229137 37 Slit 35.4 x 42.3 25m £632.90 /100
