PA6 Standard - Normal Profile

Description/Application:

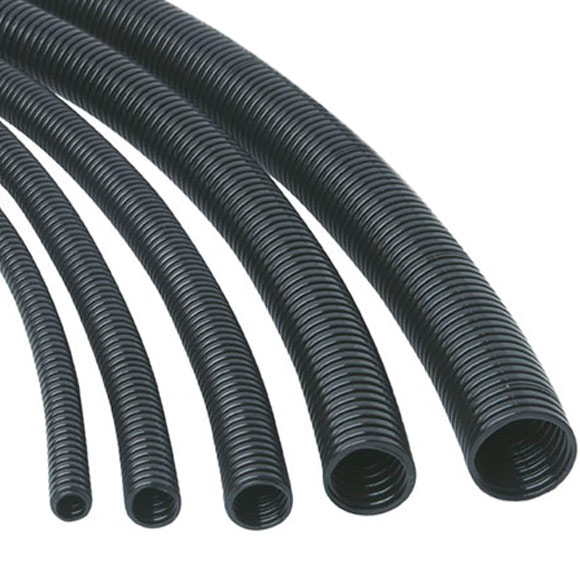

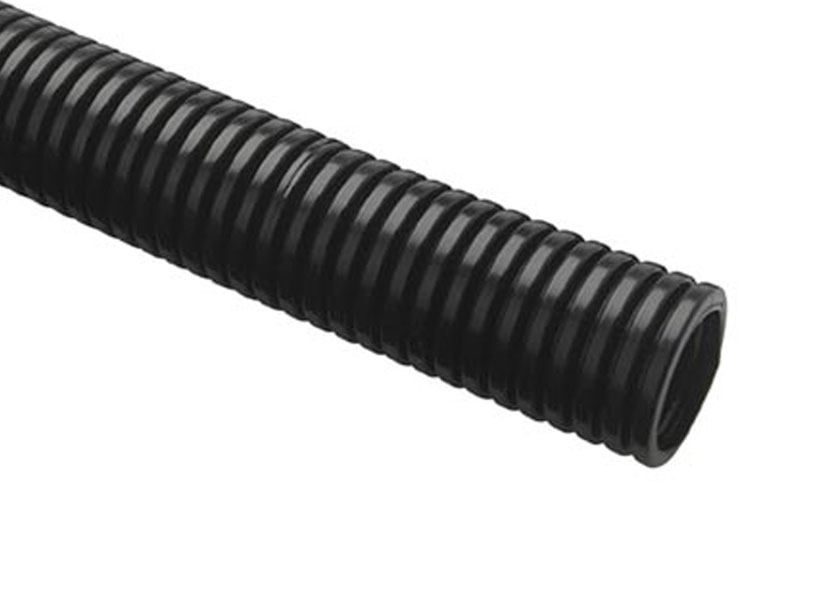

A standard gauge flexible conduit manufactured from PA6 material,

suitable for harness protection on a variety of vehicle applications.

This product is particularly durable and can provide high levels of

protection against abrasion and/or impact damage.

Technical Specification

Colour: Black

Material: Polyamide 6 (Nylon)

Temperature Range: -40ºC to +120ºC (Short Periods +150ºC)

Approvals: TÜV, NFR, L.C.I.E., UL, ADR & GGVS

Burning Behaviour: acc. to FMVSS 302, < 100 mm/min., HB accord. to UL 94

UV Resistance: acc. to DIN EN ISO 8580

Other Features: Flame retardant and Halogen free this conduit can be used on petro-chemical road tanker applications to comply with ADR and UK Petroleum Regulations

Part Number Description Nominal Size (NW) Type Dimensions (mm)
I.D. X O.D.		 Qty Per Coil (m)
1200073 NW03 Unslit PA6 Conduit Normal Profile Black 3 Unslit 2.8 x 5.1 200
1200068 NW4.5 Unslit PA6 Conduit Normal Profile Black 4.5 Unslit 5.0 x 7.1 100
1200070 NW7.5 Unslit PA6 Conduit Normal Profile Black 7.5 Unslit 6.7 x 10.0 50
1200089 NW8.5 Unslit PA6 Conduit Normal Profile Black 8.5 Unslit 8.4 x 11.7 50
1200100 NW10 Unslit PA6 Conduit Normal Profile Black 10 Unslit 9.9 x 13.0 50
1200135 NW13 Unslit PA6 Conduit Normal Profile Black 13 Unslit 12.7 x 15.8 50
1200143 NW14 Unslit PA6 Conduit Normal Profile Black 14 Unslit 14.2 x 18.5 50
1200178 NW17 Unslit PA6 Conduit Normal Profile Black 17 Unslit 16.6 x 21.2 50
1200224 NW22 Unslit PA6 Conduit Normal Profile Black 22 Unslit 21.3 x 25.4 50
1200232 NW23 Unslit PA6 Conduit Normal Profile Black 23 Unslit 23.2 x 28.3 50
1200267 NW26 Unslit PA6 Conduit Normal Profile Black 26 Unslit 25.8 x 31.2 25
1200291 NW29 Unslit PA6 Conduit Normal Profile Black 29 Unslit 29.0 x 34.5 25
1200372 NW37 Unslit PA6 Conduit Normal Profile Black 37 Unslit 36.0 x 42.4 25
1200500 NW50 Unslit PA6 Conduit Normal Profile Black 50 Unslit 47.7 x 54.0 25
1205030 NW03 Slit PA6 Conduit Normal Profile Black 3 Slit 2.8 x 5.1 200
1205045 NW4.5 Slit PA6 Conduit Normal Profile Black 4.5 Slit 5.0 x 7.1 100
1205072 NW7.5 Slit PA6 Conduit Normal Profile Black 7.5 Slit 6.7 x 10.0 50
1205080 NW8.5 Slit PA6 Conduit Normal Profile Black 8.5 Slit 8.4 x 11.7 50
1205102 NW10 Slit PA6 Conduit Normal Profile Black 10 Slit 9.9 x 13.0 50
1205137 NW13 Slit PA6 Conduit Normal Profile Black 13 Slit 12.7 x 15.8 50
1205145 NW14 Slit PA6 Conduit Normal Profile Black 14 Slit 14.2 x 18.5 50
1205170 NW17 Slit PA6 Conduit Normal Profile Black 17 Slit 16.6 x 21.2 50
1205226 NW22 Slit PA6 Conduit Normal Profile Black 22 Slit 21.3 x 25.4 50
1205234 NW23 Slit PA6 Conduit Normal Profile Black 23 Slit 23.2 x 28.3 50
1205269 NW26 Slit PA6 Conduit Normal Profile Black 26 Slit 25.8 x 31.2 25
1205290 NW29 Slit PA6 Conduit Normal Profile Black 29 Slit 29.0 x 34.5 25
1205374 NW37 Slit PA6 Conduit Normal Profile Black 37 Slit 36.0 x 42.4 25
1205501 NW50 Slit PA6 Conduit Normal Profile Black 50 Slit 47.7 x 54.0 25
