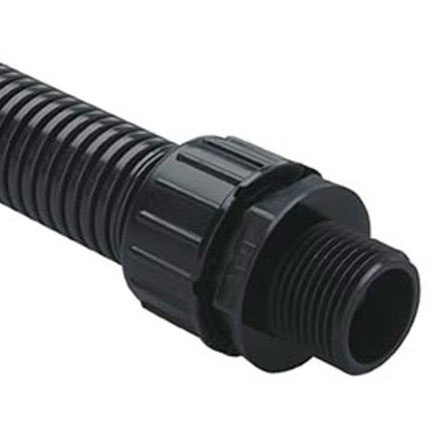

Threaded Three Part Straight Fitting |
|
|

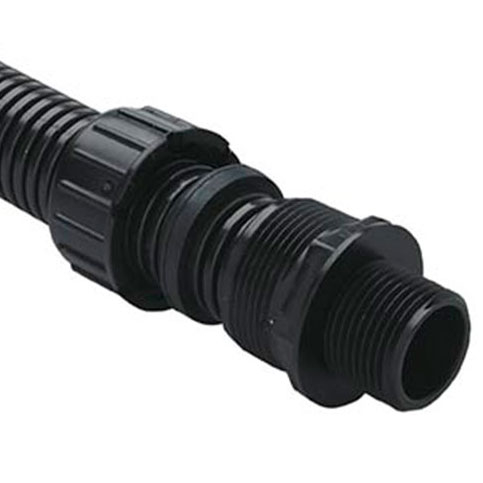

Description / Application: This three part fitting is easily assembled to the conduit without the need for special tools. The neoprene sealing ring achieves an IP67 sealing rating once compressed by the cap nut. Ideally suited for applications where a conduit run needs to be terminated into either a threaded entry or the knock out of a junction box. This fitting consists of a Cap Nut, Body & Sealing Ring, all available individually if required. Suitable for use with normal profile un-slit conduits only. Technical Specification / Features: Material: PA6 (Nylon), Sealing Rings - Neoprene Colour: Black Sealing Rating: Up to IP67 |
Product Prices & Dimensions
| Part No | Configuration Normal Profile Tube A - B - C |
List Price (exc VAT) |
|---|---|---|
| ABK10-M16 | NW10 Fitting with M16 x12mm Male Thread | £166.06 /100 |
| ABK10-M20 | NW10 Fitting with M20 x12mm Male Thread | £235.87 /100 |
| ABK10-PG09 | NW10 Fitting with PG9 x12mm Male Thread | £149.96 /100 |
| ABK10-PG11 | NW10 Fitting with PG11 x12mm Male Thread | £178.37 /100 |
| ABK13-M16 | NW13 Fitting with M16 x12mm Male Thread | £226.32 /100 |
| ABK13-M20 | NW13 Fitting with M20 x12mm Male Thread | £200.45 /100 |
| ABK13-PG09 | NW13 Fitting with PG9 x12mm Male Thread | £91.43 /100 |
| ABK13-PG11 | NW13 Fitting with PG11 x11mm Male Thread | £189.98 /100 |
| ABK17-M20 | NW17 Fitting with M20 x14.5mm Male Thread | £210.80 /100 |
| ABK17-PG16 | NW17 Fitting with PG16 x12mm Male Thread | £217.24 /100 |
| ABK22-M25 | NW22 Fitting with M25 x14mm Male Thread | £411.24 /100 |
| ABK29-M32 | NW29 Fitting with M32 x12mm Male Thread | £474.72 /100 |
| ABK29-PG29 | NW29 Fitting with PG29 x14mm Male Thread | £411.01 /100 |
| CN10 | NW10 Cap nut | £33.10 /100 |
| CN13 | NW13 Cap Nut | £36.67 /100 |
| CN17 | NW17 Cap Nut | £54.58 /100 |
| CN22 | NW22 Cap Nut | £179.67 /100 |
| CN29 | NW29 Cap Nut | £127.18 /100 |
| AB10-M16 | NW10 Adaptor Body M16 Thread | £131.99 /100 |
| AB10-M20 | NW10 Adaptor Body M20 Thread | £224.48 /100 |
| AB10-PG09 | NW10 Adaptor Body PG9 Thread | £111.09 /100 |
| AB10-PG11 | NW10 Adaptor Body PG11 Thread | £147.68 /100 |
| AB13-M16 | NW13 Adaptor Body M16 Thread | £171.83 /100 |
| AB13-M20 | NW13 Adaptor Body M20 Thread | £138.02 /100 |
| AB13-PG09 | NW13 Adaptor Body PG9 Thread | £108.79 /100 |
| AB13-PG11 | NW13 Adaptor Body PG11 Thread | £115.20 /100 |
| AB17-M20 | NW17 Adaptor Body M20 Thread | £108.92 /100 |
| AB17-PG16 | NW17 Adaptor Body PG16 Thread | £123.63 /100 |
| AB22-M25 | NW22 Adaptor Body M25 Thread | £231.84 /100 |
| AB22-PG21 | NW22 Adaptor Body PG21 Thread | £239.76 /100 |
| AB29-M32 | NW29 Adaptor Body M32 Thread | £330.98 /100 |
| AB29-PG29 | NW29 Adaptor Body PG29 Thread | £249.35 /100 |
| 8117101 | NW10 Sealing Ring | £43.71 /100 |
| 8117136 | NW13 Sealing Ring | £72.93 /100 |
| 8117179 | NW17 Sealing Ring | £96.36 /100 |
| 8117225 | NW22 Sealing Ring | £118.46 /100 |
| 8117292 | NW29 Sealing Ring | £182.22 /100 |
